Danfoss 83100563

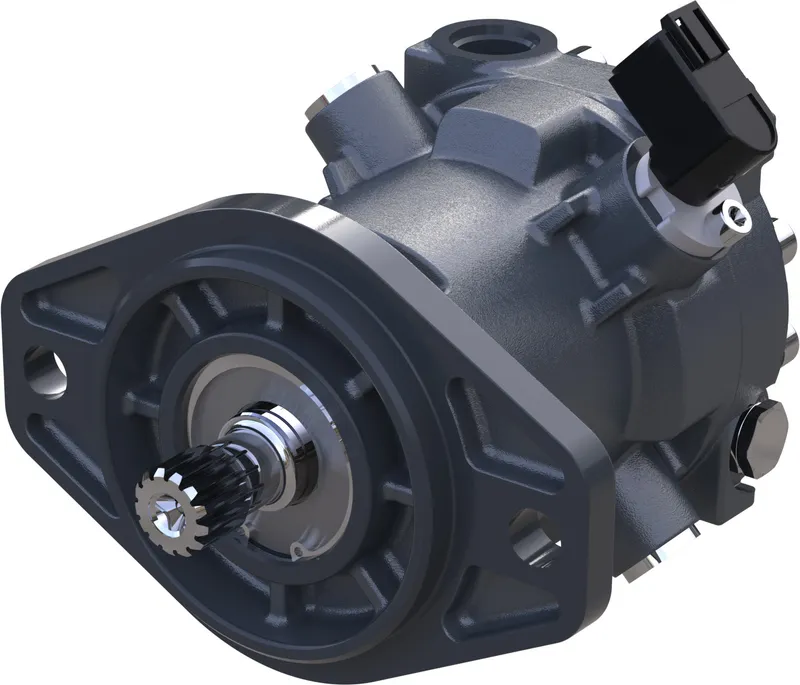

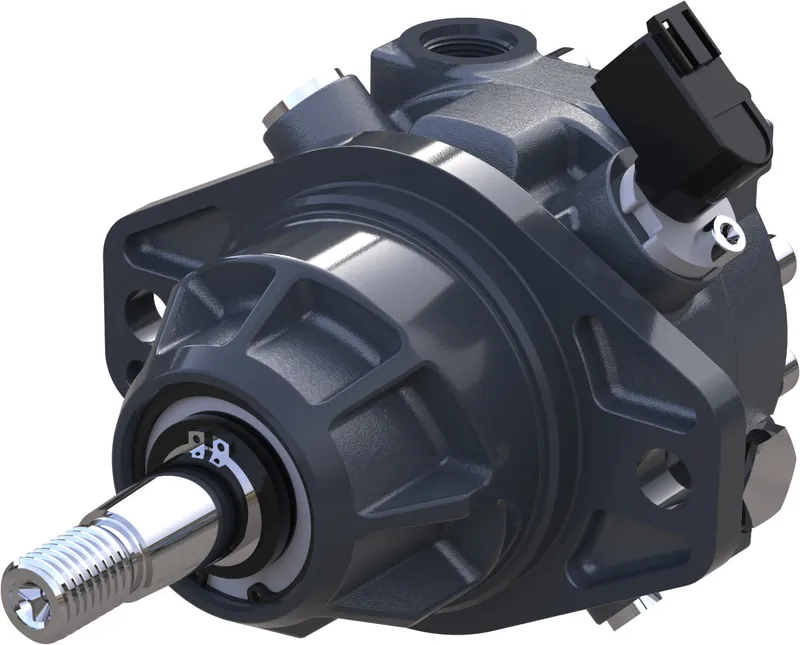

MOTOR-FIXED DISPL MP1M24

MPN: 83100563
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83100563?

Danfoss MOTOR-FIXED DISPL MP1M24, manufacturer part number 83100563. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	Series MP1
Product type	M - Motor
B: CONFIGURATION	Mounting Flange Configuration: ISO Flange
C: Displacement	Rotating group displacement: 24 cc/rev
D: Output Shaft	Motor Output Shaft, Spline, SAE B, 13T 16/32, w/o dust seal
E: System Port & valve	Inch O-ring Boss system Ports per ISO 11926-1, Anti-cavitation valve,Port B, 280 bar shock valve
K: SSNSR & Flange & Porting	SAE-B Flange, w/o Speed sensor. Case drain: Inch ORB port per ISO 11926-1, 3/4-16.
L: Settings	NONE
M: Special Hardware Features	24cc standard Cylinder block kit, standard valve plate.
N: Paint and Nametag	Black Paint and Danfoss Nametag Format A
Proposition 65	Cancer and Reproductive Harm
