Danfoss 83100036

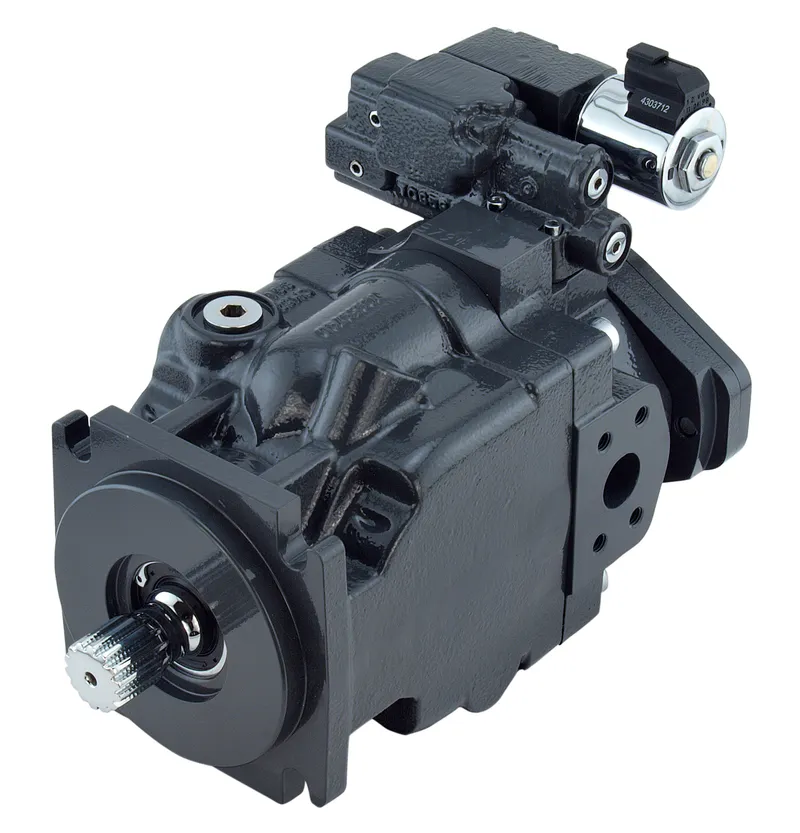

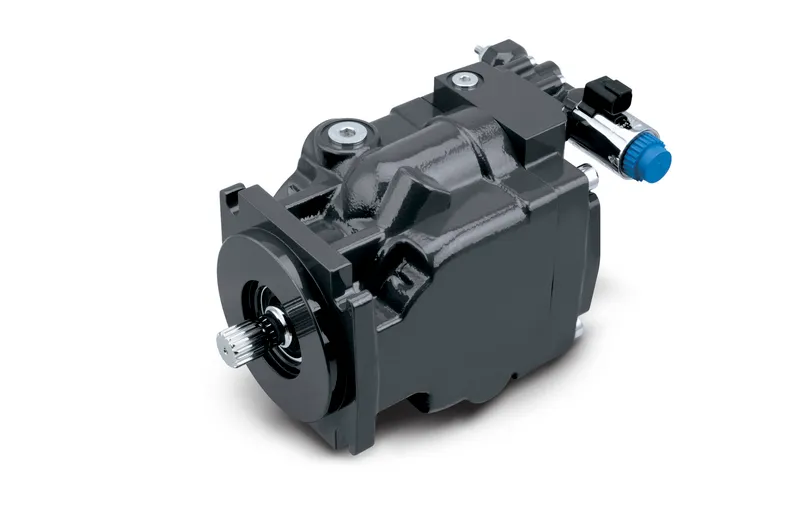

PUMP-VAR DISPL, CW S45PVOC_J

MPN: 83100036
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83100036?

Danfoss PUMP-VAR DISPL, CW S45PVOC_J, manufacturer part number 83100036. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	J frame axial piston open circuit pump
Rotation	Clockwise rotation
Displacement and load life	51 cc/rev - 310 bar maximum continuous rated pressure
Control type	Electronic torque limiting, pressure compensated, solenoid-right, 24VDC normally-closed Deutsch [PC pressure range: 100-280 bar, LSpressure range: 10-40 bar]
Pressure compensator setting	240 bar [3480 psi]
Load sensing setting	30 bar [435 psi]
Torque limiter setting	Not applicable
Choke orifice	None
Gain orifice	Standard gain orifice with 0.8 mm ETL LS signal line orifice
Shaft, auxiliary flange, and endcap	1.25 inch straight key shaft, no auxiliary, radial, inlet: 4-bolt split flange (2 inch port, 0.5 inch threads), outlet: 4-bolt split flange (1 inch port, 0.375 inch threads), with displacement limiter
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports, angle sensor right side
Displacement limiter	Adjustable displacement limiter set to max flow
Special hardware	Special hardware - angle sensor
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm

83100036: frequently asked questions

When can 83100036 be shipped?

83100036 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83100036 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83100036 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83100036, subject to availability and destination.
