Danfoss 83096969

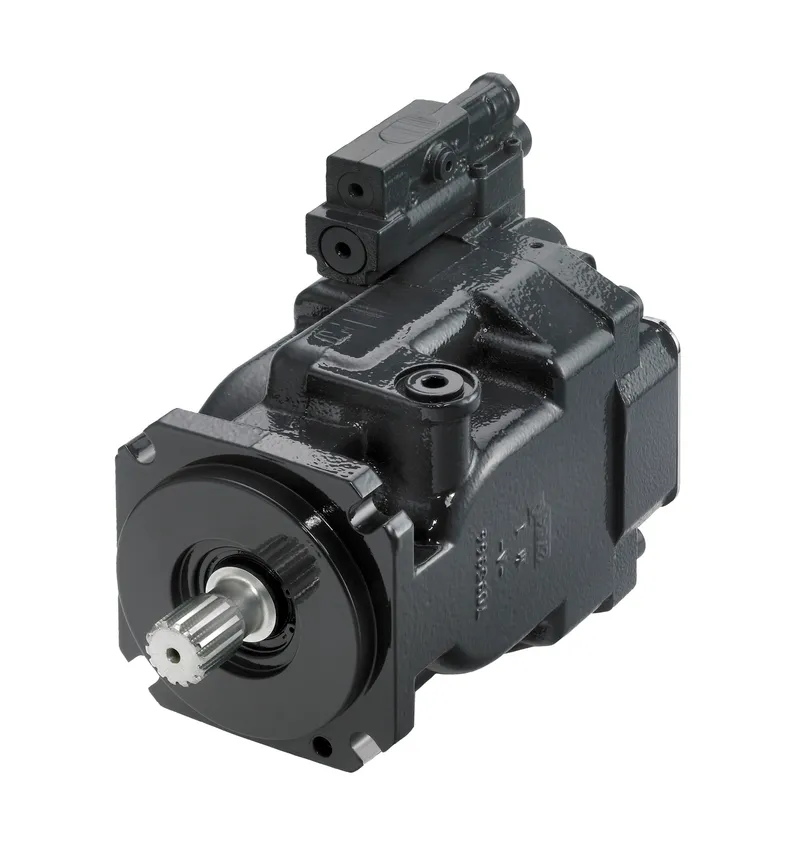

PUMP-VAR DISPL, CW S45PVOC_F

MPN: 83096969
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83096969?

Danfoss PUMP-VAR DISPL, CW S45PVOC_F, manufacturer part number 83096969. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	F frame axial piston open circuit pump
Rotation	Clockwise rotation
Displacement and load life	74 cc/rev - 310 bar maximum continuous rated pressure
Control type	Pressure compensated / load sensing, with bleed orifice (0.3mm equivalent) [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	170 bar [2465 psi]
Load sensing setting	21 bar [305 psi]
Torque limiter setting	Not applicable
Choke orifice	None
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	14 tooth 12/24 pitch shaft, no auxiliary, axial, inlet: 4-bolt split flange (2 inch port, 0.5 inch threads), outlet: 4-bolt splitflange (1 inch port, 0.375 inch threads)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports
Displacement limiter	None
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm
