Danfoss 83096761

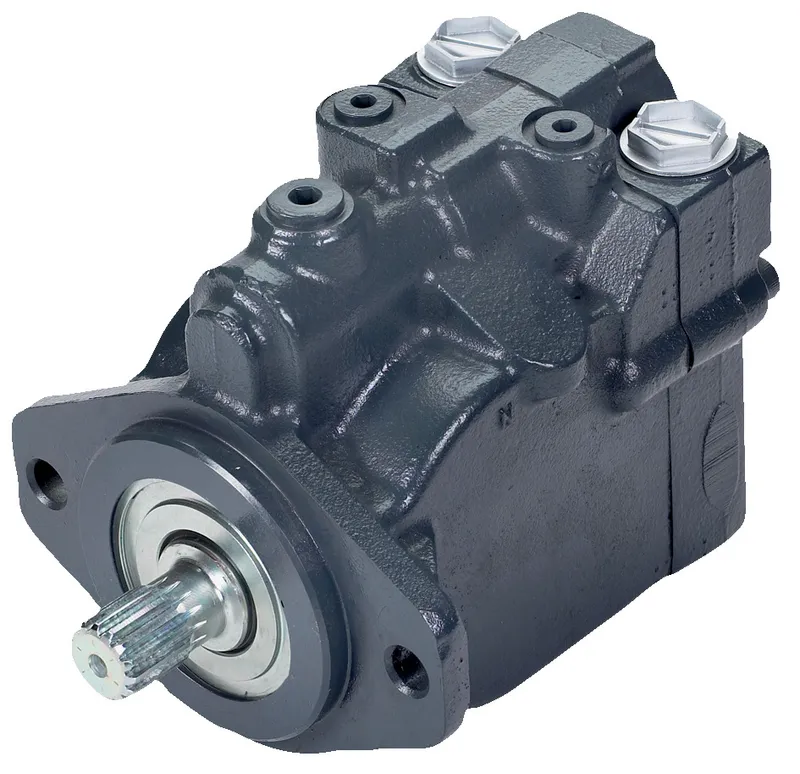

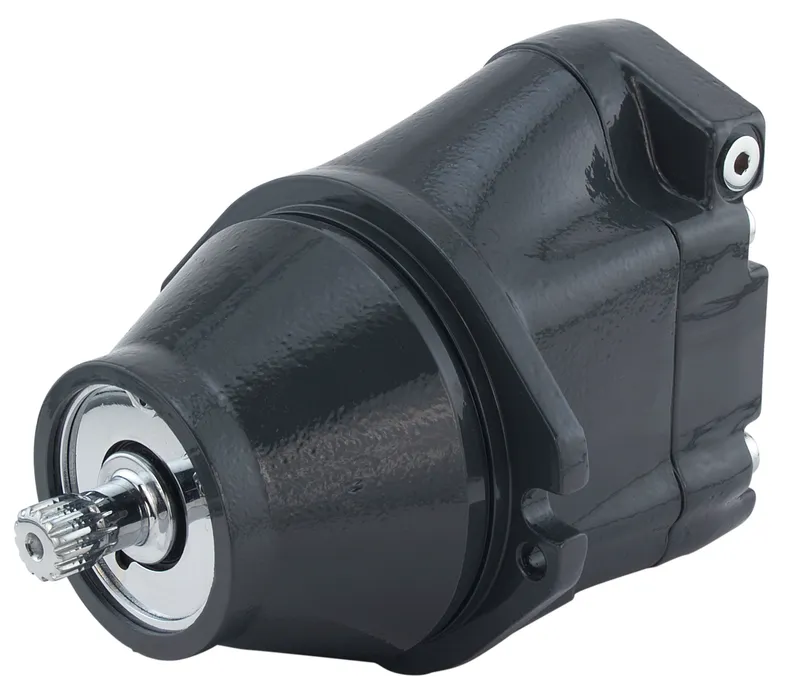

MOTOR-VARIABLE CARTRIDGE K

MPN: 83096761
Category: Variable displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83096761?

Danfoss MOTOR-VARIABLE CARTRIDGE K, manufacturer part number 83096761. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

VARIABLE MOTOR PRODUCT	K Frame
B: CONFIGURATION	MOTOR, VARIABLE DISPLACEMENT, CARTRIDGE MOTOR FLANGE
C: BASE DISPL / SPEED RING	38cc/REVOLUTION (2.32 CU. IN.) - WITH CYLINDER BLOCK SPEED RING
D: SHAFT	15T 16/32 OUTPUT/NONE
E: END CAP/LOOP FL/MIN ANGLE A	TWIN RADIAL, 1 1/16-12 - NO LOOP FLUSHING -NON ADJUSTABLE MINIMUM ANGLE ADJUSTMENT
F: MINIMUM DISPLACEMENT SETTI	6.5 DEG
G: CONTROL TYPE	HYDRAULIC SINGLE LINE
H: SUPPLY ORIFICE	NONE
J: DRAIN ORIFICE	NONE
K: SPD SNSG/MAX ANGLE ADJ	SPEED SENSOR, 4 PINWTPAK, BATTERY POWER, NON-DIRECTIONAL
L: MAXIMUM DISPLACEMENT SETTIN	18 DEG
M: SPECIAL HARDWARE	Special hardware - None
N: SPECIAL FEATURES	Standard
Proposition 65	Cancer and Reproductive Harm
