Danfoss 83096163

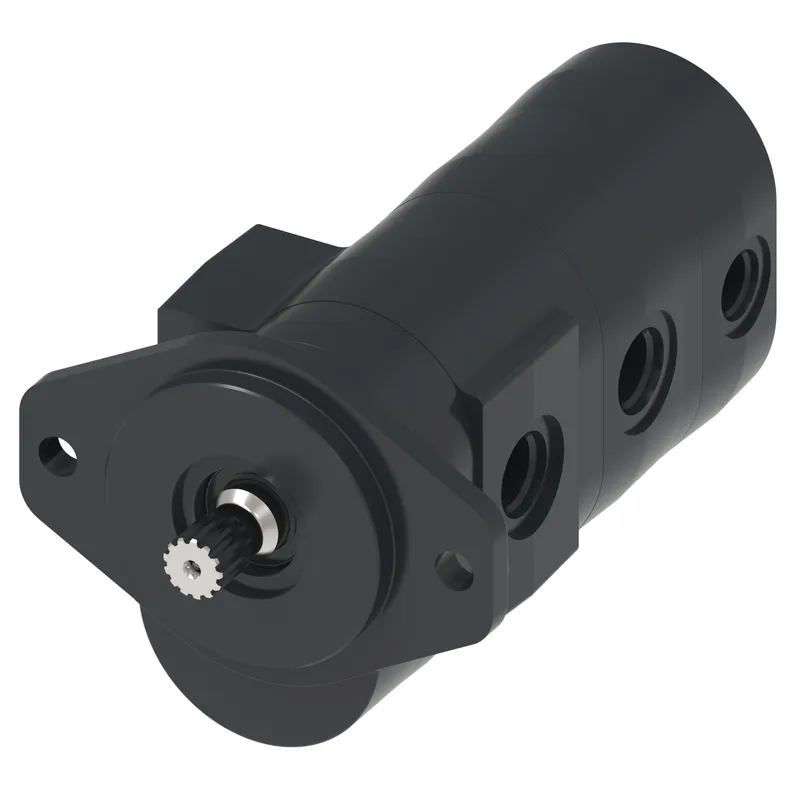

GEAR PUMP-RH, TRIPLE DISPL

MPN: 83096163
Category: Rugid cast iron gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83096163?

Danfoss GEAR PUMP-RH, TRIPLE DISPL, manufacturer part number 83096163. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product	D-series left-hand triple
Front displacement and input drive	25.4cc / splined shaft: SAE 13 tooth spline x 1.62 inch extension
Mounting flange	SAE B 2 bolt
Porting after first section	Bearing plate, 1 5/16-12 ORB inlet, 1 1/16-12 ORB outlet
Second section displacement	17 cc [1.04 CIR]
Porting prior to rear cover	Bearing plate, 1 5/16-12 ORB inlet, 1 1/16-12 ORB outlet
Rear displacement	12.6cc [0.77 CIR]
Rear cover and porting	Cover, no inlet, 7/8-14 ORB outlet
Control setting	No controls
Relief valve pressure	No relief valve
Screws	BG: Screws
Nameplate	Elgin part number on nameplate
Special features	Standard black paint
Proposition 65	Cancer and Reproductive Harm
