Danfoss 83096077

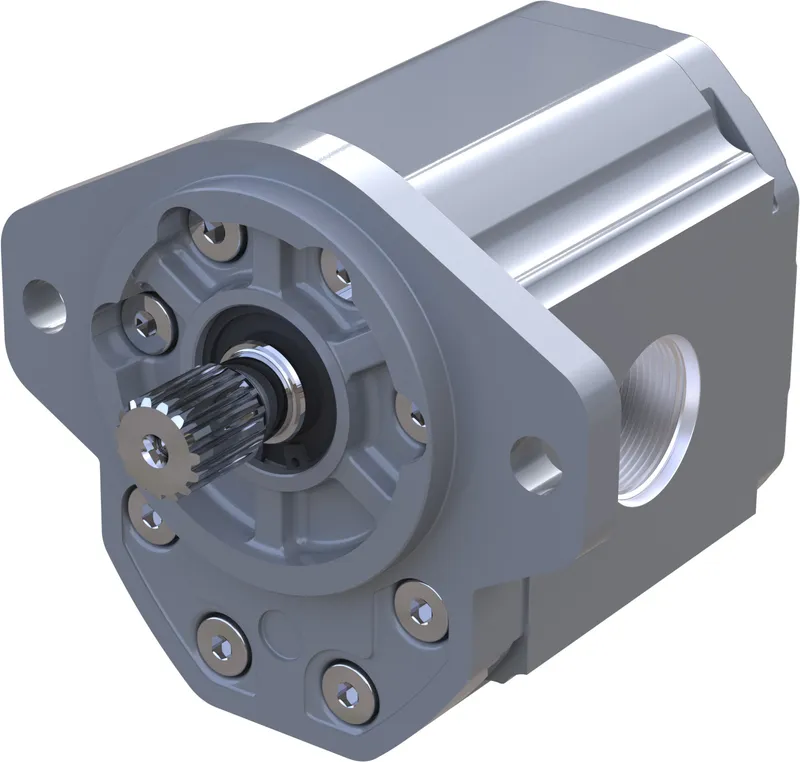

GEAR PUMP GR3 FIXED DISPL

MPN: 83096077
Category: GearMe single stage

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83096077?

Danfoss GEAR PUMP GR3 FIXED DISPL, manufacturer part number 83096077. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

B: Displacement	Displacement 22 cc
C: Rotation	Product with clockwise rotation
D: Project version	Standard Version of Project
E: Mounting flange	Flange with pilot D.127 and 4 holes for bolts
F: Drive gear	Splined SAE J498-14T-12/24-Dp Class 1FIT - for flange SAE 'C'
G: Rear cover	Standard cover for pump
H: Inlet size	23,5x1-5/16-12UN
I: Outlet size	20x1-1/16-12UN
J: Ports position	Standard from catalogue
K: Seals	Standard seal
L: Screws	Screws standard
M: Valve setting	without setting
N: Mark type	Standard Marking
O-Ring, Inside Diameter	Slash
O: Mark position	Position Marking standard
Proposition 65	Cancer and Reproductive Harm
Single Stage Family	Gr3 Pump
Slash separator	Slash

83096077: frequently asked questions

When can 83096077 be shipped?

83096077 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83096077 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83096077 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83096077, subject to availability and destination.
