Danfoss 83091425

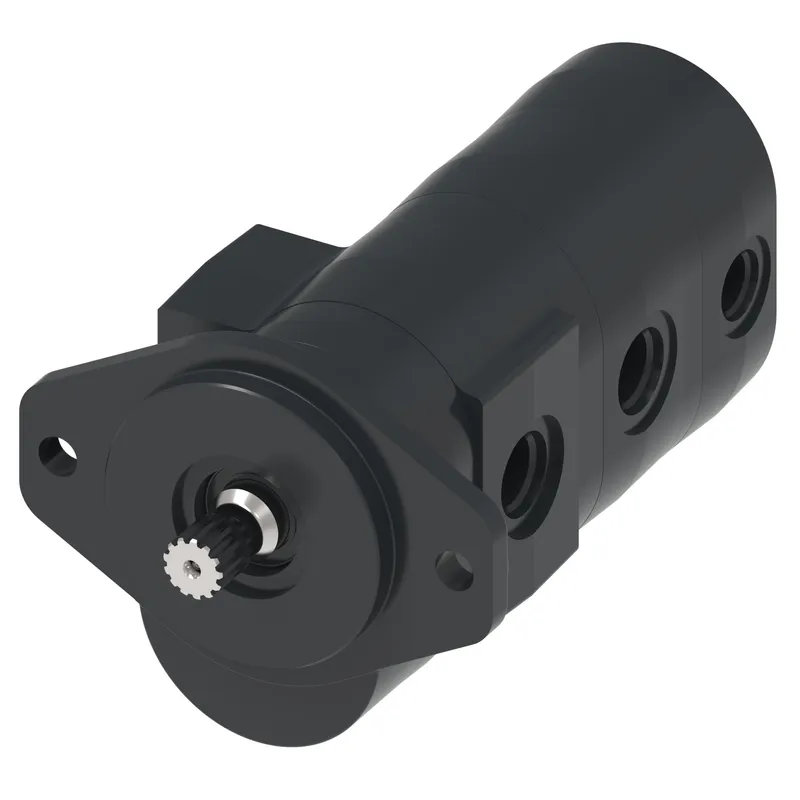

GEAR PUMP-RH, TRIPLE DISPL

MPN: 83091425
Category: Rugid cast iron gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83091425?

Danfoss GEAR PUMP-RH, TRIPLE DISPL, manufacturer part number 83091425. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product	D-series right-hand triple
Front displacement and input drive	31.8cc / splined shaft: SAE 15 tooth spline x 1.81 inch extension
Mounting flange	SAE B 2 bolt, for 1 inch shaft (BxxSV, BxxST, BxxTA, BxxPZ, BxxSQ)
Porting after first section	Bearing plate, 1 5/8-12 ORB inlet, 1 5/16-12 ORB outlet, note: this is for an XD configuration! Must have S00X- option
Second section displacement	25.4 cc [1.55 CIR], for AS section 2 of an XD pump for forward outlet flow
Porting prior to rear cover	Bearing plate, no ports, XDD
Rear displacement	36.1cc [2.20 CIR]
Rear cover and porting	Cover, 1 5/16-12 ORB inlet, 1 1/16-12 ORB outlet
Control setting	No controls
Relief valve pressure	No relief valve
Screws	BP: Screws
Nameplate	Standard nameplate
Special features	Standard black paint
Proposition 65	Cancer and Reproductive Harm

83091425: frequently asked questions

When can 83091425 be shipped?

83091425 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83091425 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83091425 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83091425, subject to availability and destination.
