Danfoss 83087124

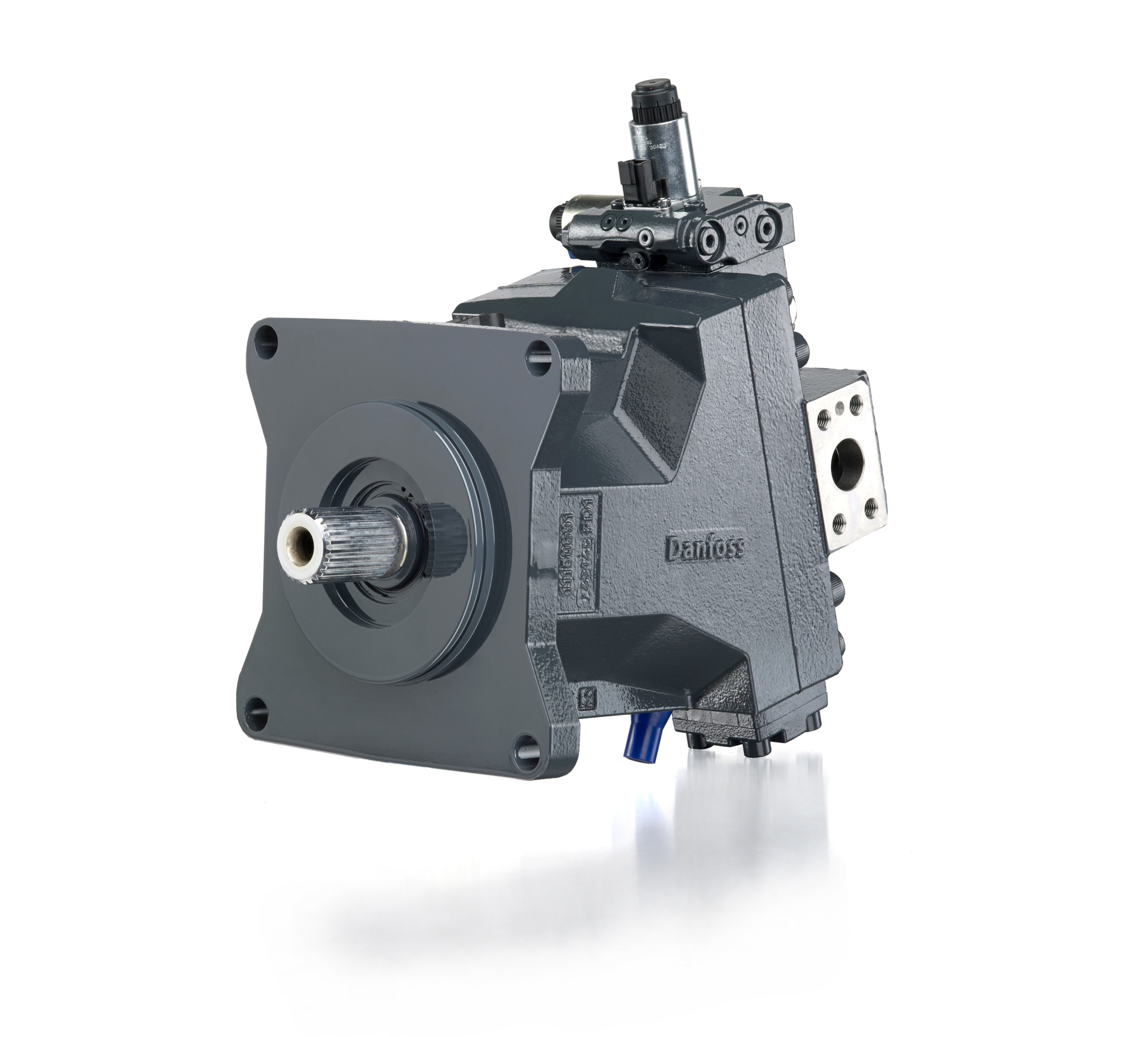

MOTOR-VAR-DISPL H1B210

MPN: 83087124
Category: Variable displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83087124?

Danfoss MOTOR-VAR-DISPL H1B210, manufacturer part number 83087124. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Bent-axis variable motor
Frame Size	Displacement 210 cc/rev at maximum angle
Revision	Product version A of H1B series
Configuration of ports	Port configuration: inch according to ISO 11926-1
Control	Electric proportional 24V, Deutsch DT 04-2P connector, de-energized = maximum displacement, with pressure compensator override
Pressure compensator override and brake pressure defeat	With pressure compensator override and without brake pressure defeat, use with “D*” controls
Threshold setting	Not applicable
Orifices	0.8mm diameter orifices M4 and M5
Endcap type and ports	Endcap for proportional controls, side ports ISO 6162 Type 1 (metric), use with “L” and “D” controls
Flange and housing	SAE-flange motor housing (ISO 3019 / 1), with speed sensor port
Shaft and speed ring	W50x2x30x24x9g DIN 5480, with speed ring
Sensor	Speed sensor ready (plugged)
Loop flushing shuttle system	No loop flushing function
Loop flushing relief valve	No loop flushing function
Special hardware features	Standard hardware feature proportional standard
Minimum displacement	130 cc/rev minimum displacement setting
Maximum displacement	100% maximum displacement, non adjustable, use with "L", "D", "M" &"K"
Pressure compensator override setting	Pressure compensator override pressure setting 240 bar, standard setting for “P*” controls
Paint and nametag	Danfoss nametag
Proposition 65	Cancer and Reproductive Harm
