Danfoss 83086523

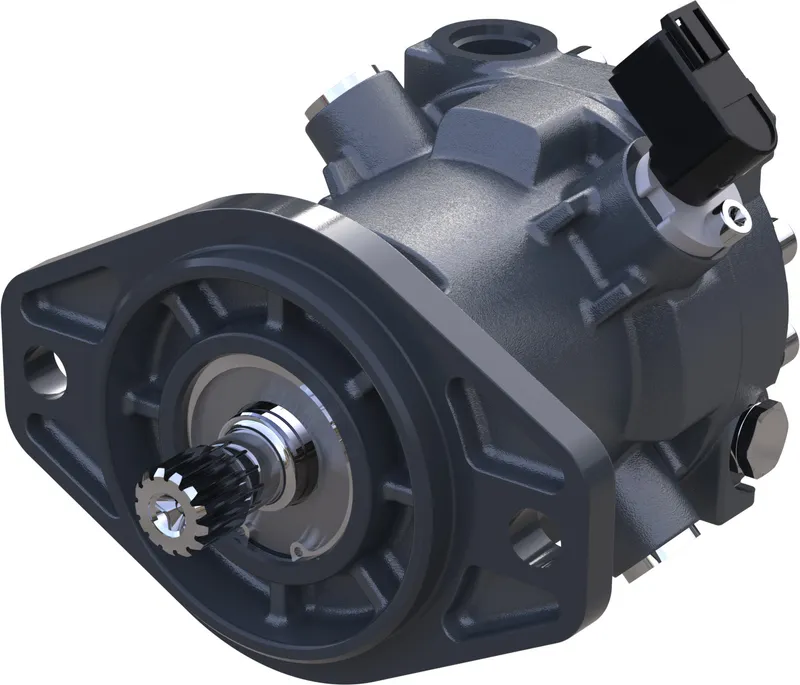

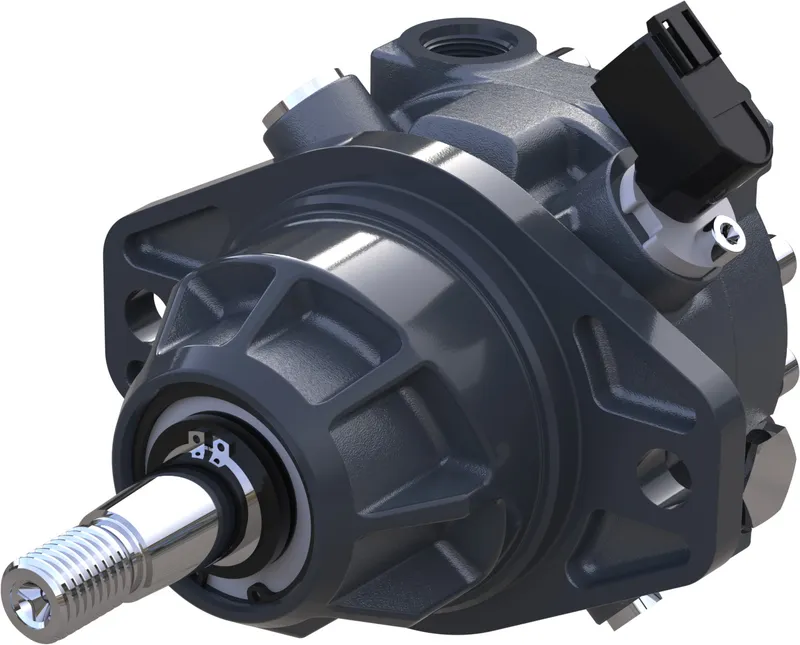

MOTOR-FIXED DISPL MP1M24

MPN: 83086523
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83086523?

Danfoss MOTOR-FIXED DISPL MP1M24, manufacturer part number 83086523. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	Series MP1
Product type	M - Motor
B: CONFIGURATION	Mounting Flange Configuration: ISO Flange
C: Displacement	Rotating group displacement: 24 cc/rev
D: Output Shaft	Motor Output Shaft: Straight Keyed (long), 22.23mm (7/8in) outer diameter, w/o dust seal (shipped without key)
E: System Port & valve	Inch O-ring Boss system Ports per ISO 11926-1, with gauge ports
K: SSNSR & Flange & Porting	SAE-B Flange, with Speed sensor 4.5-8V & guard. Case drain: Inch ORBport per ISO 11926-1, 3/4-16.
L: Settings	NONE
M: Special Hardware Features	24cc standard Cylinder block kit, standard valve plate.
N: Paint and Nametag	Paint None and Danfoss Nametag Format A
Proposition 65	Cancer and Reproductive Harm
