Danfoss 83083329

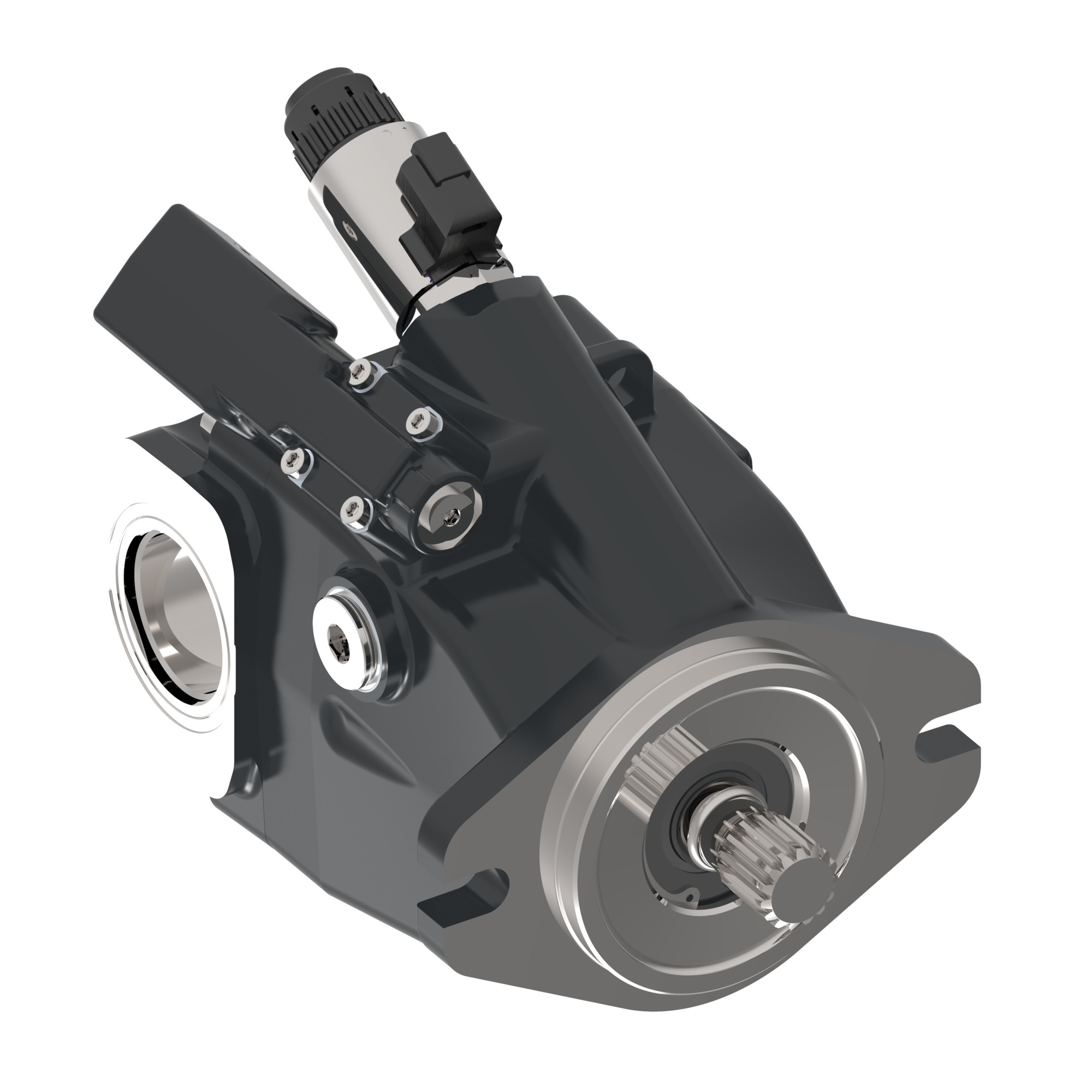

PUMP-VAR DISPL, CCW S45PVOC_K2

MPN: 83083329
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 83083329?

Danfoss PUMP-VAR DISPL, CCW S45PVOC_K2, manufacturer part number 83083329. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	K2 frame axial piston open circuit pump
Rotation	Counter-clockwise rotation
Displacement and load life	45 cc/rev - 260 bar maximum continuous rated pressure
Control type	Pressure compensated / load sensing, with bleed orifice (0.3mm equivalent) [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	250 bar [3625 psi]
Load sensing setting	20 bar [290 psi]
Torque limiter setting	Not applicable
Choke orifice	None
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	15 tooth 16/32 pitch shaft, no auxiliary, radial, inlet: 4-bolt split flange (1.5 inch port, M12 thread), outlet: 4-bolt splitflange (1 inch port, M10 thread)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-B 2-bolt flange, SAE O-ring ports
Displacement limiter	None
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm
