Danfoss 83082679

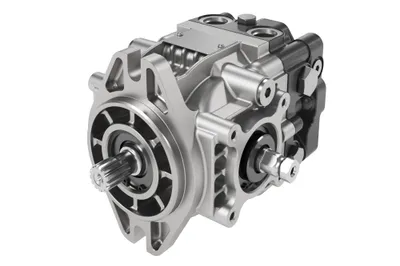

PUMP-VAR-DISPL CW 90PV100

MPN: 83082679
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83082679?

Danfoss PUMP-VAR-DISPL CW 90PV100, manufacturer part number 83082679. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: DISPLACEMENT LIMITATION	Limitation Both Sides
G: ENDCAP PORTS	twin ports
H: CHARGING SYSTEM	26 cc/rev
J: AUXILARY MOUNTING PAD	NO AUXILARY MOUNTING PAD
J: AUXILIARY MOUNTING PAD	NO AUXILARY MOUNTING PAD
K: CHARGE PRESSURE SETTING	24 bar
L: INPUT SHAFT	13T 8/16 Pitch
M: CONTROLS	ms-connector, standard porting, dual coil ( 14 - 85 mA)
N: FILTRATION	pressure integral (long filter)
P: HIGH PRESSURE REGULATION	Port A & B: low overshoot PL, up to 450 bar settings
Proposition 65	Cancer and Reproductive Harm
SERIES 90 PUMP TYPE	Series 90 100cc/rev, clockwise rotation
T: CONTROL ORIFICES	EDC 1 & 3, EFPC (P) 0,81 (TA) 1,3* (TB) 1,3* (A) none (B) none
W: SPECIAL HARDWARE FEATURES	CP15 +0.5 VALVE PLATE
Y: HIGH PRESSURE SETTING A	350 Bar
Z: HIGH PRESSURE SETTING B	350 Bar
