Danfoss 83081703

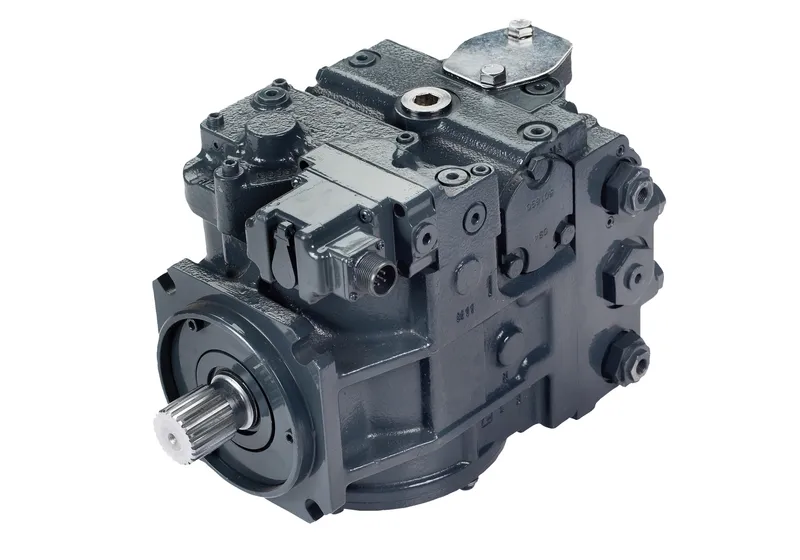

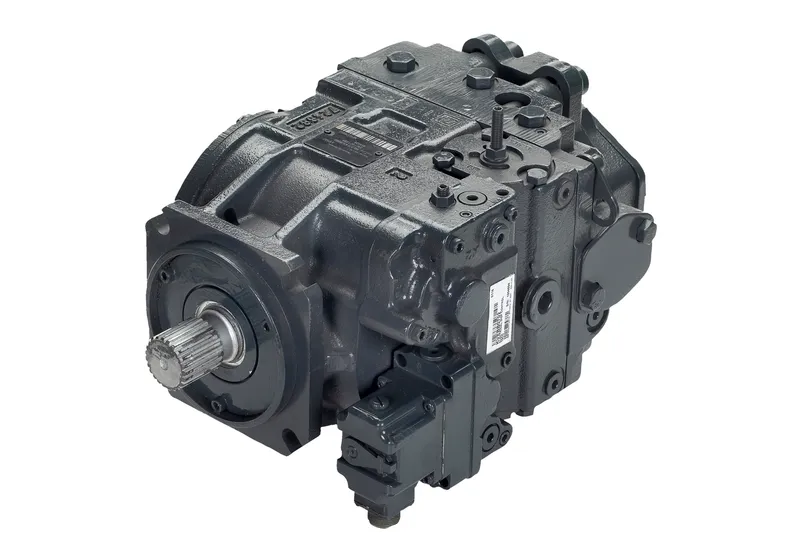

PUMP-VAR DISPL, CCW 90PV075

MPN: 83081703
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83081703?

Danfoss PUMP-VAR DISPL, CCW 90PV075, manufacturer part number 83081703. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: DISPLACEMENT LIMITATION	No Limiters
G: END CAP PORTS	side ports
H: CHARGE PUMP	17 cc/rev
J: AUXILIARY MOUNTING PAD	SAE-B with 13 teeth coupling
K: CHARGE PRESSURE SETTING	24 bar
K: CHARGE PRS RELIEF	24 bar
L: SHAFT OPTIONS	splined shaft , 23 teeth, pitch = 16 / 32
M: CONTROL	standard porting, 6 - 18 BAR (55 - 264 PSI)
N: FILTRATION	pressure integral (long filter)
P: HIGH PRESSURE REGULATION	Port A & B: fast response PL, up to 450 bar settings
Proposition 65	Cancer and Reproductive Harm
Series 90 Displacement	75 Cubic Centimeters per Revolution
Series 90 Product Line	Series 90
Series 90 Rotation	Counter-clockwise (Left hand) Rotation
T: CONTROL ORIFICES	MDC (P) 0,81 (TA) none* (TB) none* (A) none (B) none
W: SPECIAL HARDWARE FEATURES	CP15 +0.5 VALVE PLATE
Y: HIGH PRESSURE SETTING A	Port A = 380 Bar / 5510 PSI
Y: HIGH PRS SETTING PORT A	Port A = 380 Bar / 5510 PSI
Z: HIGH PRESSURE SETTING B	Port B = 380 Bar / 5510 PSI
Z: HIGH PRS SETTING PORT B	Port B = 380 Bar / 5510 PSI
