Danfoss 83079864

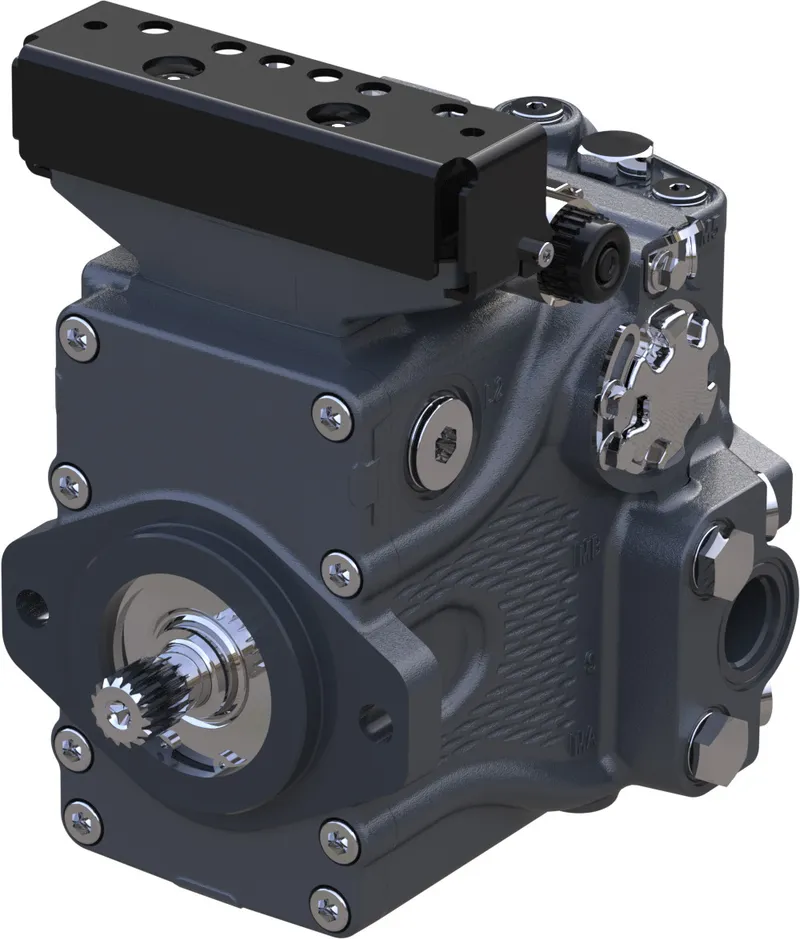

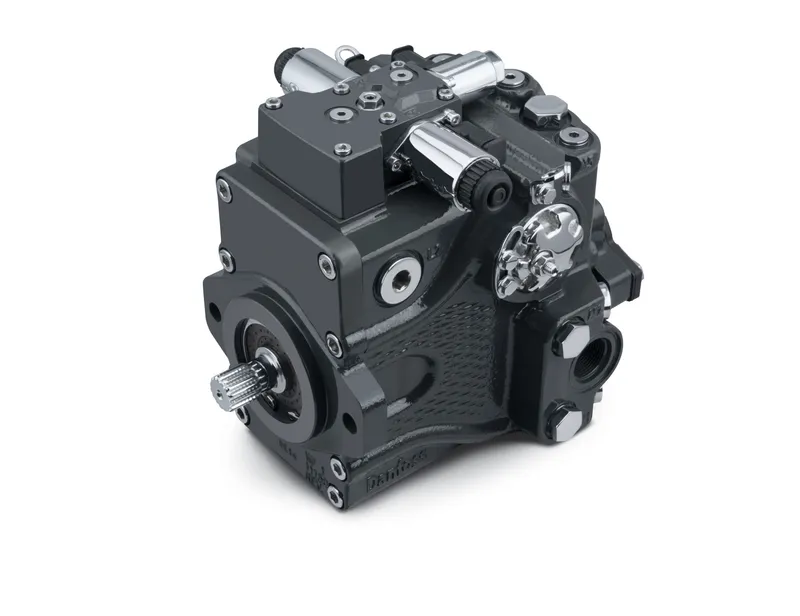

PUMP-VAR DISPL MP1P45R

MPN: 83079864
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83079864?

Danfoss PUMP-VAR DISPL MP1P45R, manufacturer part number 83079864. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	MP1 - Series
Product type	Variable pump
A: DISPLACEMENT & ROTATION	45 cc/rev max/variable displacement, clockwise
B: PRODUCT VERSION & UNIT	Product version A, metric
C: AC & INCHING	Automotive control, none
D: CONTROL	Non-feedback proportional electric, 12V, Deutsch DT04-2P connector, manual override
F: ORIFICES	Pressure = none, A+B = 1.0mm, TA+TB = none
H: MOUNTING FLANGE	SAE-B flange
J: INPUT SHAFT	15 tooth 16/32
T: FILTRATION	Filtration, suction
K: CHG PMP AND AUX PAD	9cc/rev charge pump, 9 tooth A pad, metric
E: DISPLACMENT LIMITATION	No displacement limiters, nested servo spring, controls forward neutral reverse, non-feedback proportional electric, non-feedbackproportional hydraulic, automotive control
M: HIGH PRESSURE SETT SIDE A	High pressure setting A side, 345 bar
N: HIGH PRESSURE SETT SIDE B	High pressure setting B side, 345 bar
Z: POR SETTING	POR setting, none
L: LOOP FLUSHING	Loop flushing, none
V: CHARGE RELIEF PRESSURE SETT	24 bar charge pressure relief setting
G: PORTING TYPE	System ports split flange per ISO 6162-2, other ports O-ring boss metric per ISO 6149-1
W: SPECIAL HARDWARE FEATURES	Special hardware, non-feedback proportional electric, 45cc, clockwise
X: PAINT AND NAMETAG	Black paint, standard nametag, layout A
Y: SETTINGS	Settings, none
Proposition 65	Cancer and Reproductive Harm
