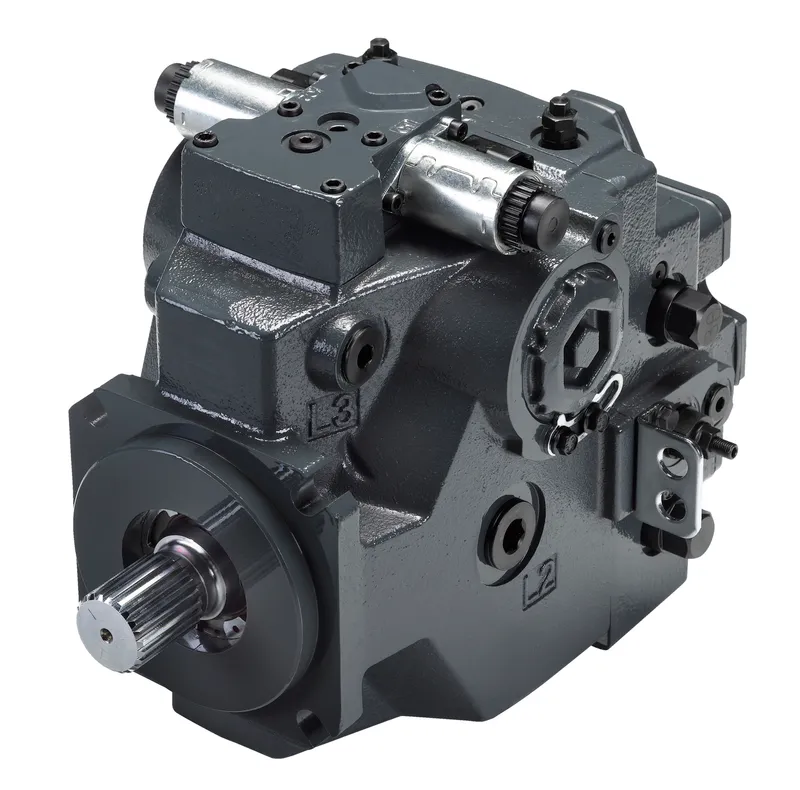

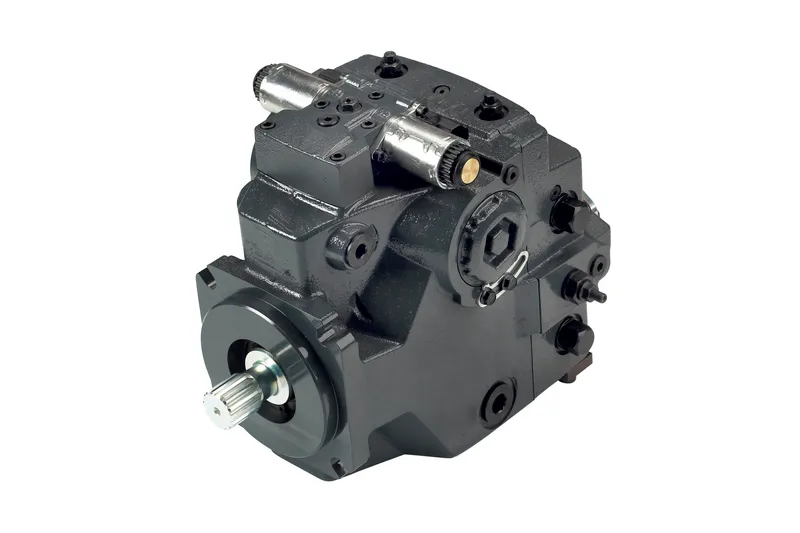

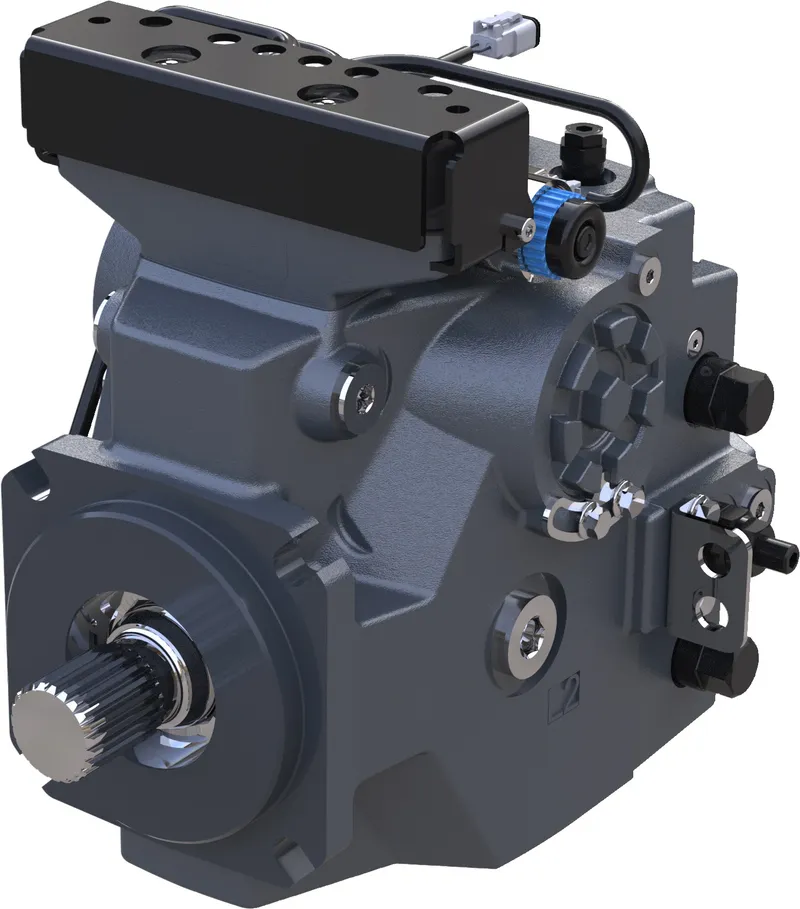

Danfoss 83073379

PUMP-VAR DISPL CCW H1PV078

MPN: 83073379
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83073379?

Danfoss PUMP-VAR DISPL CCW H1PV078, manufacturer part number 83073379. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	78cc/rev max/variable displacement
Rotation	Left hand - counterclockwise
Product version	Product version B
Configuration of ports	ANSI O-ring boss port configuration
Control	Manual displacement control
Orifices	P = none, A+B = 1.3mm, TA+TB = none
Displacement limitation	No limiters electrical displacement control/forward neutral reverse control
Endcap type	Twin port, code 62 metric 4 bolt flange, suction filter
Mounting flange	SAE C 4 bolt flange
Input shaft	21 tooth, 16/32
Auxiliary pad	14 tooth, C pad
Protection type side A	Pressure limiter, high pressure relief valve
High pressure setting side A	420 bar
Protection type side B	High pressure relief valve + pressure limiter
High pressure setting side B	420 bar
Charge pump	17cc/rev
Filtration	Suction filtration
Charge relief pressure setting	24 bar charge pressure relief valve
Special hardware features	Manual displacement control valve plate, with handle
Paint and nametag	Black paint, Danfoss tag A
Settings	Manual displacement control standard handle orientation
Proposition 65	Cancer and Reproductive Harm
