Danfoss 83072244

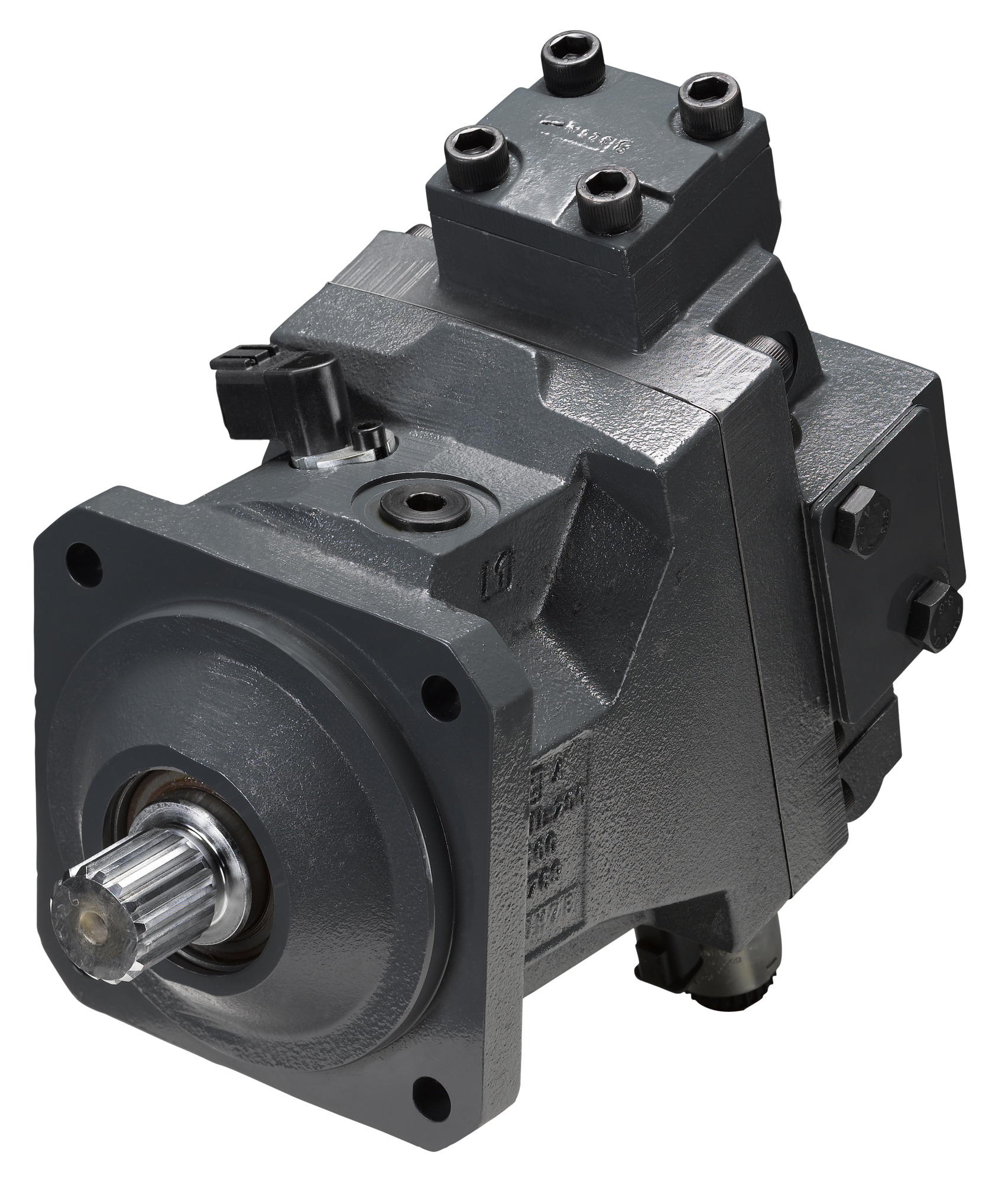

MOTOR-VAR-DISPL H1B080

MPN: 83072244
Category: Variable displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83072244?

Danfoss MOTOR-VAR-DISPL H1B080, manufacturer part number 83072244. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Bent-axis variable motor
Frame Size	Displacement 80 cc/rev at maximum angle
Revision	Product version A of H1B series
Configuration of ports	Port configuration: inch according to ISO 11926-1
Control	Electric proportional 24V, Deutsch DT 04-2P, de-energized = maximum displacement, no pressure compensator override
Pressure compensator override and brake pressure defeat	Without pressure compensator override and without brake pressure defeat, use with “L*” controls
Threshold setting	Not applicable
Orifices	1.2mm diameter orifices M4 and M5
Endcap type and ports	Endcap for proportional controls, side ports ISO 6162 Type 1 (metric), use with “L” and “D” controls
Flange and housing	Cartridge-flange motor housing, no speed sensor port
Shaft and speed ring	W40x2x30x18x9g DIN 5480, no speed ring
Sensor	No speed sensor
Loop flushing shuttle system	Loop flushing, 6.5 bar shuttle shift pressure
Loop flushing relief valve	10 l/min, non adjustable, 16 bar cracking pressure
Special hardware features	Standard hardware feature proportional standard
Minimum displacement	025 cc/rev minimum displacement setting
Maximum displacement	100% maximum displacement, non adjustable, use with "L", "D", "M" &"K"
Pressure compensator override setting	No pressure compensator override function, use with “L”, “M”, “E”, “F” and “H*” controls
Paint and nametag	Danfoss nametag
Proposition 65	Cancer and Reproductive Harm

83072244: frequently asked questions

When can 83072244 be shipped?

83072244 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83072244 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83072244 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83072244, subject to availability and destination.
