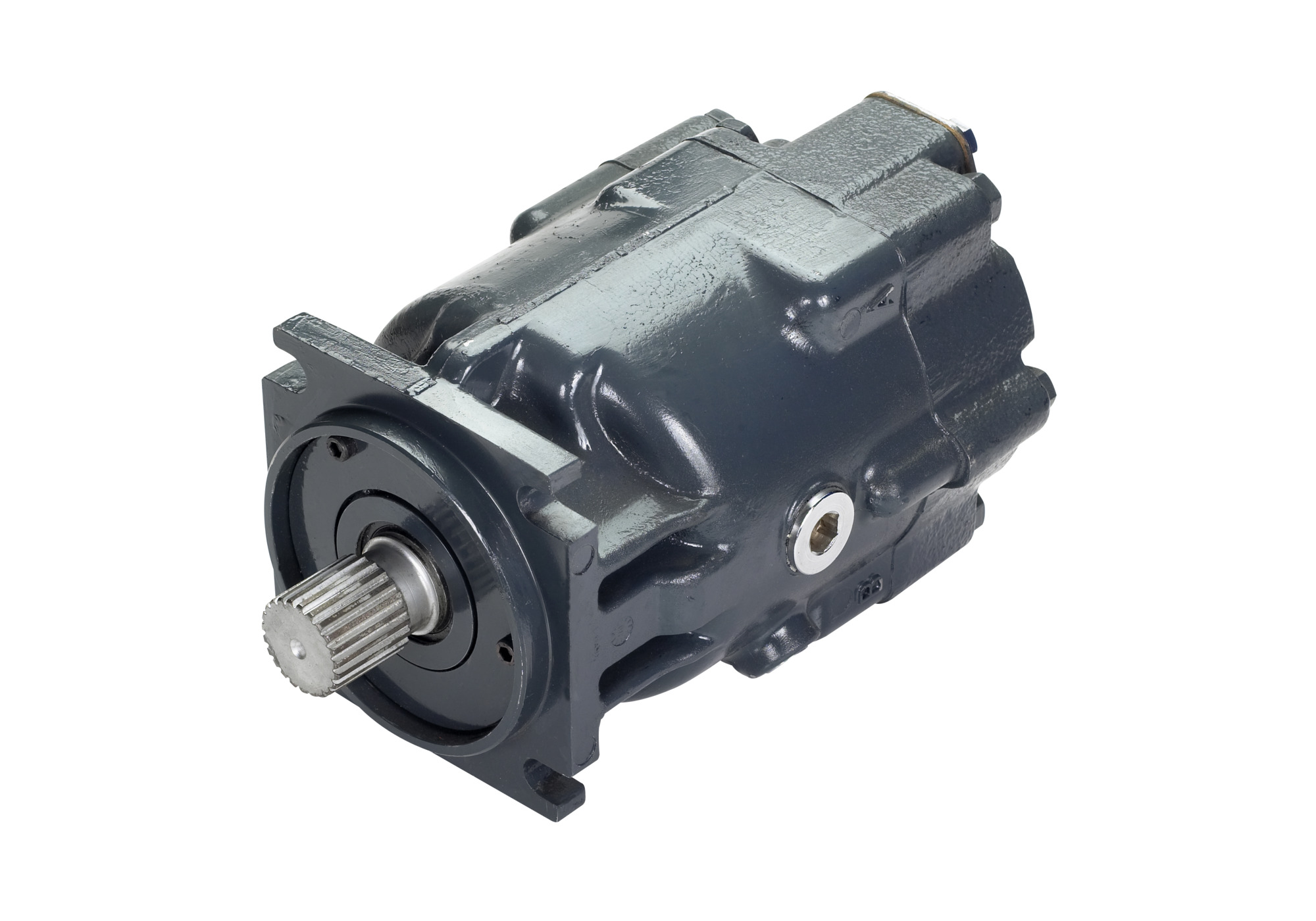

Danfoss 83069576

MOTOR-FIX DISPL 90MF075

MPN
83069576
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83069576?

Danfoss MOTOR-FIX DISPL 90MF075, manufacturer part number 83069576. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

F: NOT USEDNOT APPLICABLE
G: END CAP1 inch Axial Ports, 6000 PSI
H: LOOP FLUSHING TYPEWith Loop Flushing Valve
J: NOT USEDNot Applicable
K: CHARGE PRS RLF AMSLoop Flushing Flow 7 l/min at 25 bar, Cracking Pressure 13 bar, Orifice 1x1,5 mm
L: SHAFTSplined Shaft, 14 Teeth, Pitch = 12 / 24
M: NOT USEDNOT APPLICABLE
N: NOT USEDNOT APPLICABLE
P: PRESSURE REGULATIONNo High Pressure Regulation
Proposition 65Cancer and Reproductive Harm
Series 90 Displacement75 Cubic Centimeters per Revolution
Series 90 Flange Style MFFixed Motor, SAE Flange
Series 90 Product LineSeries 90
T: NOT USEDNOT APPLICABLE
W: SPECIAL HARDWARE FEATURESpeed Sensor, Weather-Pack Connector, 4.5-8.5V, Direction Sensing, Open Collector for D2 Input Signal, KPPx14408
Y: HIGH PRS SETTING PORT APressure Settings Not Adjusted
Z: HIGH PRS SETTING PORT BPressure Settings Not Adjusted

83069576: frequently asked questions

When can 83069576 be shipped?

83069576 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83069576 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83069576 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83069576, subject to availability and destination.
