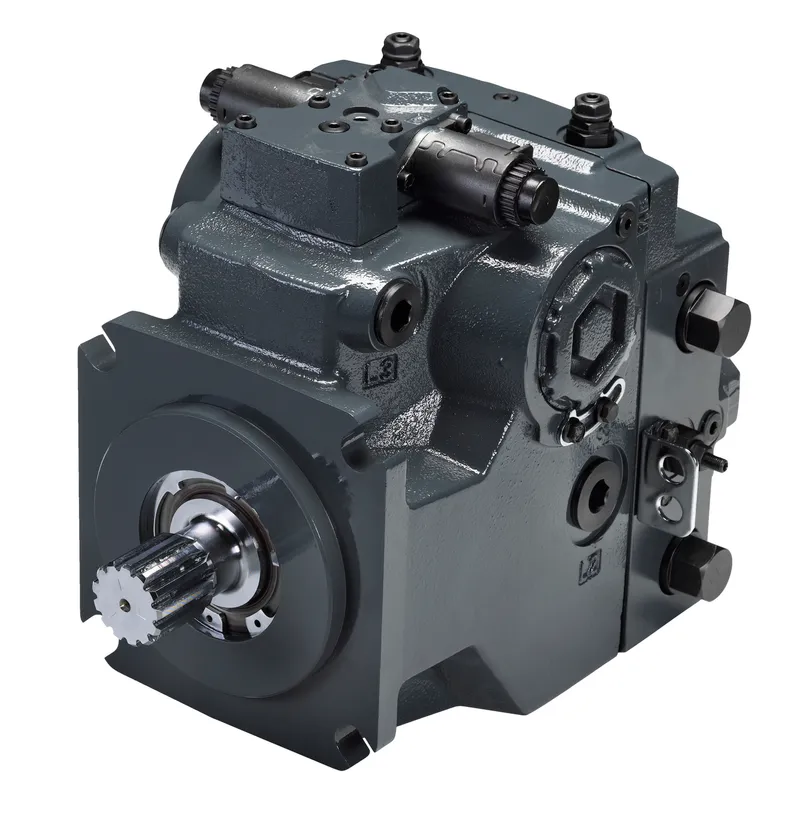

Danfoss 83067718

PUMP-VAR-DISPL CCW H1PV130

MPN: 83067718
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83067718?

Danfoss PUMP-VAR-DISPL CCW H1PV130, manufacturer part number 83067718. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	130cc/rev max/variable displacement
Rotation	Left hand - counterclockwise
Product version	Product version B
Configuration of ports	ANSI O-ring boss port configuration
Control	Electrical displacement control, 24V Deutsch DT04-2P connector, manual override
Orifices	P = none, A+B = none, TA+TB = none
Displacement limitation	No limiters electrical displacement control/forward neutral reverse control
Endcap type	Twin port, code 62 metric 4 bolt flange, remote filter
Mounting flange	SAE D 4 bolt flange
Input shaft	27 tooth, 16/32
Auxiliary pad	14 tooth, C pad
Protection type side A	High pressure relief valve, pressure limiter plugs
High pressure setting side A	450 bar
Protection type side B	High pressure relief valve and pressure limiter plugs
High pressure setting side B	450 bar
Charge pump	26cc/rev
Filtration	Remote full flow
Charge relief pressure setting	24 bar charge pressure relief valve
Special hardware features	Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm
