Danfoss 83067386

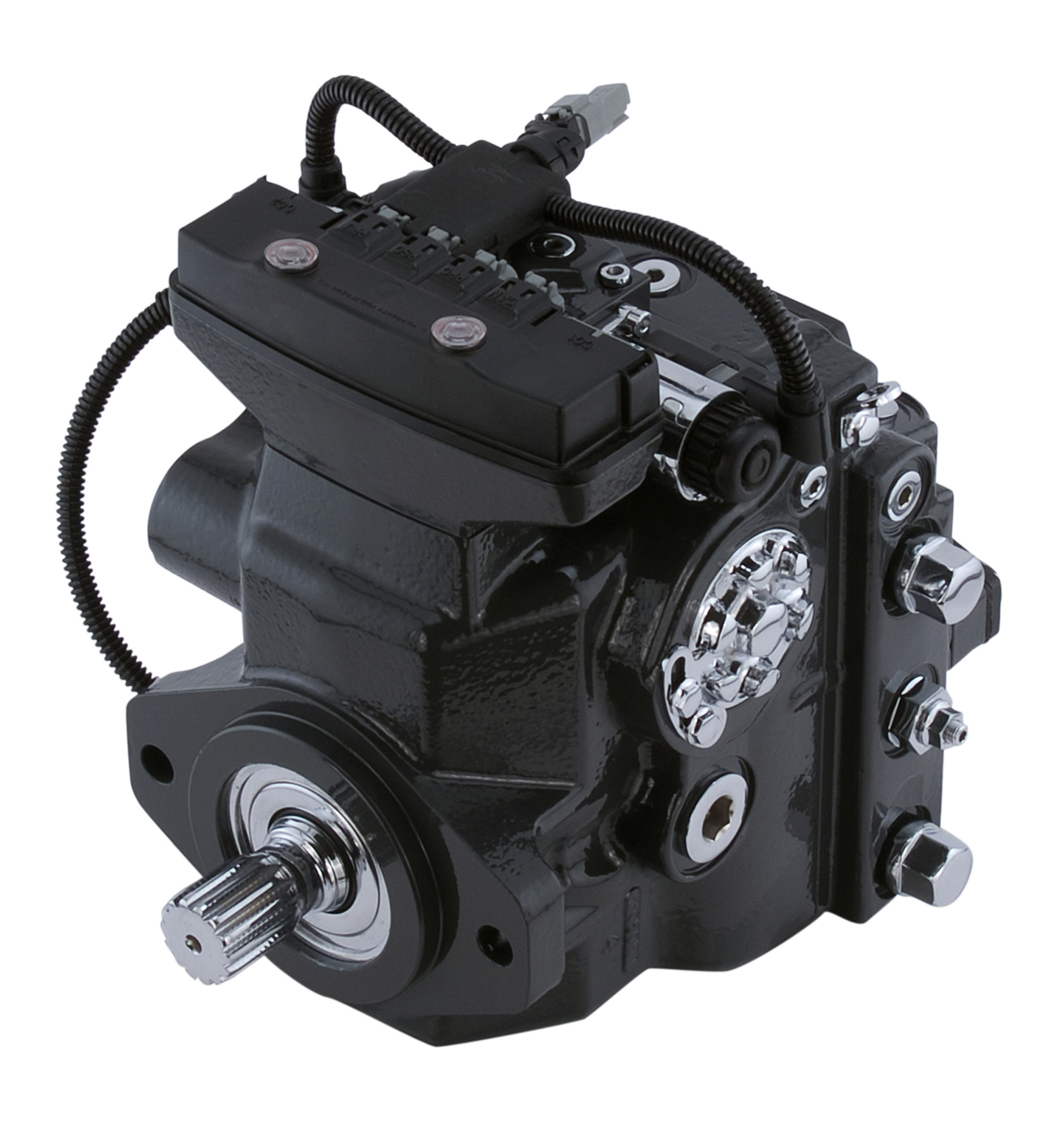

PUMP-VAR DISPL CW H1P045R

MPN: 83067386
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83067386?

Danfoss PUMP-VAR DISPL CW H1P045R, manufacturer part number 83067386. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	45cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version A
Configuration of ports	ANSI O-ring boss port configuration
Control	Electrical displacement control, 24V Deutsch DT04-2P connector, manual override
Orifices	P = none, A+B = 1.3mm, TA+TB = none
Displacement limitation	No limiters electrical displacement control/forward neutral reverse control
Endcap type	Twin port, O-ring boss, suction filter
Mounting flange	SAE B 2 bolt flange (for installation of pump, M12 screws and hardened washers must be used)
Input shaft	15 tooth, 16/32
Auxiliary pad	9 tooth, A pad
Protection type side A	High pressure relief valve, pressure limiter plugs
High pressure setting side A	300 bar
Protection type side B	High pressure relief valve and pressure limiter plugs
High pressure setting side B	300 bar
Charge pump	12cc/rev
Filtration	Suction filtration
Charge relief pressure setting	24 bar charge pressure relief valve
Special hardware features	Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm
