Danfoss 83061696

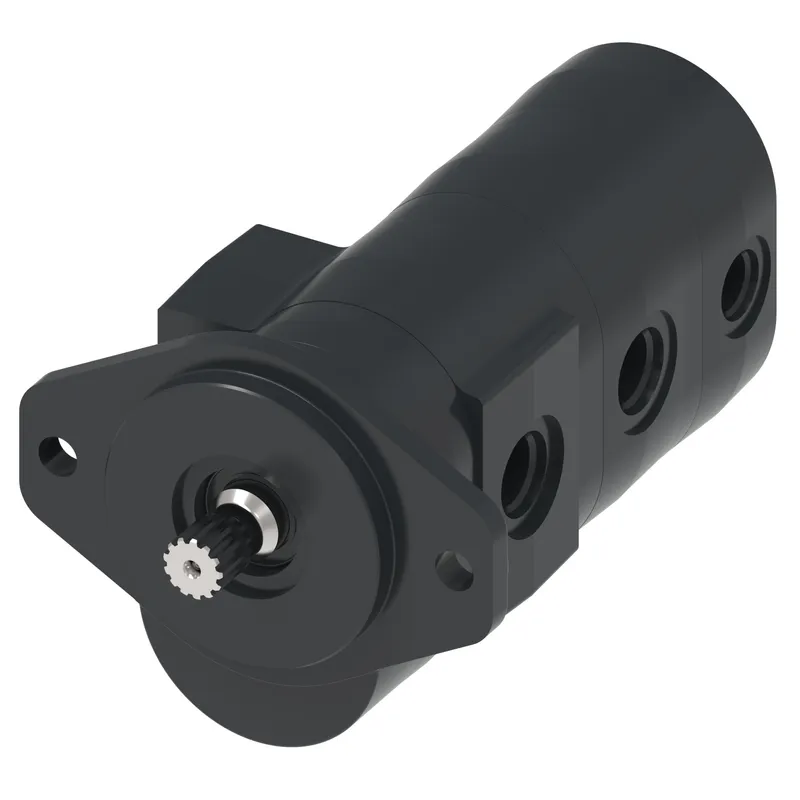

GEAR PUMP-RH, TRIPLE DISPL

MPN: 83061696
Category: Rugid cast iron gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83061696?

Danfoss GEAR PUMP-RH, TRIPLE DISPL, manufacturer part number 83061696. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product	D-series right-hand triple
Front displacement and input drive	36.1cc / splined shaft: SAE 15 tooth spline x 1.81 inch extension
Mounting flange	SAE B 2 bolt, for 1 inch shaft (BxxSV, BxxST, BxxTA, BxxPZ, BxxSQ)
Porting after first section	Bearing plate, 1 1/4-11 BSPP inlet, 3/4-14 BSPP outlet
Second section displacement	36.1 cc [2.20 CIR]
Porting prior to rear cover	Bearing plate, 1 1/4-11 BSPP inlet, 3/4-14 BSPP outlet
Rear displacement	10.8cc [0.66 CIR]
Rear cover and porting	Cover, no inlet, 3/4-14 BSPP outlet
Control setting	No controls
Relief valve pressure	No relief valve
Screws	BP: Screws
Nameplate	Standard nameplate
Special features	Standard black paint
Proposition 65	Cancer and Reproductive Harm
