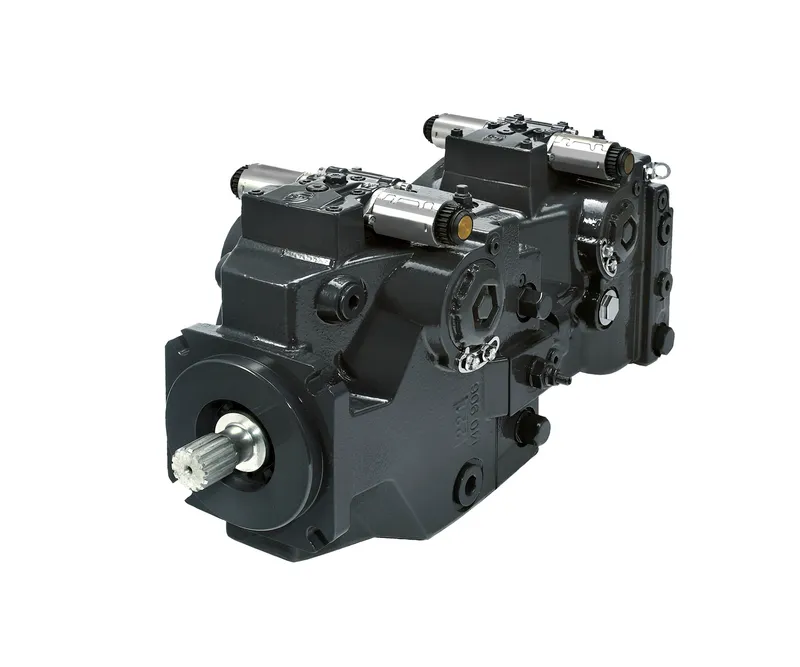

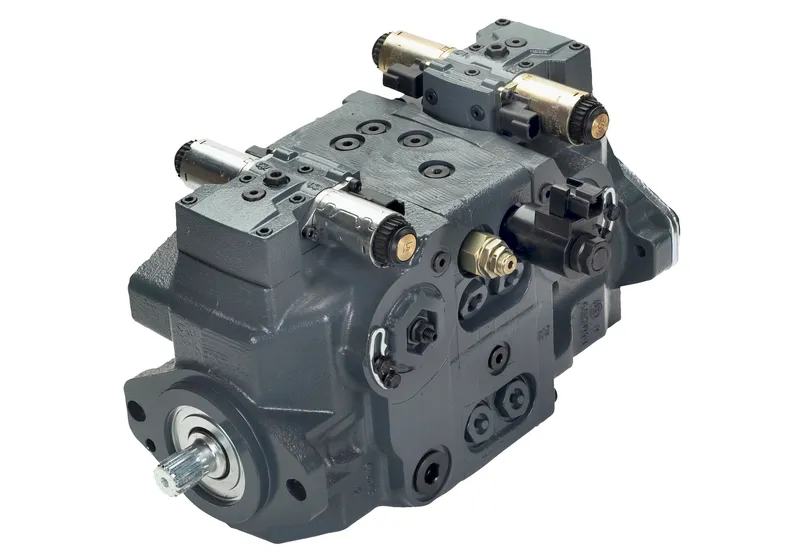

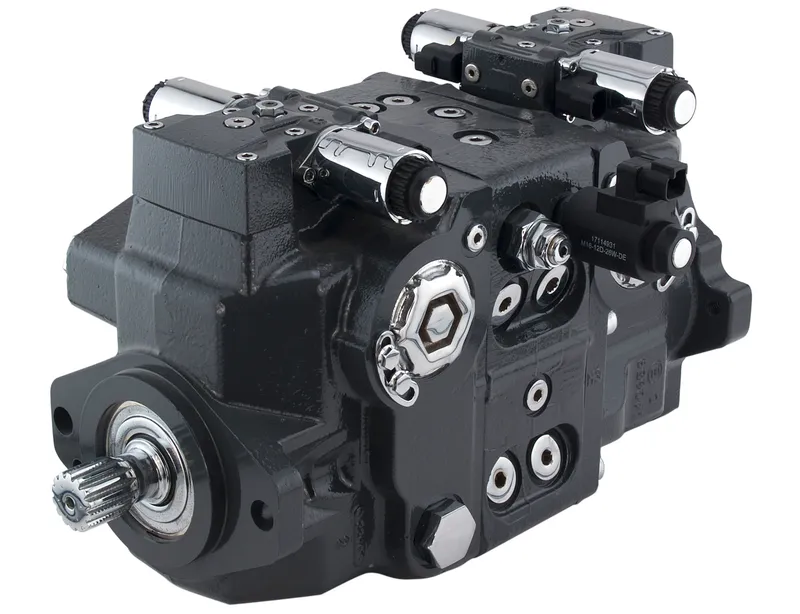

Danfoss 83060444

PUMP-TANDEM, VAR DISPL CW H1T053R

MPN: 83060444
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83060444?

Danfoss PUMP-TANDEM, VAR DISPL CW H1T053R, manufacturer part number 83060444. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Integral tandem pump
Frame Size	53cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version A
Configuration of ports	ANSI O-ring boss port configuration
Second kit size	Rear stage 45cc
Control	Electrical displacement control, 12V Deutsch DT04-2P connector
Orifices	P = none, A+B = 1.3mm, TA+TB = none
Displacement limitation	No limiters electrical displacement control/forward neutral reverse control
Endcap type	Same sided port O-ring high pressure relief valve only (E7)
Mounting flange	SAE B 2 bolt flange (for installation of pump, M12 screws and hardened washers must be used)
Input shaft	15 tooth, 16/32
Auxiliary pad	9 tooth, A pad
High pressure setting side A, front	350 bar
High pressure setting side B, front	350 bar
High pressure setting side A, rear	350 bar high pressure relief valve
High pressure setting side B, rear	350 bar high pressure relief valve
Charge pump	No charge pump, external charge required
Filtration	Remote full flow
Charge relief pressure setting	26 bar charge pressure relief valve
Special hardware features	Electrical displacement control / forward neutral reverse control / manual displacement control valve plate, without handle
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm
