Danfoss 83058724

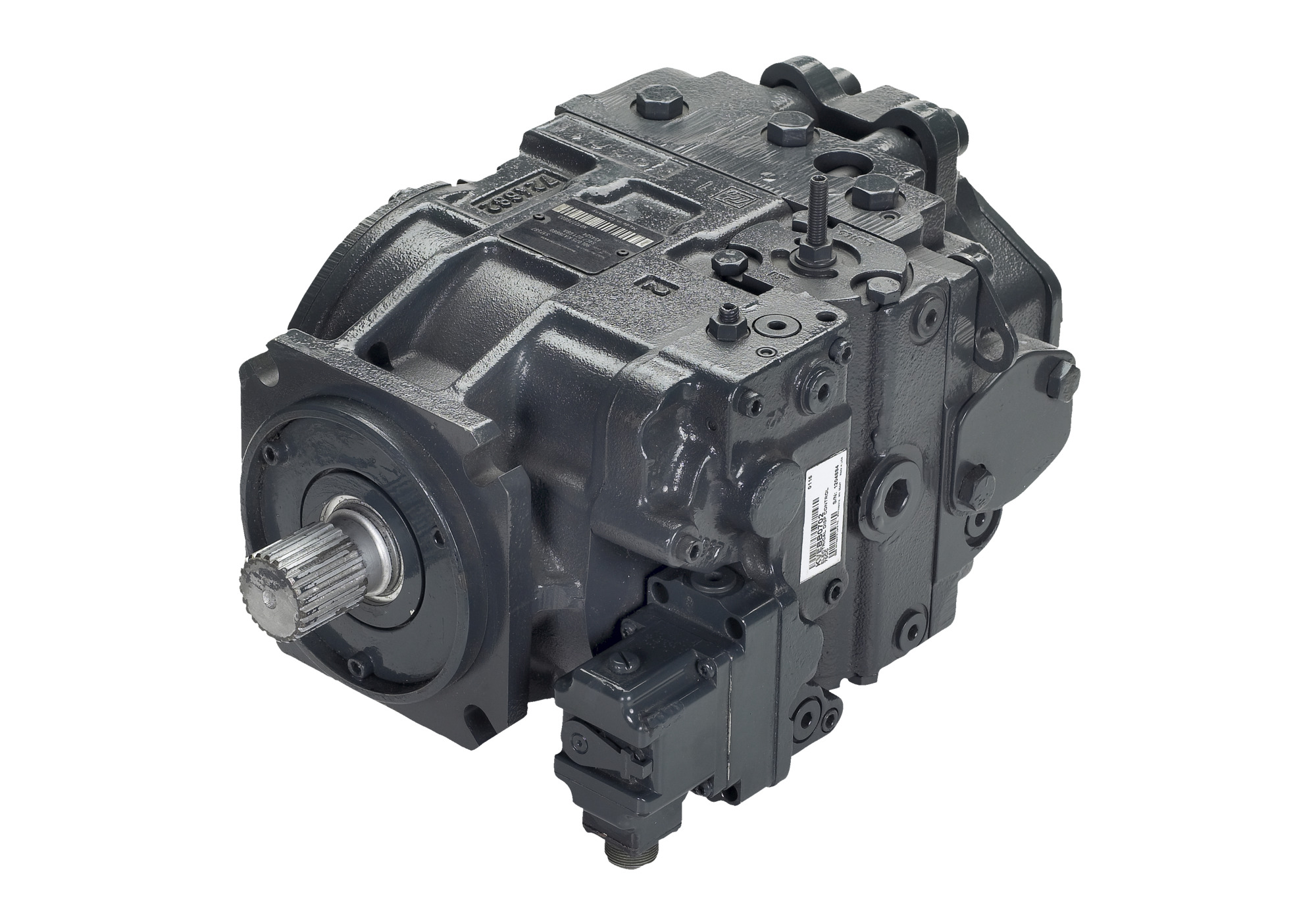

PUMP-VAR DISPL, CW 90PV075

MPN: 83058724
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83058724?

Danfoss PUMP-VAR DISPL, CW 90PV075, manufacturer part number 83058724. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: DISPLACEMENT LIMITATION	Limitation Both Sides
G: END CAP PORTS	twin ports
H: CHARGE PUMP	20 cc/rev
J: AUXILIARY MOUNTING PAD	no auxiliary mounting pad
K: CHARGE PRESSURE SETTING	24 bar
K: CHARGE PRS RELIEF	24 bar
L: SHAFT OPTIONS	splined shaft , 14 teeth, pitch = 12 / 24
M: CONTROL	standard porting, 3 - 11 BAR (44 - 160 PSI)
N: FILTRATION	Suction
P: HIGH PRESSURE REGULATION	Port A & B: fast response PL, up to 450 bar settings
Proposition 65	Cancer and Reproductive Harm
Series 90 Displacement	75 Cubic Centimeters per Revolution
Series 90 Product Line	Series 90
Series 90 Rotation	Clockwise (Right hand) Rotation
T: CONTROL ORIFICES	MDC (P) 0,81 (TA) none* (TB) none* (A) none (B) none
W: SPECIAL HARDWARE FEATURES	CP15 +0.5 VALVE PLATE
Y: HIGH PRESSURE SETTING A	Port A = 230 Bar / 33000 PSI
Y: HIGH PRS SETTING PORT A	Port A = 230 Bar / 33000 PSI
Z: HIGH PRESSURE SETTING B	Port B = 230 Bar / 3300 PSI
Z: HIGH PRS SETTING PORT B	Port B = 230 Bar / 3300 PSI
