Danfoss 83055372

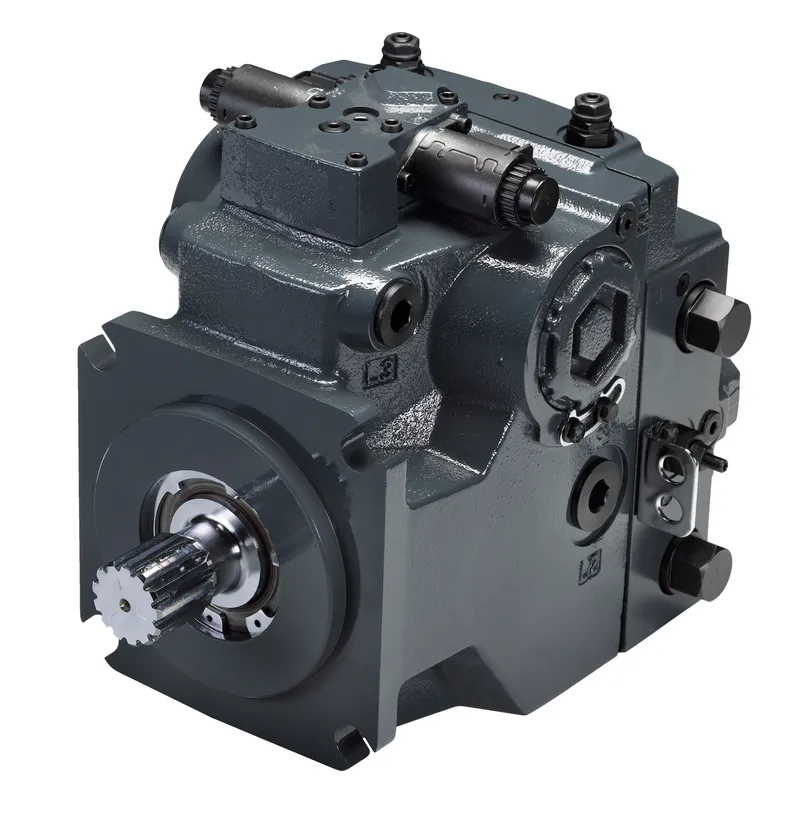

PUMP-VAR-DISPL CCW H1PV130

MPN: 83055372
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83055372?

Danfoss PUMP-VAR-DISPL CCW H1PV130, manufacturer part number 83055372. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	130cc/rev max/variable displacement
Rotation	Left hand - counterclockwise
Product version	Product version B
Configuration of ports	ANSI O-ring boss port configuration
Control	Electrical displacement control, 24V Deutsch DT04-2P connector, manual override
Orifices	P = none, A+B = none, TA+TB = none
Displacement limitation	Adjustable externally (electrical displacement control/forward neutral reverse control)
Endcap type	Twin port, code 62 metric 4 bolt flange, remote filter
Mounting flange	SAE D 4 bolt flange
Input shaft	13 tooth, 8/16
Auxiliary pad	14 tooth, C pad
Protection type side A	Pressure limiter, high pressure relief valve
High pressure setting side A	330 bar
Protection type side B	High pressure relief valve + pressure limiter
High pressure setting side B	330 bar
Charge pump	No charge pump, external charge required
Filtration	External charge supply full flow filter (for no charge pump)
Charge relief pressure setting	34 bar charge pressure relief valve
Special hardware features	Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametag	Black paint, Danfoss tag A
Settings	Default, no special settings
Proposition 65	Cancer and Reproductive Harm

83055372: frequently asked questions

When can 83055372 be shipped?

83055372 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83055372 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83055372 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83055372, subject to availability and destination.
