Danfoss 83051327

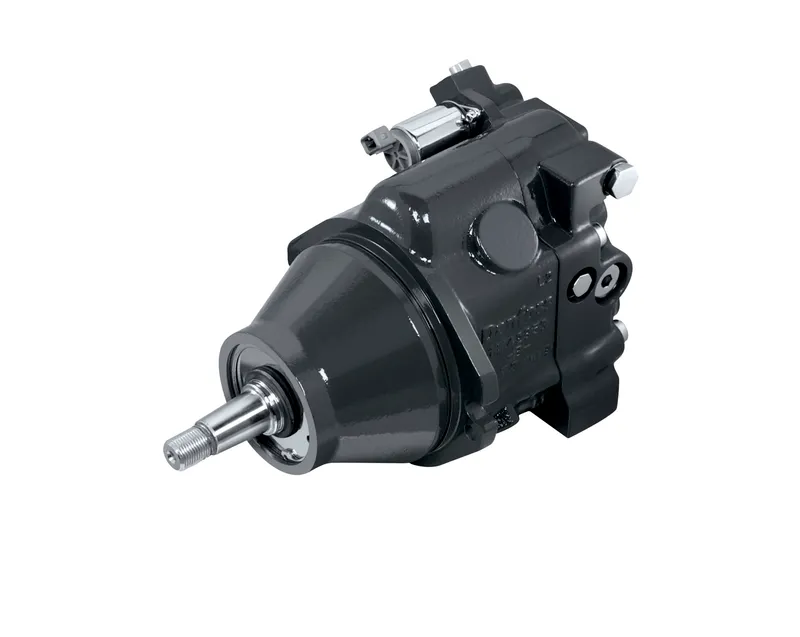

MOTOR-VARIABLE REVERSING CARTRIDGE L

MPN: 83051327
Category: Reverse displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83051327?

Danfoss MOTOR-VARIABLE REVERSING CARTRIDGE L, manufacturer part number 83051327. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

VARIABLE MOTOR PRODUCT	L Frame
B: CONFIGURATION	MOTOR-VARIABLE REVERSING CARTRIDGE
C: BASE DISPL / SPEED RING	25cc/REVOLUTION (1.50 CU. IN.)
D: SHAFT	Tapered, 0.875 inch Dia, 1.5 in/ft taper, uses Square key, with dust seal
E: END CAP/LOOP FL/MIN ANGLE A	TWIN RADIAL, 1 1/16-12, ANTI-CAVITATION, A-PORT HIGH PRESSURE, 280 BAR OVERPRESSURE PROTECTION, 12 VOLT ELECTRIC SHIFT
F: MINIMUM DISPLACEMENT SETTI	REVERSE DISPLACEMENT 18 DEGREE
G: CONTROL TYPE	HYDRAULIC SINGLE LINE
H: SUPPLY ORIFICE	NONE
J: DRAIN ORIFICE	NONE
K: SPD SNSG/MAX ANGLE ADJ	HOUSING WITH SPEED SENSOR PORT PLUGGED, SAE CASE DRAIN, 3/4-16
L: MAXIMUM DISPLACEMENT SETTIN	18 DEG
M: SPECIAL HARDWARE	SPECIAL HARDWARE - HIGH CAPACITY BALL BEARING
N: SPECIAL FEATURES	SPECIAL FEATURE - BLACK PAINT, FULL COVERAGE, DANFOSS NAMETAG, LAYOUT Q
Proposition 65	Cancer and Reproductive Harm
Size/Dimensions	0.001
