Danfoss 83049072

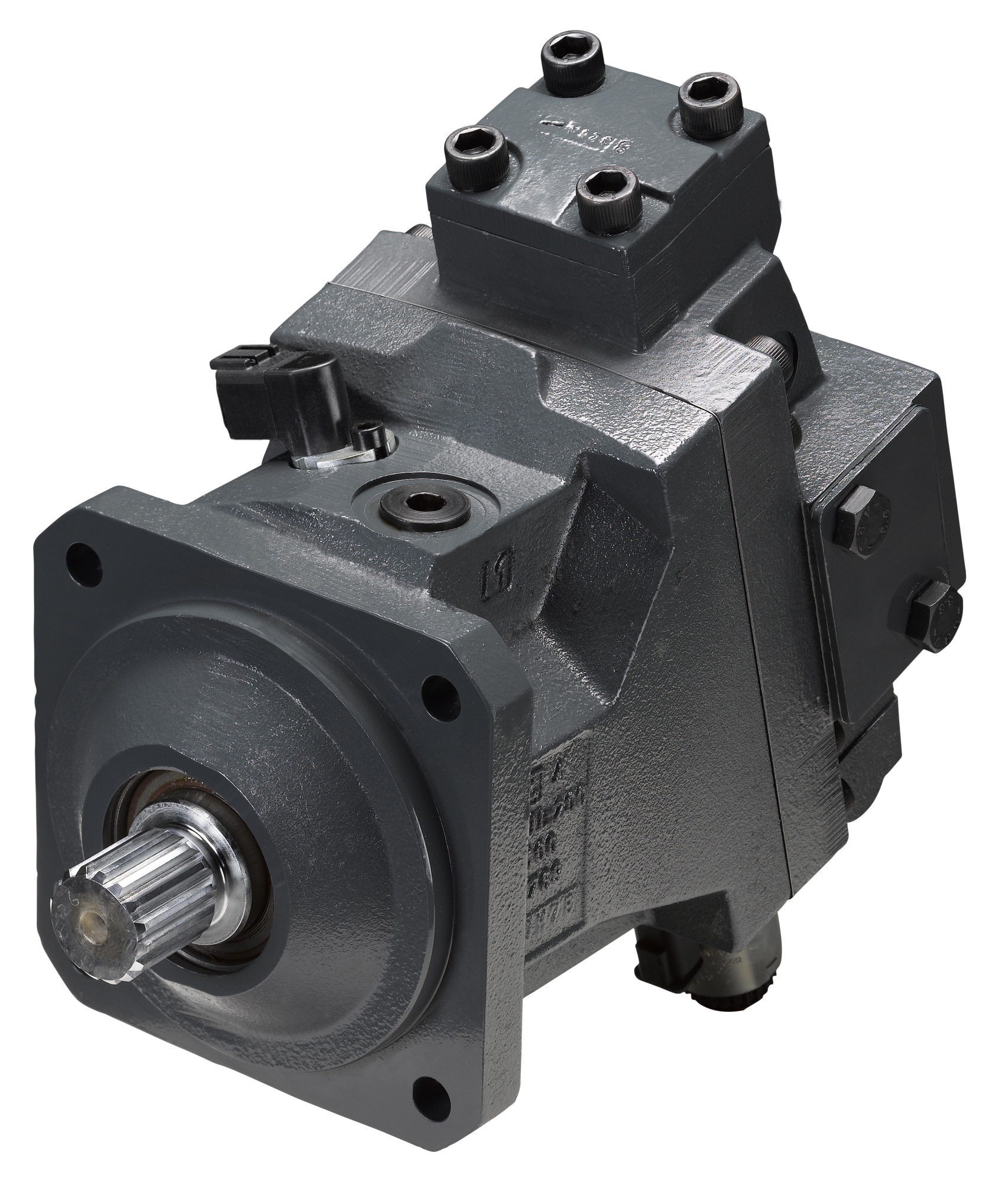

MOTOR-VAR-DISPL H1B080

MPN: 83049072
Category: Variable displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83049072?

Danfoss MOTOR-VAR-DISPL H1B080, manufacturer part number 83049072. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Bent-axis variable motor
Frame Size	Displacement 80 cc/rev at maximum angle
Revision	Product version A of H1B series
Configuration of ports	Port configuration: inch according to ISO 11926-1
Control	Pressure compensator override, default = minimum displacement
Pressure compensator override and brake pressure defeat	With pressure compensator override and electric 24V brake pressure defeat (de-energized brake pressure defeat = pressure compensator override active at Port A), Deutsch DT 04-2P connector, use with “P2”, “T2” and TA controls
Threshold setting	Not applicable
Orifices	0.8mm diameter orifices M4 and M5
Endcap type and ports	Endcap for 2 position and pressure compensator controls, axial ports ISO 6162 Type 1 (metric), use with “E”, “F”, “T”, “P” and“H*” controls
Flange and housing	Cartridge-flange motor housing, no speed sensor port
Shaft and speed ring	W35x2x30x16x9g DIN 5480, no speed ring
Sensor	No speed sensor
Loop flushing shuttle system	Loop flushing, 6.5 bar shuttle shift pressure
Loop flushing relief valve	5 l/min, non adjustable, 16 bar cracking pressure
Special hardware features	Standard hardware feature 2 position standard
Minimum displacement	048 cc/rev minimum displacement setting
Maximum displacement	100% maximum displacement, non adjustable, use with "E", "F", "T","P" & "H*"
Pressure compensator override setting	Pressure compensator override pressure setting 280 bar
Paint and nametag	Danfoss nametag
Proposition 65	Cancer and Reproductive Harm

83049072: frequently asked questions

When can 83049072 be shipped?

83049072 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83049072 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83049072 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83049072, subject to availability and destination.
