Danfoss 83048569

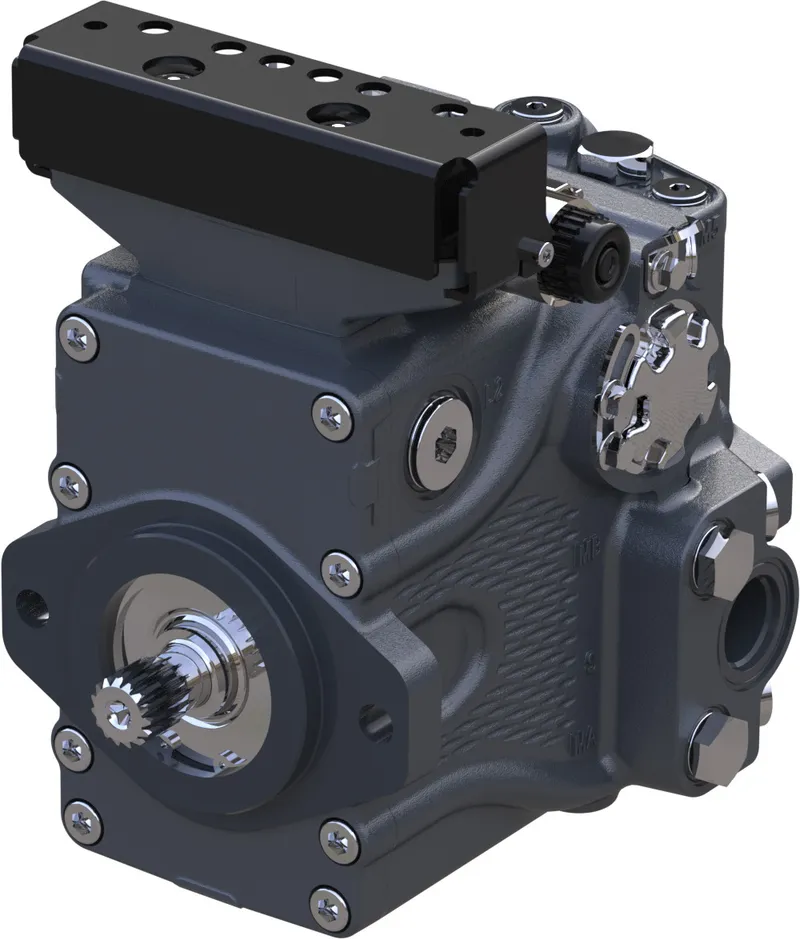

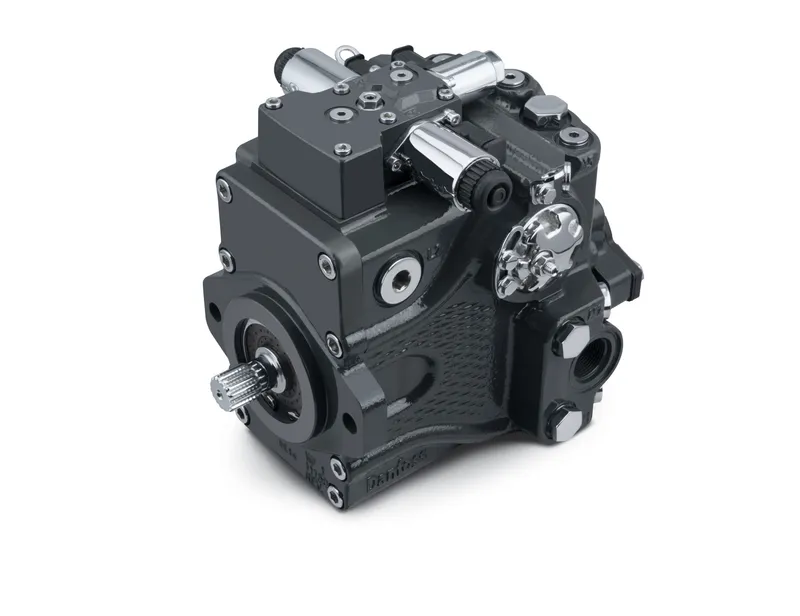

PUMP-VAR DISPL MP1P38R

MPN: 83048569
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83048569?

Danfoss PUMP-VAR DISPL MP1P38R, manufacturer part number 83048569. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	MP1 - Series
Product type	Variable pump
A: DISPLACEMENT & ROTATION	38 cc/rev max/variable displacement, clockwise
B: PRODUCT VERSION & UNIT	Product version A, inch
C: AC & INCHING	Automotive control, none
D: CONTROL	Manual displacement control, manual displacement control
F: ORIFICES	Pressure = 1.3mm, A+B = 1.3mm, TA+TB = 1.0mm
H: MOUNTING FLANGE	SAE-B flange
J: INPUT SHAFT	15 tooth 16/32
T: FILTRATION	Filtration, remote full flow
K: CHG PMP AND AUX PAD	12cc/rev charge pump, 13 tooth B pad
E: DISPLACMENT LIMITATION	No displacement limiters
M: HIGH PRESSURE SETT SIDE A	High pressure setting A side, 260 bar
N: HIGH PRESSURE SETT SIDE B	High pressure setting B side, 300 bar
Z: POR SETTING	POR setting, none
L: LOOP FLUSHING	Loop flushing, none
V: CHARGE RELIEF PRESSURE SETT	20 bar charge pressure relief setting
G: PORTING TYPE	System ports split flange per ISO 6162-2, other ports O-ring boss (inch per ISO 11926-1)
W: SPECIAL HARDWARE FEATURES	Special hardware, standard, 38cc, clockwise
X: PAINT AND NAMETAG	No paint, standard nametag, layout A
Y: SETTINGS	Settings, manual displacement control control handle standard position
Proposition 65	Cancer and Reproductive Harm
