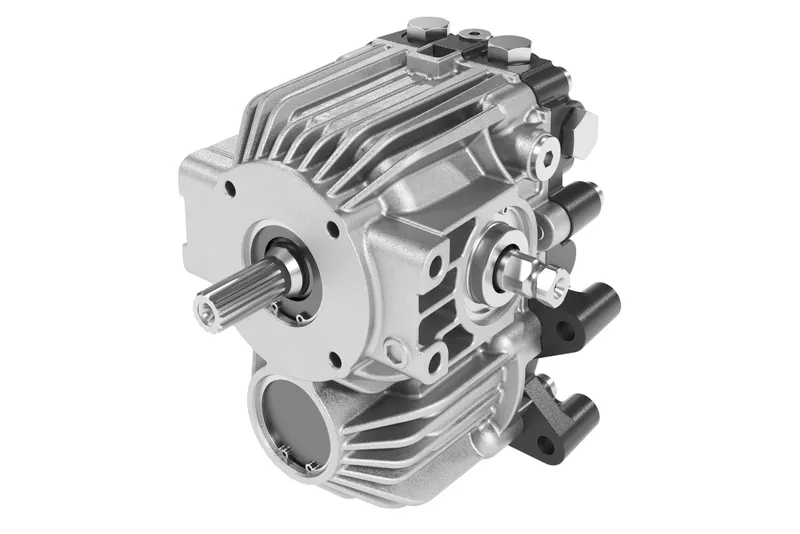

TRANSMISSION LDU20 U-STYLE CW

Name: TRANSMISSION LDU20 U-STYLE CW
Brand: Danfoss (Drives)
SKU: 83048063

MPN: 83048063 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Transmissions
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 83048063 be shipped?

83048063 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83048063 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83048063 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83048063, subject to availability and destination.

Danfoss TRANSMISSION LDU20 U-STYLE CW, manufacturer part number 83048063. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A: Displacement & block type	021 cc/rev displacement at maximum angle, Z-shaft, center sectionmounting
B: Rotation	Clockwise rotation
C: Valve plate pump	CP6.5 0.8 deg index valve plate
D: Control arm position	Right side, from input shaft view
E: Control arm configuration	17mm Square
F: Pump shaft configuration (input shaft/PTO shaft)	JIS 14T (Input) / JIS 14T (PTO)
H: Output shaft configuration	JIS 20x14x1.25
J: Centersection configuration	Drain port : On Housing Only, Charge port : 9/16-UNF w/ Bypass valve Left side;
K: Charge pump displacement	None
L: CHARGE RELIEF SETTING	Charge Pressure Relief Setting 7 bar
M: BYPASS VALVE	Bypass valve - left
N: Check & relief valve (left-hand side viewing from housing)	High Pressure Relief Valve 250 bar [3625 psi]
P: Check & relief valve (right-hand side viewing from housing)	High Pressure Relief Valve 250 bar [3625 psi]
Proposition 65	Cancer and Reproductive Harm
Series	LDU Product
Y: Special hardware feature	Standard
Z: Paint and nametag	No Paint, Danfoss Nametag, Standard Layout
