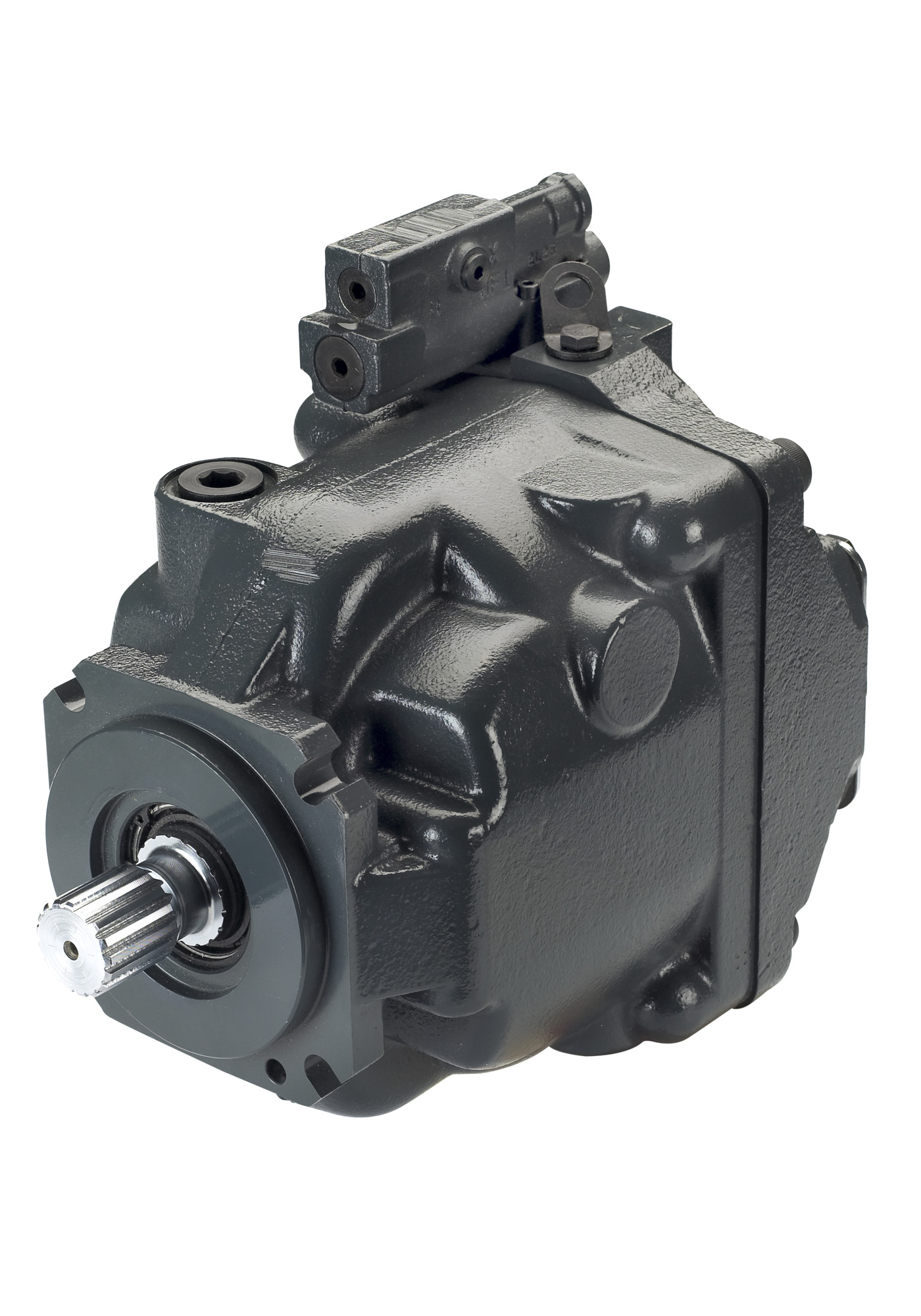

Danfoss 83044780

PUMP-VAR DISPL CCW S45PVOC_E

MPN: 83044780
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 83044780?

Danfoss PUMP-VAR DISPL CCW S45PVOC_E, manufacturer part number 83044780. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	E frame axial piston open circuit pump
Rotation	Counter-clockwise rotation
Displacement and load life	130 cc/rev - 310 bar maximum continuous rated pressure
Control type	Remote pressure compensated [PC pressure range: 290-310 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	310 bar [4495 psi]
Load sensing setting	15 bar [218 psi]
Torque limiter setting	Not applicable
Choke orifice	0.8 mm diameter orifice - servo control orifice
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	17 tooth 12/24 pitch shaft, SAE-C 14 tooth auxiliary, radial, inlet: 4-bolt split flange (2.5 inch port, 0.5 inch threads), outlet:4-bolt split flange (1.25 inch port, 0.5 inch threads)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports
Displacement limiter	None
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm
