Danfoss 83043822

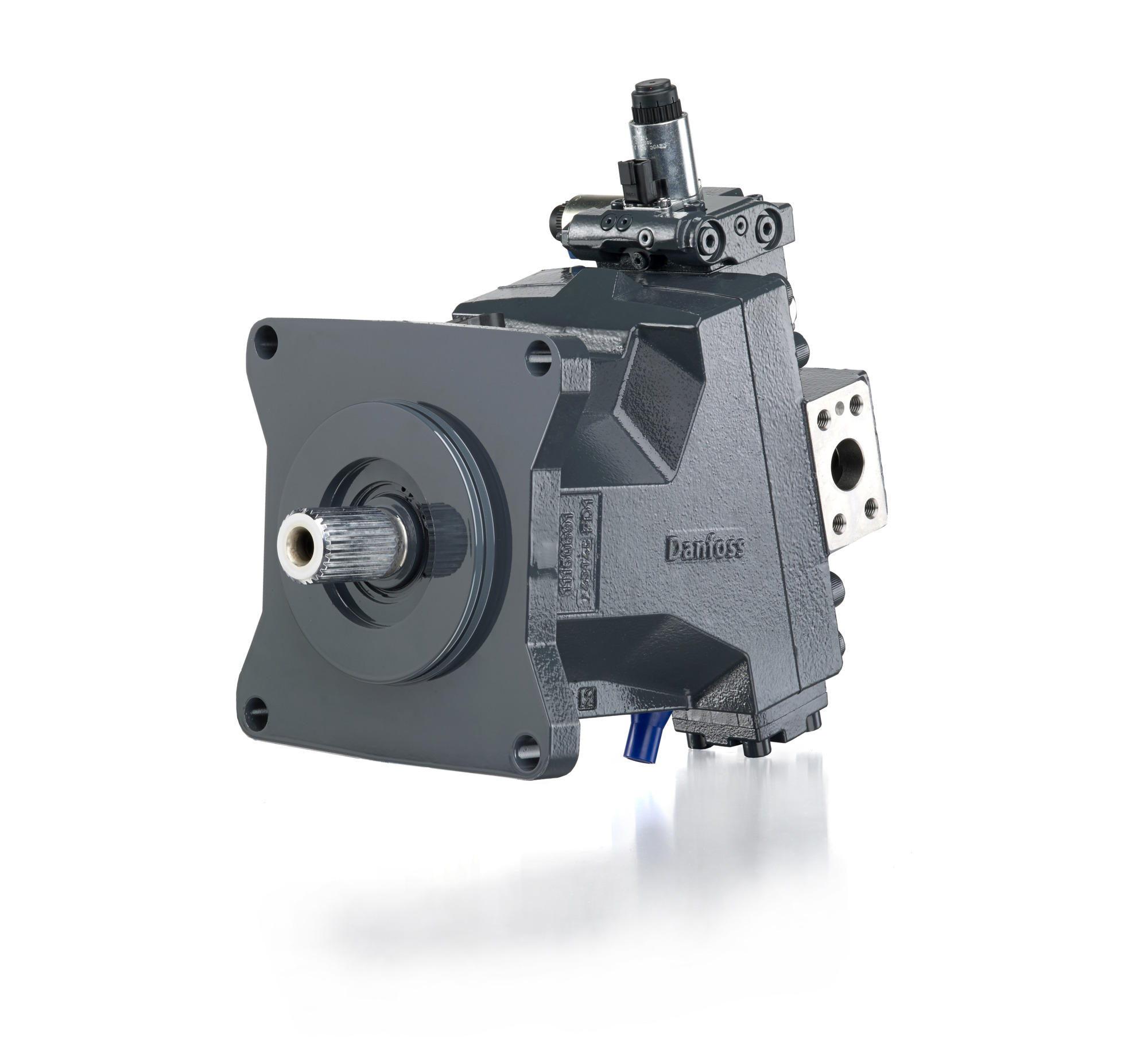

MOTOR-VAR-DISPL H1B210

MPN: 83043822
Category: Variable displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 83043822?

Danfoss MOTOR-VAR-DISPL H1B210, manufacturer part number 83043822. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Bent-axis variable motor
Frame Size	Displacement 210 cc/rev at maximum angle
Revision	Product version A of H1B series
Configuration of ports	Port configuration: inch according to ISO 11926-1
Control	Electric proportional 24V, Deutsch DT 04-2P connector, de-energized = minimum displacement, no pressure compensator override
Pressure compensator override and brake pressure defeat	Without pressure compensator override and without brake pressure defeat, use with “M*” controls
Threshold setting	Not applicable
Orifices	1.2mm diameter orifices M4 and M5
Endcap type and ports	Endcap for proportional controls, axial ports ISO 6162 Type 1 (metric), use with “M” and “K” controls
Flange and housing	SAE-flange motor housing (ISO 3019 / 1), with speed sensor port
Shaft and speed ring	27 tooth 16/32 pitch ANSI 92.1 1970 class 5, with speed ring
Sensor	Speed sensor, Deutsch DTM 04-6P connector, 4.5V to 8V
Loop flushing shuttle system	Loop flushing, 6.5 bar shuttle shift pressure
Loop flushing relief valve	20 l/min, non adjustable, 16 bar cracking pressure
Special hardware features	Standard hardware feature proportional standard
Minimum displacement	Zero minimum displacement without adjustment
Maximum displacement	100% maximum displacement, non adjustable, use with "L", "D", "M" &"K"
Pressure compensator override setting	No pressure compensator override function, use with “L”, “M”, “E”, “F” and “H*” controls
Paint and nametag	Danfoss nametag
Proposition 65	Cancer and Reproductive Harm
