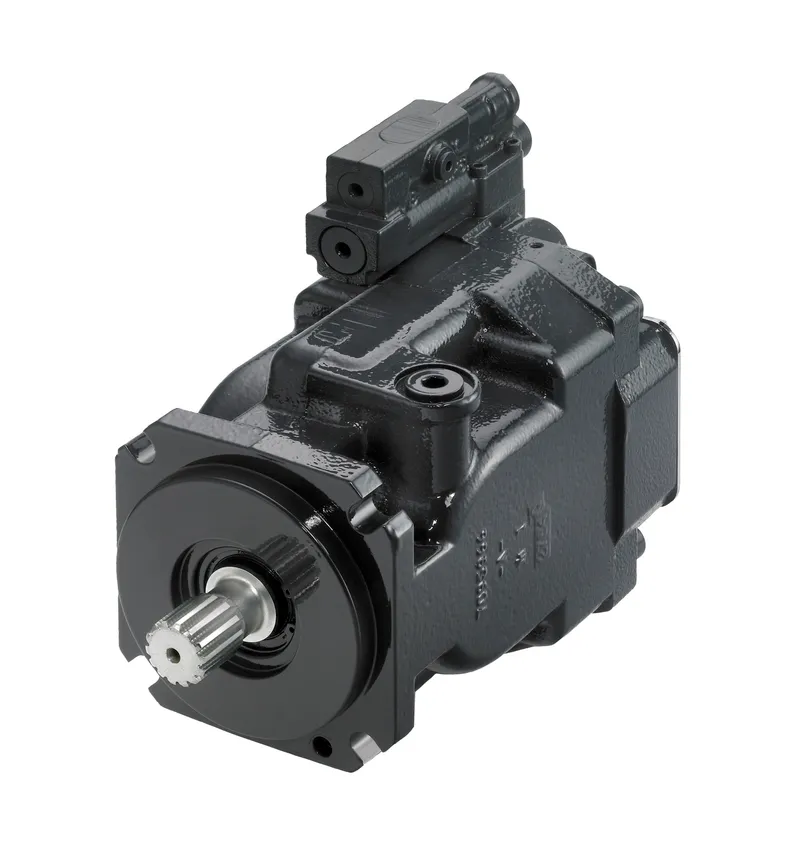

Danfoss 83038696

PUMP-VAR DISPL, CW S45PVOC_F

MPN: 83038696
Category: Series 45 open-circuit axial piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Danfoss 83038696?

Danfoss PUMP-VAR DISPL, CW S45PVOC_F, manufacturer part number 83038696. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Frame	F frame axial piston open circuit pump
Rotation	Clockwise rotation
Displacement and load life	74 cc/rev - 310 bar maximum continuous rated pressure
Control type	Pressure compensated / load sensing [PC pressure range: 290-310 bar, LS pressure range: 10-40 bar]
Pressure compensator setting	290 bar [4205 psi]
Load sensing setting	20 bar [290 psi]
Torque limiter setting	Not applicable
Choke orifice	None
Gain orifice	Standard orifice
Shaft, auxiliary flange, and endcap	14 tooth 12/24 pitch shaft, SAE-B 13 tooth auxiliary, radial, inlet: 4-bolt split flange (2 inch port, 0.5 inch threads), outlet:4-bolt split flange (1 inch port, 0.375 inch threads)
Shaft seal, front flange, and housing ports	Single Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports
Displacement limiter	None
Special hardware	Special hardware - none
Special features	Black paint, Danfoss tag
Proposition 65	Cancer and Reproductive Harm

83038696: frequently asked questions

When can 83038696 be shipped?

83038696 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83038696 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83038696 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83038696, subject to availability and destination.
