Danfoss 83033157

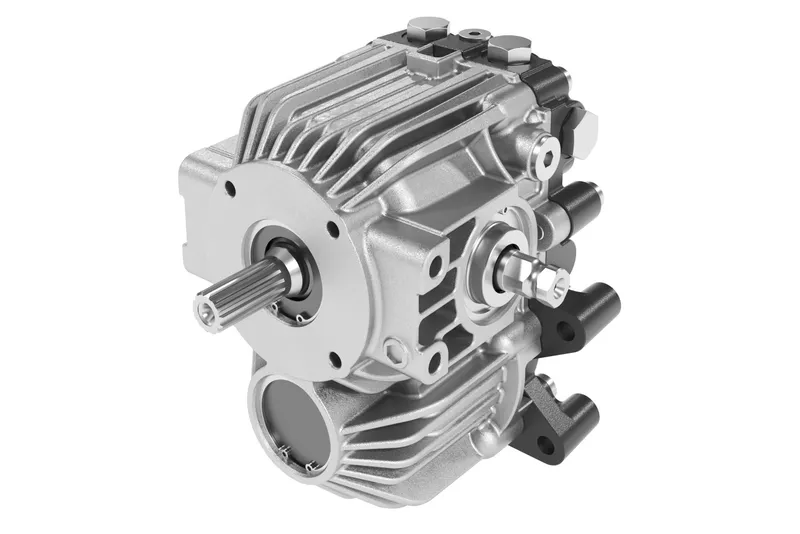

TRANSMISSION LDU20 U-STYLE CCW

MPN: 83033157
Category: Transmissions

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83033157?

Danfoss TRANSMISSION LDU20 U-STYLE CCW, manufacturer part number 83033157. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A: Displacement & block type	021 cc/rev displacement at maximum angle, Z-shaft, center sectionmounting
B: Rotation	Counter-clockwise rotation
C: Valve plate pump	CP6.5 0.8 deg index valve plate
D: Control arm position	Left side, from input shaft view
E: Control arm configuration	17mm Square
F: Pump shaft configuration (input shaft/PTO shaft)	JIS 14T (Input) / JIS 14T (PTO)
H: Output shaft configuration	JIS 20x14x1.25
J: Centersection configuration	Drain port : On Housing Only, Charge port : 9/16-UNF w/ Bypass valve Left side;
K: Charge pump displacement	None
L: CHARGE RELIEF SETTING	Charge Pressure Relief Setting 7 bar
M: BYPASS VALVE	Bypass valve - left
N: Check & relief valve (left-hand side viewing from housing)	Poppet-type check valve
P: Check & relief valve (right-hand side viewing from housing)	High Pressure Relief Valve 300 bar [4350 psi]
Proposition 65	Cancer and Reproductive Harm
Series	LDU Product
Y: Special hardware feature	Standard
Z: Paint and nametag	No Paint, Danfoss Nametag, Standard Layout

83033157: frequently asked questions

When can 83033157 be shipped?

83033157 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83033157 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83033157 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83033157, subject to availability and destination.
