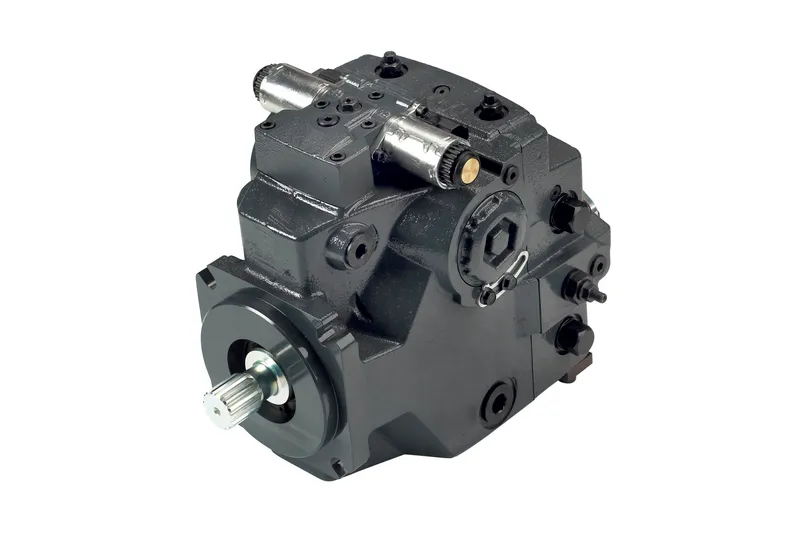

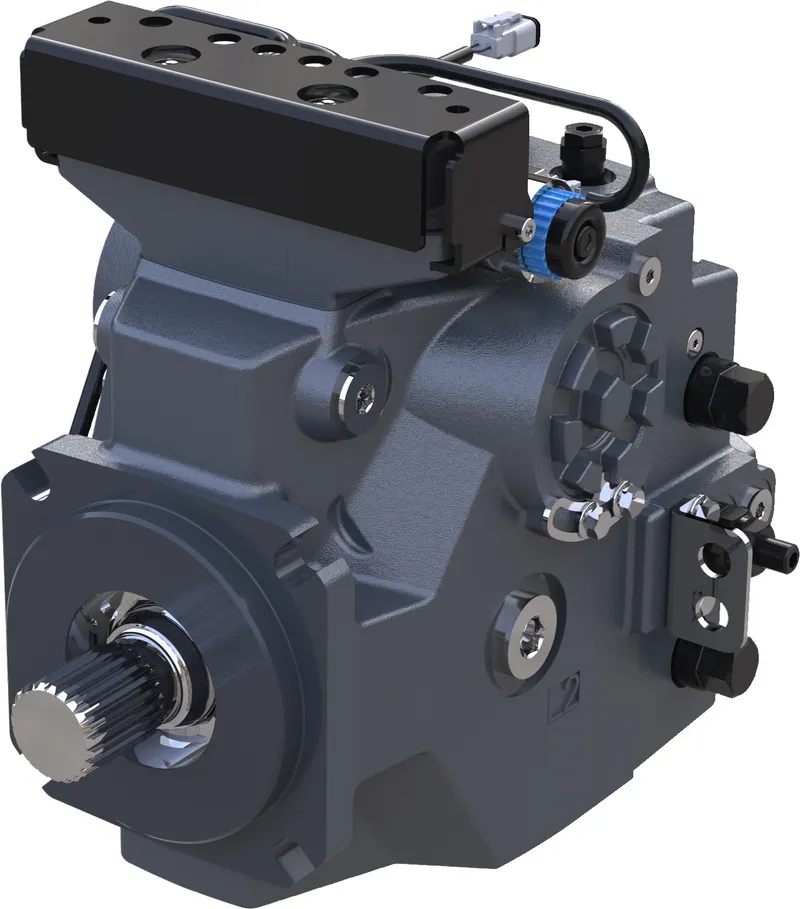

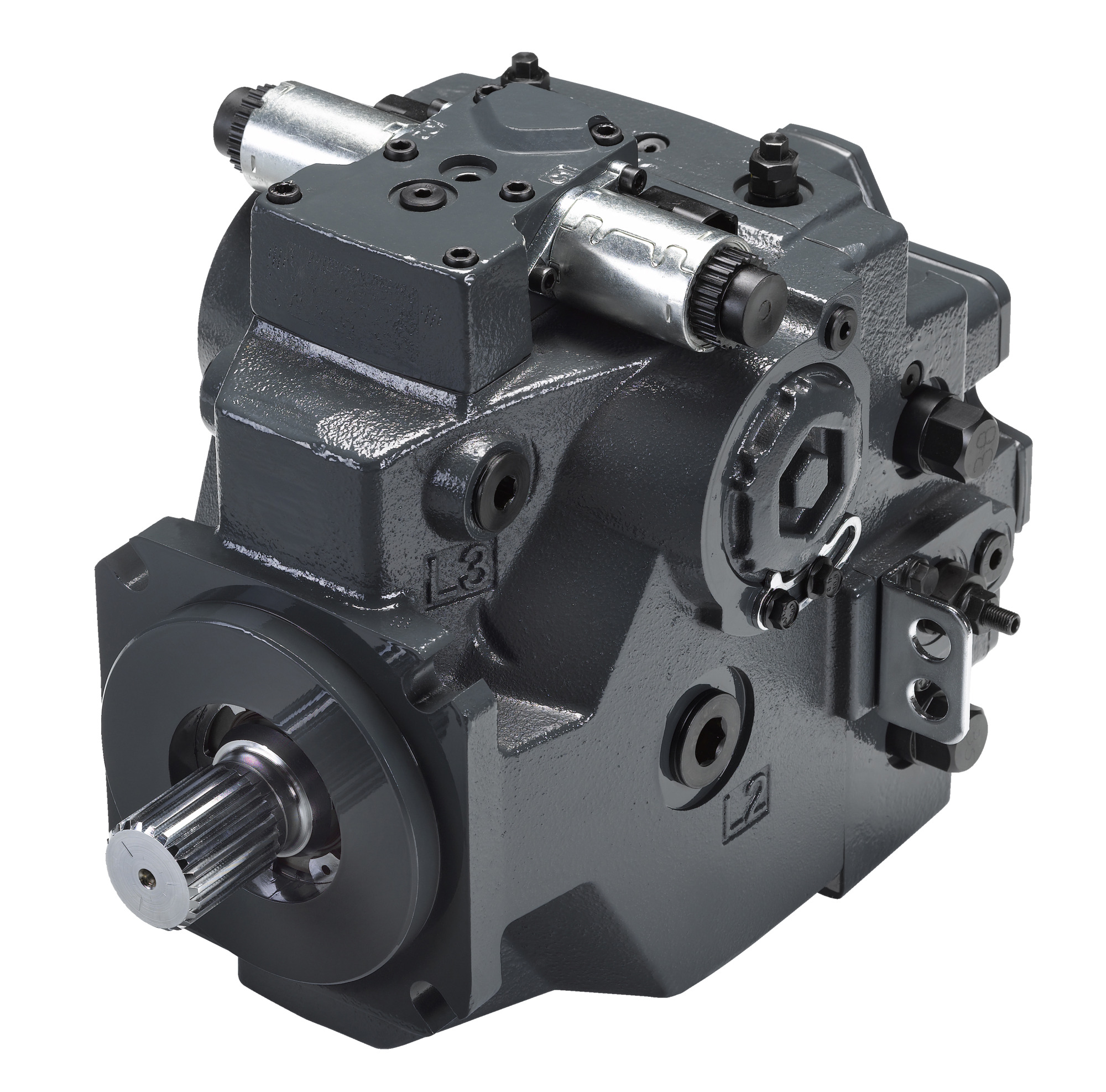

Danfoss 83030286

PUMP-VAR-DISPL CW H1PV069

MPN: 83030286
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83030286?

Danfoss PUMP-VAR-DISPL CW H1PV069, manufacturer part number 83030286. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Series	H1 - Series
Product type	Variable pump
Frame Size	69cc/rev max/variable displacement
Rotation	Right hand - clockwise
Product version	Product version B
Configuration of ports	ANSI O-ring boss port configuration
Control	AC-2 (automotive), 12V, angle sensor, manual override
Orifices	P = none, A+B = 1.3mm, TA+TB = none
Displacement limitation	No limiters automotive control/non-feedback proportional electric (nested springs)
Endcap type	Twin port, code 62 metric 4 bolt flange, integral pressure filter
Mounting flange	SAE C 4 bolt flange + speed sensor
Input shaft	23 tooth, 16/32
Auxiliary pad	No auxiliary pad
Protection type side A	Pressure limiter, high pressure relief valve
High pressure setting side A	450 bar
Protection type side B	High pressure relief valve + pressure limiter
High pressure setting side B	450 bar
Charge pump	17cc/rev
Filtration	Integral full flow with filter bypass sensor
Charge relief pressure setting	28 bar charge pressure relief valve
Special hardware features	Automative control /non-feedback proportional electric/fan drive contro valve plate + speed sensing
Paint and nametag	Black paint, Danfoss tag A
Settings	AC-2 parameter settings prototype 12V system F
Proposition 65	Cancer and Reproductive Harm
