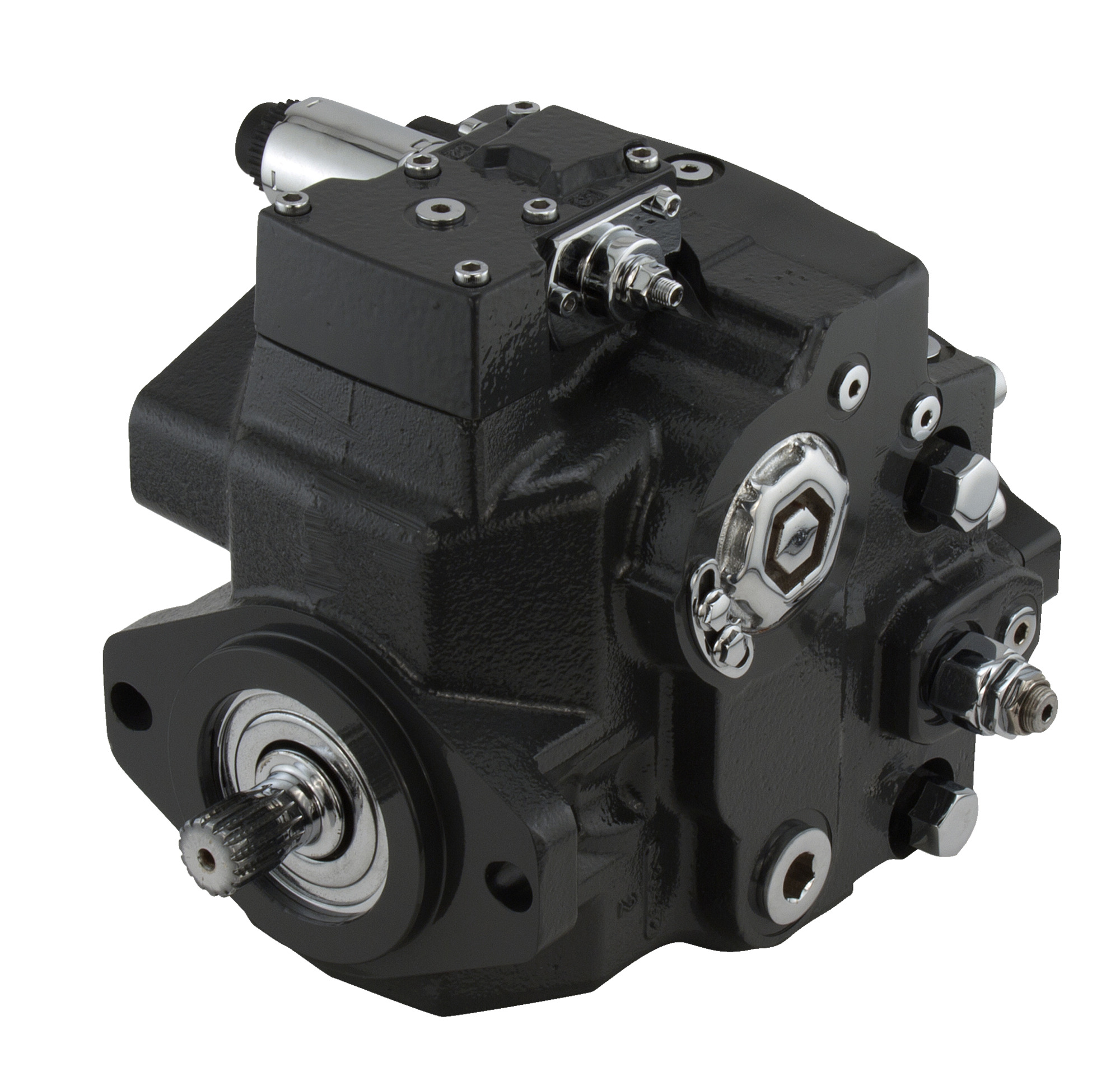

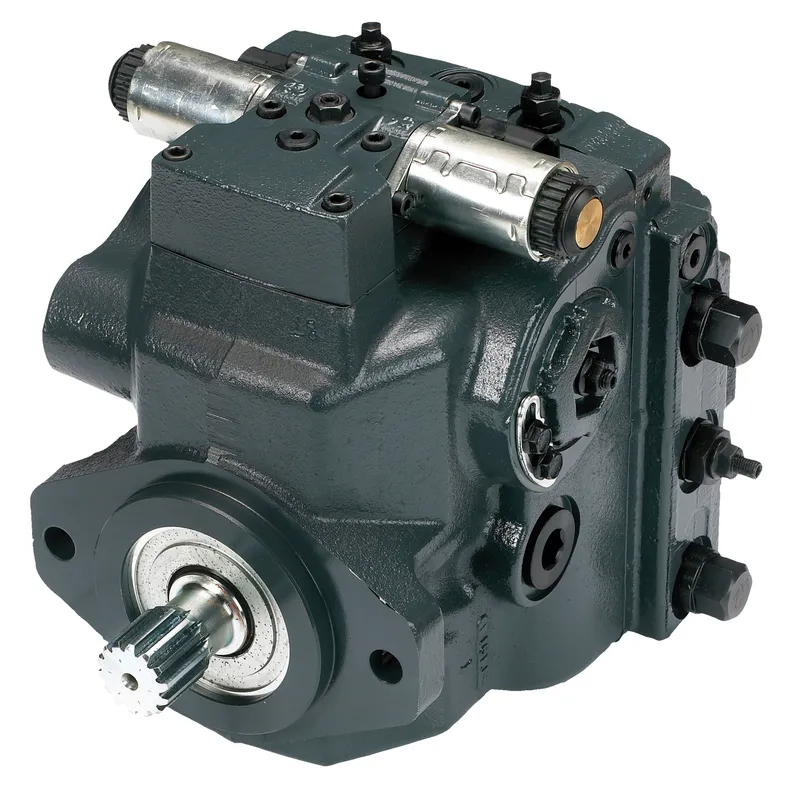

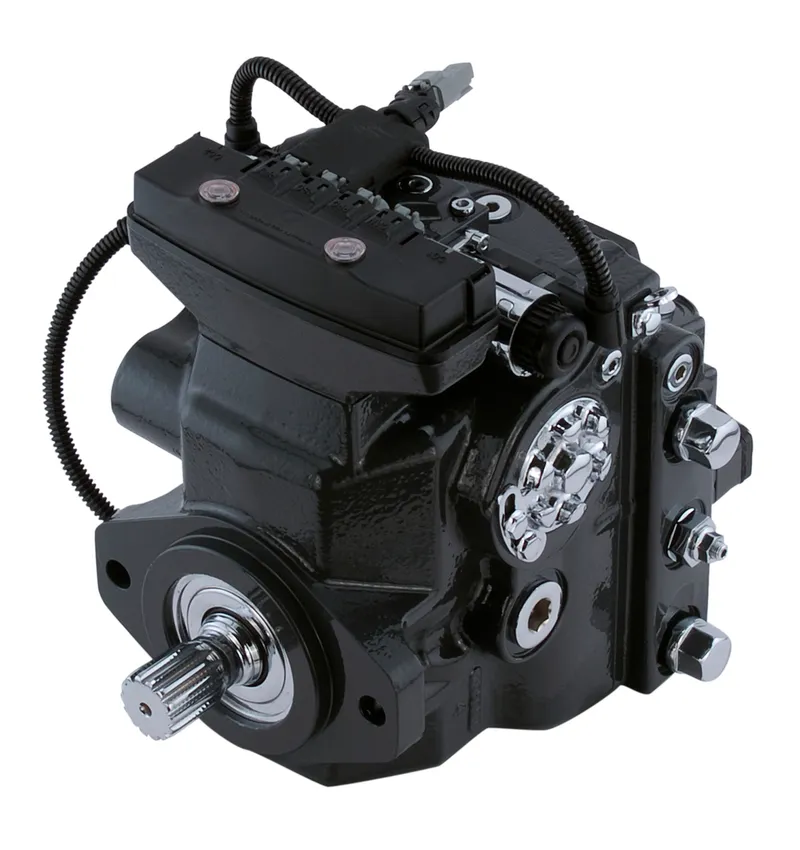

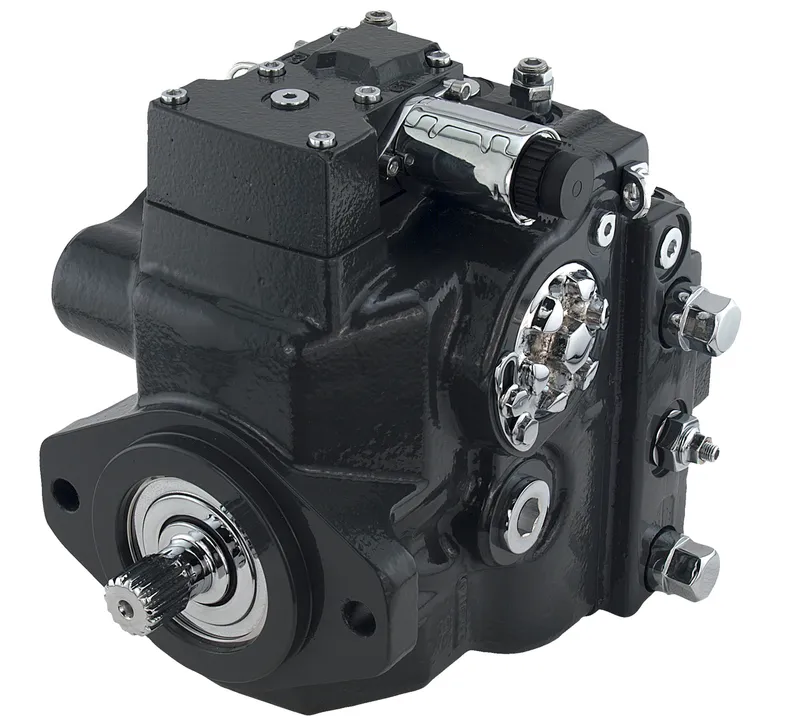

Danfoss 83024336

PUMP-VAR DISPL CCW H1P045L

MPN
83024336
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83024336?

Danfoss PUMP-VAR DISPL CCW H1P045L, manufacturer part number 83024336. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

SeriesH1 - Series
Product typeVariable pump
Frame Size45cc/rev max/variable displacement
RotationLeft hand - counterclockwise
Product versionProduct version A
Configuration of portsANSI O-ring boss port configuration
ControlElectrical displacement control, 12V Deutsch DT04-2P connector
OrificesP = none, A+B = 1.3mm, TA+TB = none
Displacement limitationNo limiters electrical displacement control/forward neutral reverse control
Endcap typeTwin port, O-ring boss, remote filter, high pressure relief valve only (use “J” pressure protection)
Mounting flangeSAE B 2 bolt flange (for installation of pump, M12 screws and hardened washers must be used)
Input shaft15 tooth, 16/32
Auxiliary pad13 tooth, B pad
Protection type side AHigh pressure relief valve only
High pressure setting side A180 bar
Protection type side BHigh pressure relief valve only
High pressure setting side B280 bar
Charge pump12cc/rev
FiltrationRemote full flow
Charge relief pressure setting28 bar charge pressure relief valve
Special hardware featuresElectrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametagBlack paint, Danfoss tag A
SettingsDefault, no special settings
Proposition 65Cancer and Reproductive Harm

83024336: frequently asked questions

When can 83024336 be shipped?

83024336 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83024336 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83024336 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83024336, subject to availability and destination.
