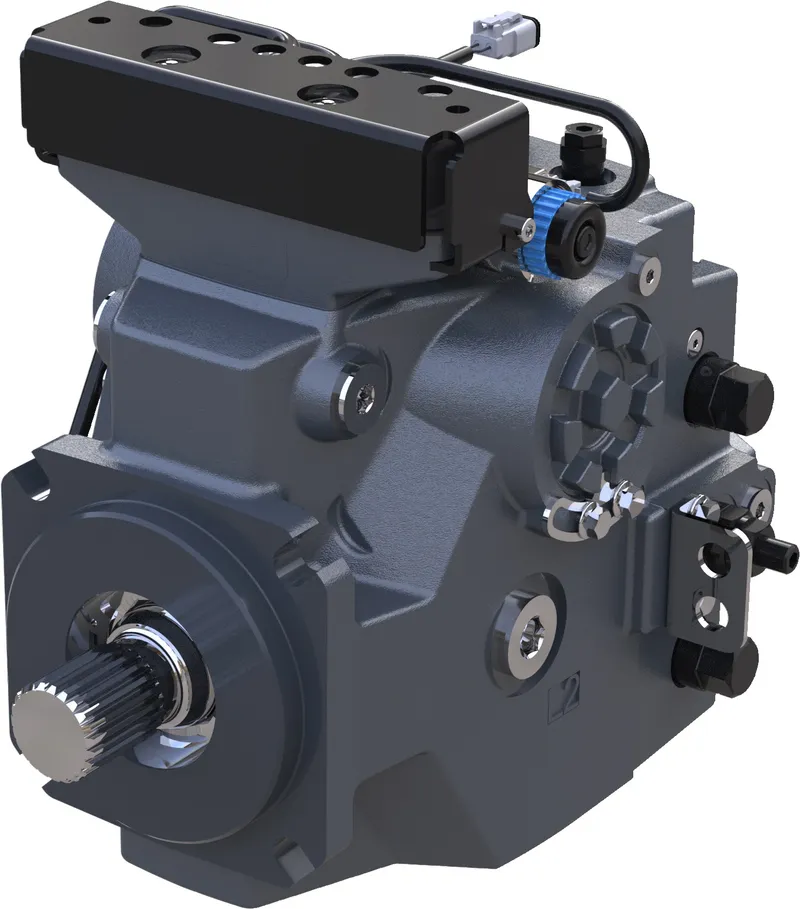

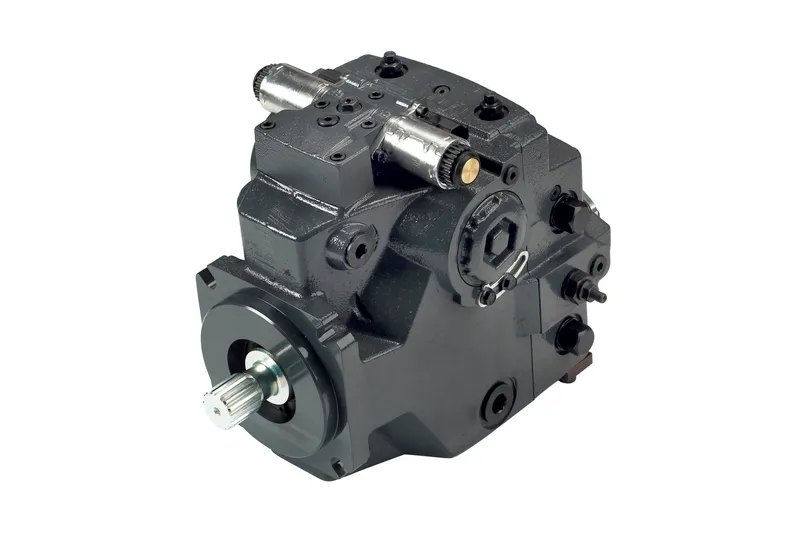

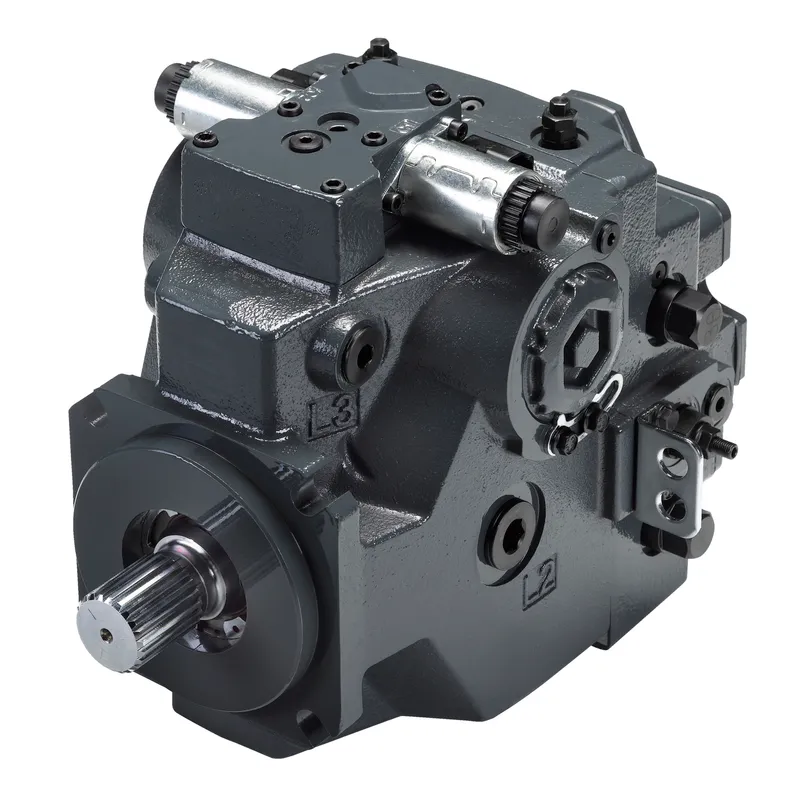

Danfoss 83023377

PUMP-VAR-DISPL CW H1PV069

MPN
83023377
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83023377?

Danfoss PUMP-VAR-DISPL CW H1PV069, manufacturer part number 83023377. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

SeriesH1 - Series
Product typeVariable pump
Frame Size69cc/rev max/variable displacement
RotationRight hand - clockwise
Product versionProduct version B
Configuration of portsANSI O-ring boss port configuration
ControlAC-1 (automotive), 12V, manual override
OrificesP = none, A+B = 1.3mm, TA+TB = none
Displacement limitationNo limiters automotive control/non-feedback proportional electric (nested springs)
Endcap typeTwin port, code 62 metric 4 bolt flange, suction filter
Mounting flangeSAE C 4 bolt flange + speed sensor
Input shaft23 tooth, 16/32
Auxiliary pad13 tooth, B pad
Protection type side AHigh pressure relief valve, pressure limiter plugs
High pressure setting side A450 bar
Protection type side BHigh pressure relief valve and pressure limiter plugs
High pressure setting side B450 bar
Charge pump17cc/rev
FiltrationSuction filtration
Charge relief pressure setting28 bar charge pressure relief valve
Special hardware featuresAutomative control /non-feedback proportional electric/fan drive contro valve plate + speed sensing
Paint and nametagBlack paint, Danfoss tag A
SettingsAC parameter settings prototype 12V system F
Proposition 65Cancer and Reproductive Harm
