What is the Danfoss 83019893?

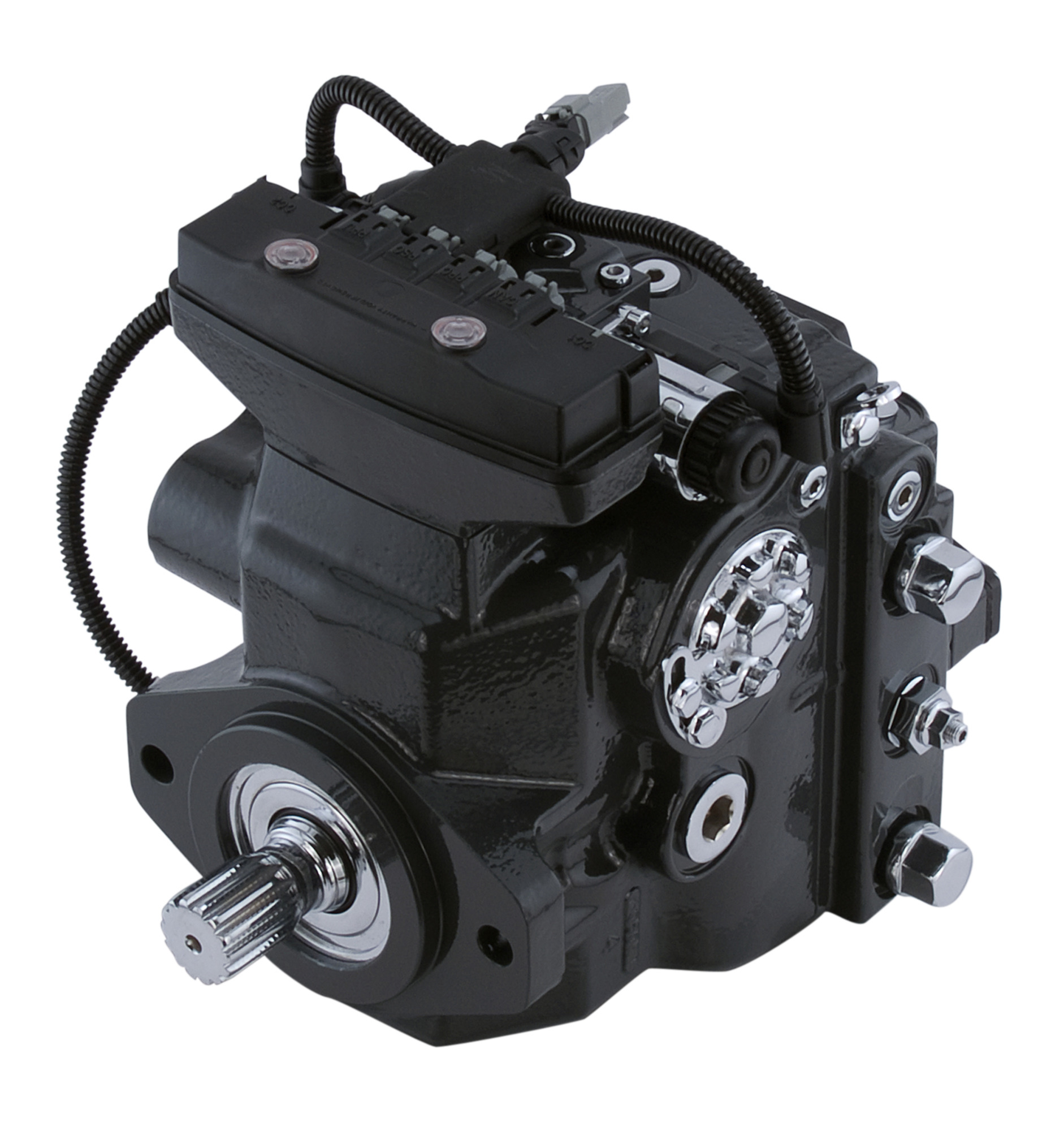

Danfoss PUMP-VAR DISPL CW H1P045R, manufacturer part number 83019893. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

SeriesH1 - Series
Product typeVariable pump
Frame Size45cc/rev max/variable displacement
RotationRight hand - clockwise
Product versionProduct version A
Configuration of portsANSI O-ring boss port configuration
ControlElectrical displacement control, 12V Deutsch DT04-2P connector
OrificesP = none, A+B = 1.3mm, TA+TB = none
Displacement limitationNo limiters electrical displacement control/forward neutral reverse control
Endcap typeTwin port, O-ring, suction filter, high pressure relief valve only (use “J” pressure protection)
Mounting flangeSAE B 2 bolt flange (for installation of pump, M12 screws and hardened washers must be used)
Input shaft15 tooth, 16/32
Auxiliary pad9 tooth, A pad
Protection type side AHigh pressure relief valve only
High pressure setting side A230 bar
Protection type side BHigh pressure relief valve only
High pressure setting side B180 bar
Charge pump12cc/rev
FiltrationSuction filtration
Charge relief pressure setting20 bar charge pressure relief valve
Special hardware featuresElectrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametagBlack paint, Danfoss tag A
SettingsDefault, no special settings
Proposition 65Cancer and Reproductive Harm
