Home / Danfoss (Drives) / Mobile closed-circuit piston pumps / Danfoss 83014189

Danfoss 83014189

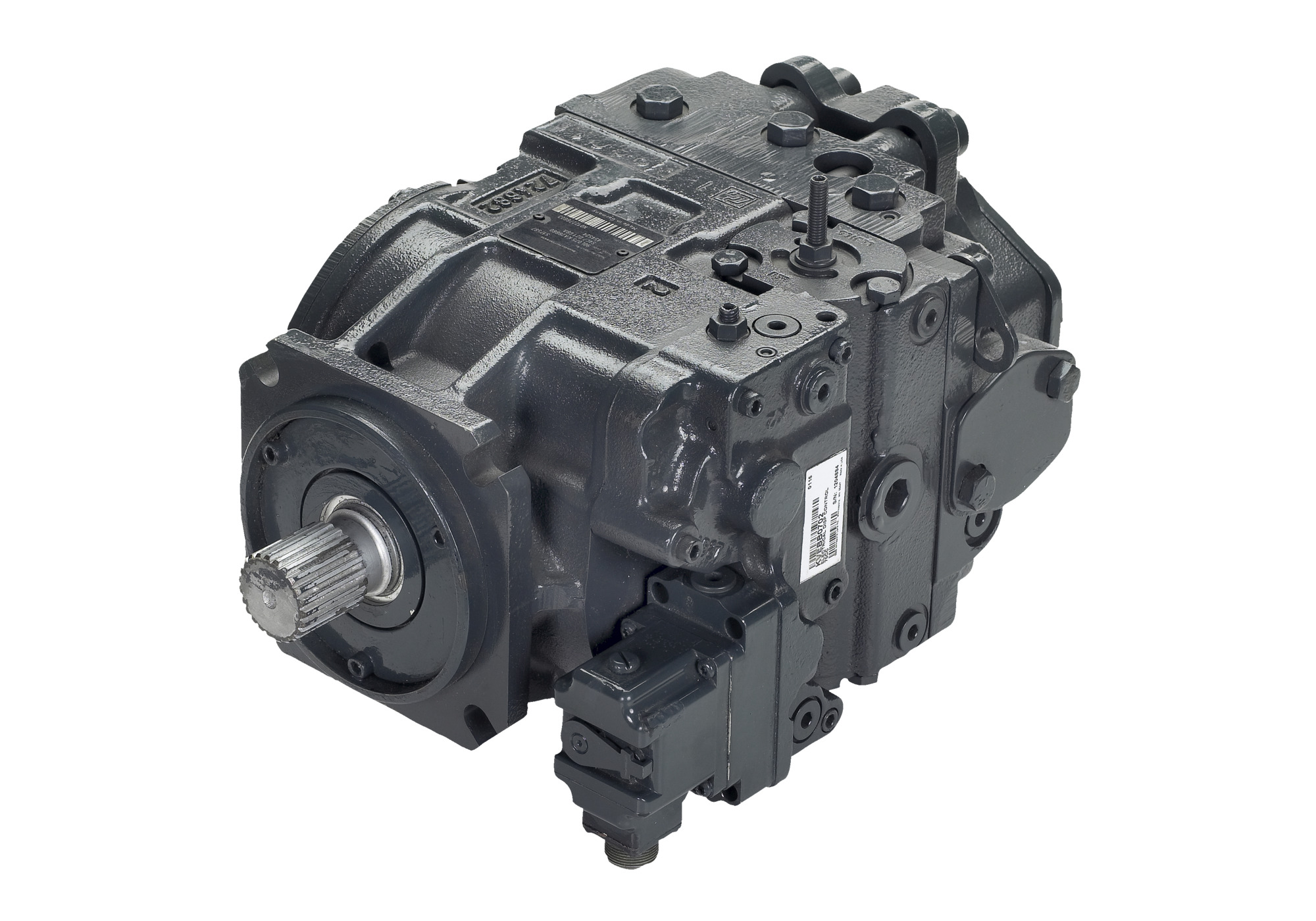

PUMP-VAR DISPL, CW 90PV075

MPN: 83014189
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83014189?

Danfoss PUMP-VAR DISPL, CW 90PV075, manufacturer part number 83014189. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: DISPLACEMENT LIMITATION	No Limiters
G: END CAP PORTS	twin ports
H: CHARGE PUMP	17 cc/rev
J: AUXILIARY MOUNTING PAD	no auxiliary mounting pad
K: CHARGE PRESSURE SETTING	24 bar
K: CHARGE PRS RELIEF	24 bar
L: SHAFT OPTIONS	tapered shaft diameter = 38,100 MM ( 1,500 IN )
M: CONTROL	ms-connector, standard porting, dual coil ( 14 - 85 mA)
N: FILTRATION	Suction
P: HIGH PRESSURE REGULATION	Port A & B: fast response PL, up to 450 bar settings
Proposition 65	Cancer and Reproductive Harm
Series 90 Displacement	75 Cubic Centimeters per Revolution
Series 90 Product Line	Series 90
Series 90 Rotation	Clockwise (Right hand) Rotation
T: CONTROL ORIFICES	MDC (P) 0,81 (TA) none* (TB) none* (A) none (B) none
W: SPECIAL HARDWARE FEATURES	CP15 +0.5 VALVE PLATE
Y: HIGH PRESSURE SETTING A	Port A = 350 Bar / 5070 PSI
Y: HIGH PRS SETTING PORT A	Port A = 350 Bar / 5070 PSI
Z: HIGH PRESSURE SETTING B	Port B = 350 Bar / 5070 PSI
Z: HIGH PRS SETTING PORT B	Port B = 350 Bar / 5070 PSI

83014189: frequently asked questions

When can 83014189 be shipped?

83014189 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83014189 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83014189 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83014189, subject to availability and destination.
