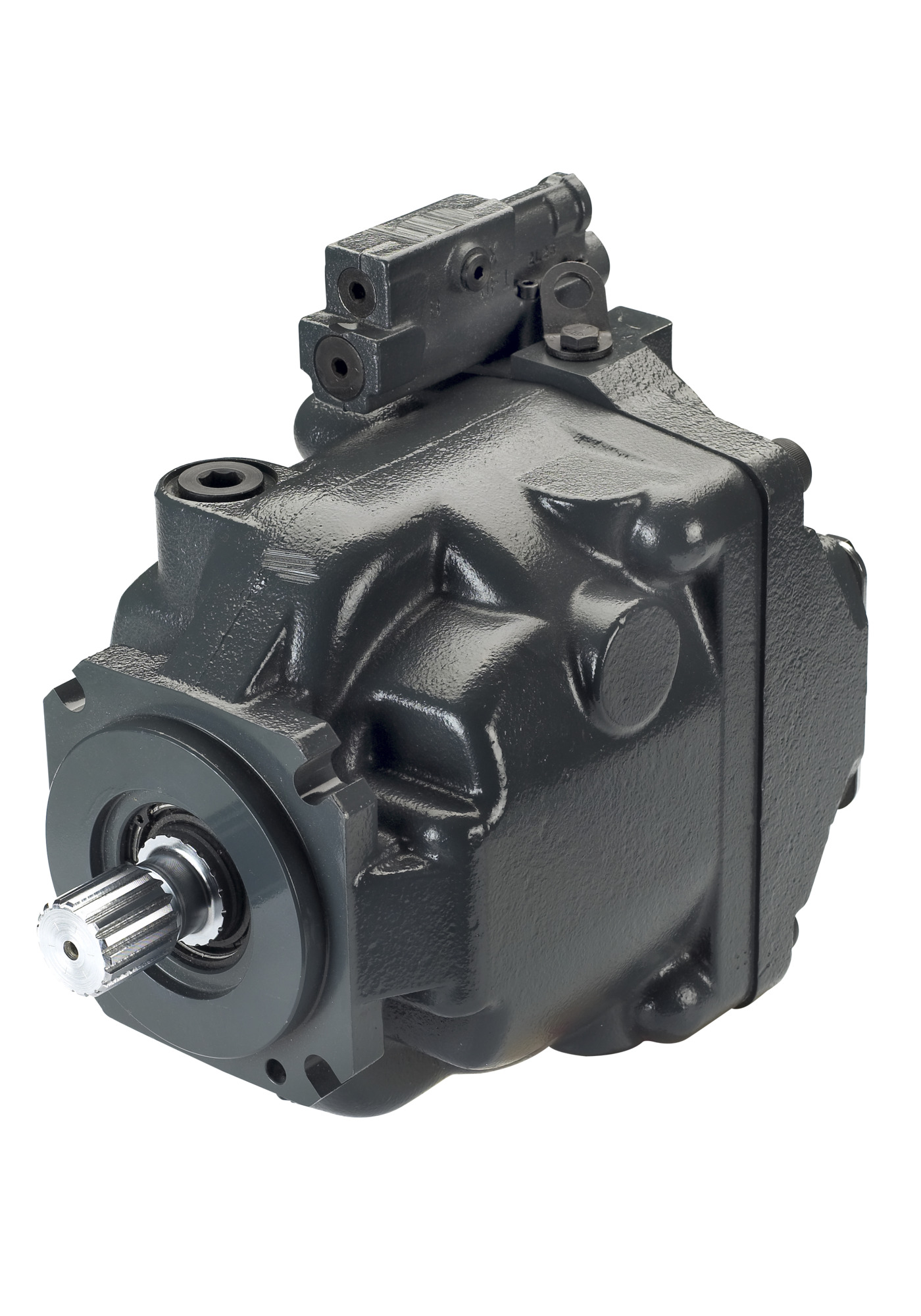

Danfoss 83014095

PUMP-VAR DISPL CCW S45PVOC_E

MPN
83014095
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83014095?

Danfoss PUMP-VAR DISPL CCW S45PVOC_E, manufacturer part number 83014095. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

FrameE frame axial piston open circuit pump
RotationCounter-clockwise rotation
Displacement and load life147 cc/rev - 260 bar maximum continuous rated pressure
Control typePressure compensated / load sensing [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar]
Pressure compensator setting170 bar [2465 psi]
Load sensing setting27 bar [392 psi]
Torque limiter settingNot applicable
Choke orificeNone
Gain orificeStandard orifice
Shaft, auxiliary flange, and endcap14 tooth 12/24 pitch shaft, no auxiliary, radial, inlet: 4-bolt split flange (2.5 inch port, 0.5 inch threads), outlet: 4-bolt split flange (1.25 inch port, 0.5 inch threads)
Shaft seal, front flange, and housing portsSingle Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports
Displacement limiterNone
Special hardwareSpecial hardware - none
Special featuresBlack paint, Danfoss tag
Proposition 65Cancer and Reproductive Harm

83014095: frequently asked questions

When can 83014095 be shipped?

83014095 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83014095 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83014095 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83014095, subject to availability and destination.
