Danfoss 83009564

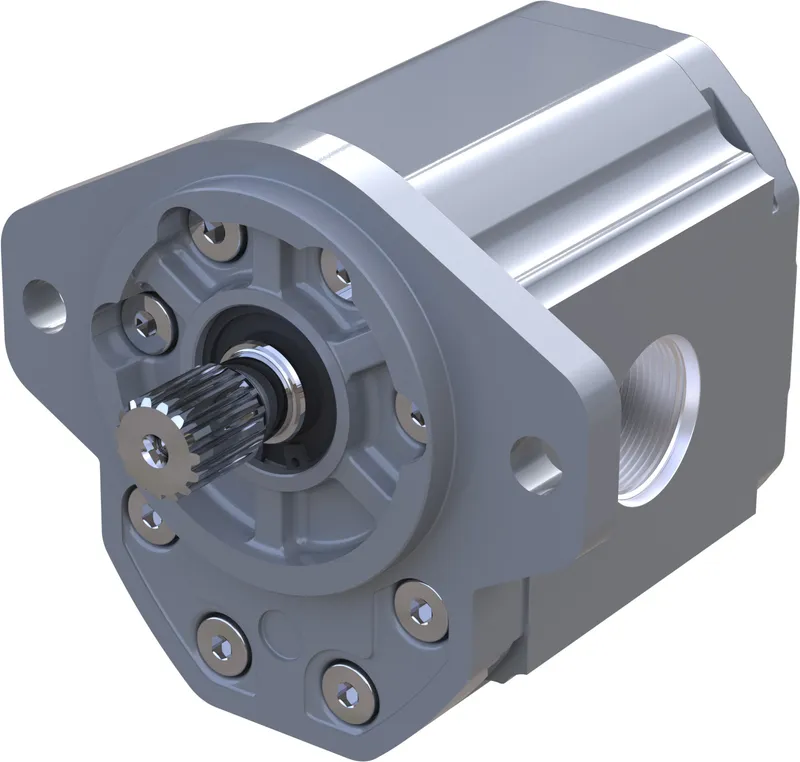

GEAR PUMP GR3 FIXED DISPL

MPN
83009564
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83009564?

Danfoss GEAR PUMP GR3 FIXED DISPL, manufacturer part number 83009564. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

B: DisplacementDisplacement 90 cc
C: RotationProduct with counter-clockwise rotation
D: Project versionStandard Version of Project
E: Mounting flangeFlange SAE b with pilot D.101,6 and 2 holes for bolts
F: Drive gearSplined SAE J498-13T-16/32-Dp Class 1FIT -for flange SAE 'B' ; rear spline DIN 5482 22 x 19 L=16,5 SC47
G: Rear coverNot assigned (with intermediate flange instead cover)
H: Inlet size31x1-7/8-12UN
I: Outlet size27x1-5/8-12UN
J: Ports positionStandard from catalogue
K: SealsStandard seal
L: ScrewsScrews standard
M: Valve settingwithout setting
N: Mark typeStandard Marking
O-Ring, Inside DiameterSlash
O: Mark positionPosition Marking standard
Proposition 65Cancer and Reproductive Harm
Single Stage FamilyGr3 Main stage
Slash separatorSlash

83009564: frequently asked questions

When can 83009564 be shipped?

83009564 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83009564 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83009564 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83009564, subject to availability and destination.
