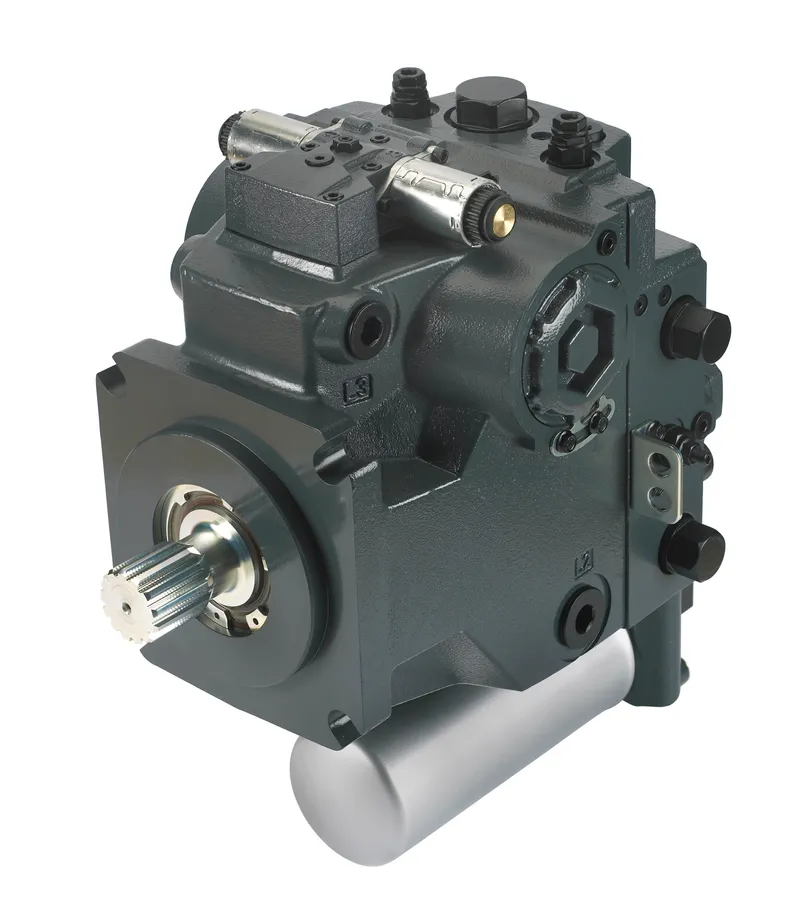

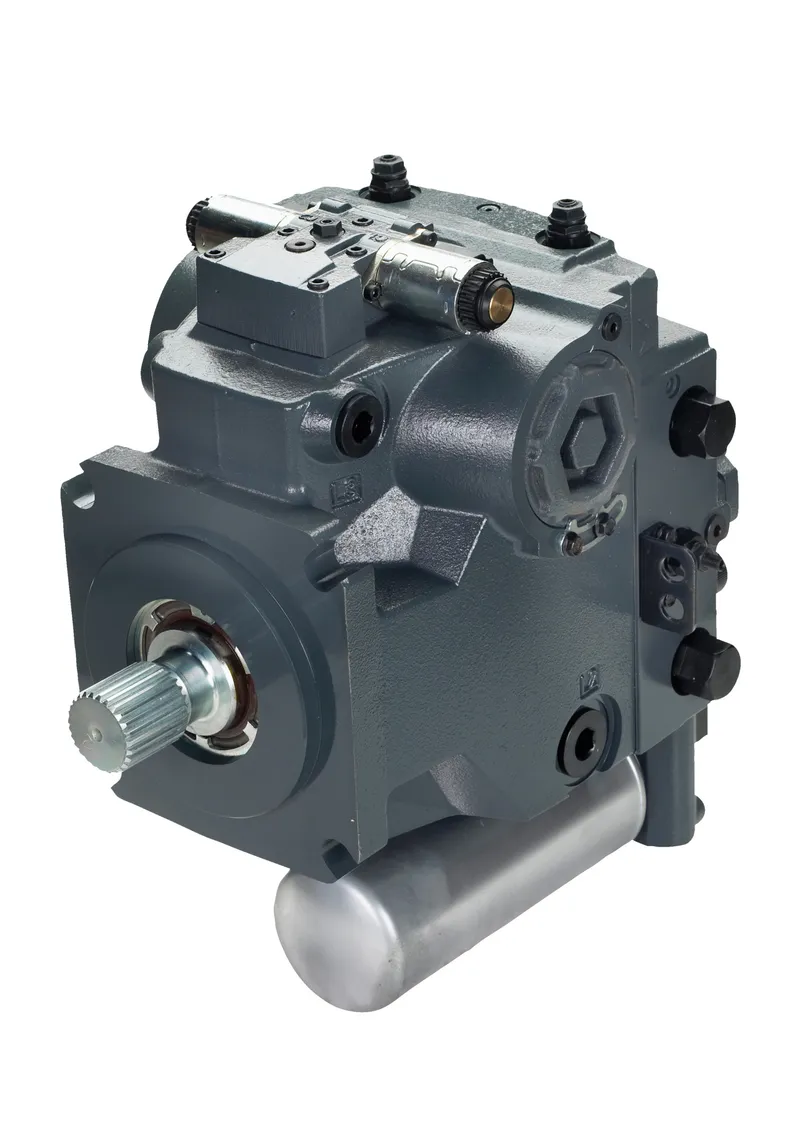

Danfoss 83009556

PUMP-VAR-DISPL CW H1PV165

MPN
83009556
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83009556?

Danfoss PUMP-VAR-DISPL CW H1PV165, manufacturer part number 83009556. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

SeriesH1 - Series
Product typeVariable pump
Frame Size165cc/rev max/variable displacement
RotationRight hand - clockwise
Product versionProduct version D
Configuration of portsANSI O-ring boss port configuration
ControlElectrical displacement control, 24V Deutsch DT04-2P connector, manual override
OrificesP = none, A+B = 1.3mm, TA+TB = none
Displacement limitationNo limiters electrical displacement control/forward neutral reverse control
Endcap typeTwin port, code 62 metric 4 bolt flange, integral pressure filter
Mounting flangeSAE D 4 bolt flange
Input shaft44.45mm taper without key
Auxiliary pad14 tooth, C pad
Protection type side APressure limiter, high pressure relief valve
High pressure setting side A280 bar
Protection type side BHigh pressure relief valve + pressure limiter
High pressure setting side B280 bar
Charge pump26cc/rev
FiltrationIntegral full flow with filter bypass sensor
Charge relief pressure setting24 bar charge pressure relief valve
Special hardware featuresElectrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle
Paint and nametagBlack paint, Danfoss tag A
SettingsDefault, no special settings
Proposition 65Cancer and Reproductive Harm

83009556: frequently asked questions

When can 83009556 be shipped?

83009556 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83009556 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83009556 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83009556, subject to availability and destination.
