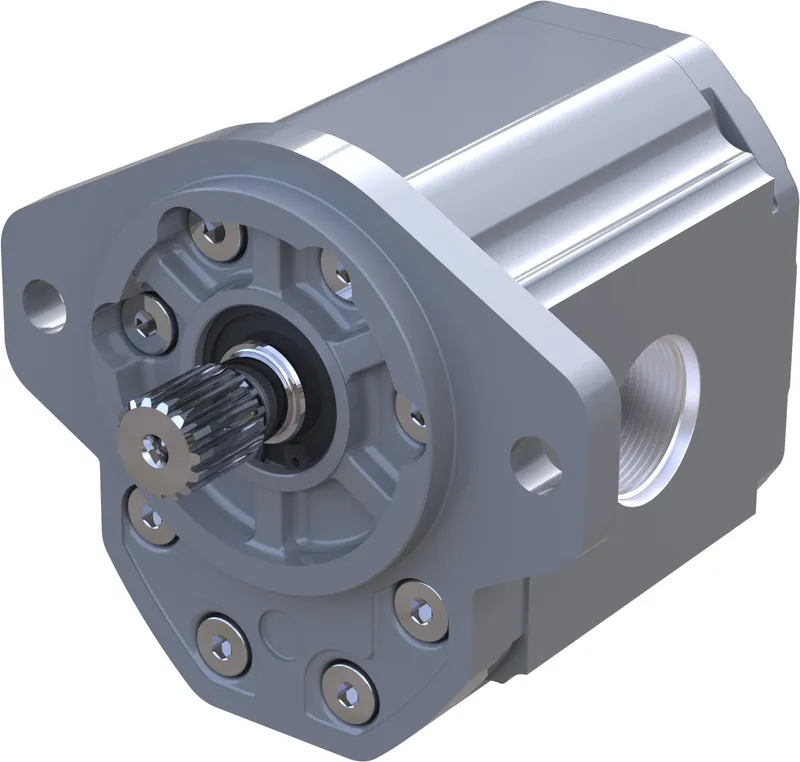

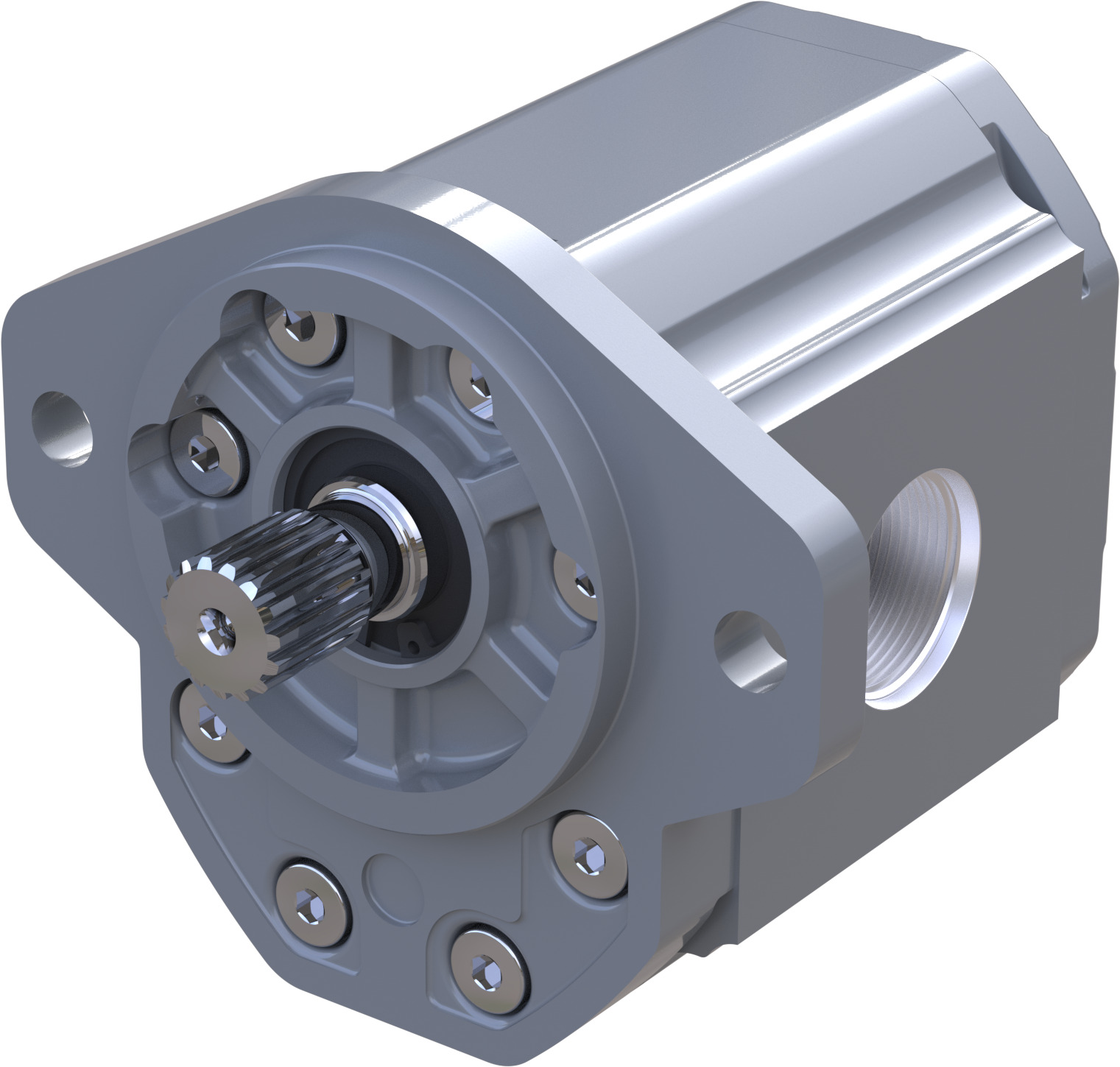

Danfoss 83009542

GEAR PUMP GR3 FIXED DISPL

MPN: 83009542
Category: GearMe single stage

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83009542?

Danfoss GEAR PUMP GR3 FIXED DISPL, manufacturer part number 83009542. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

B: Displacement	Displacement 75 cc
C: Rotation	Product with counter-clockwise rotation
D: Project version	Standard Version of Project
E: Mounting flange	Flange with pilot D.50.8 and 4 holes for bolts (98,4x137)
F: Drive gear	Taper 1:8 - M14 x 1,5 - Key = 4 CO01-CO02
G: Rear cover	Standard cover for pump
H: Inlet size	36x62xM10
I: Outlet size	27x51xM10
J: Ports position	Standard from catalogue
K: Seals	Standard seal
L: Screws	Screws standard
M: Valve setting	without setting
N: Mark type	Standard Marking
O-Ring, Inside Diameter	Slash
O: Mark position	Position Marking standard
Proposition 65	Cancer and Reproductive Harm
Single Stage Family	Gr3 Pump
Slash separator	Slash
