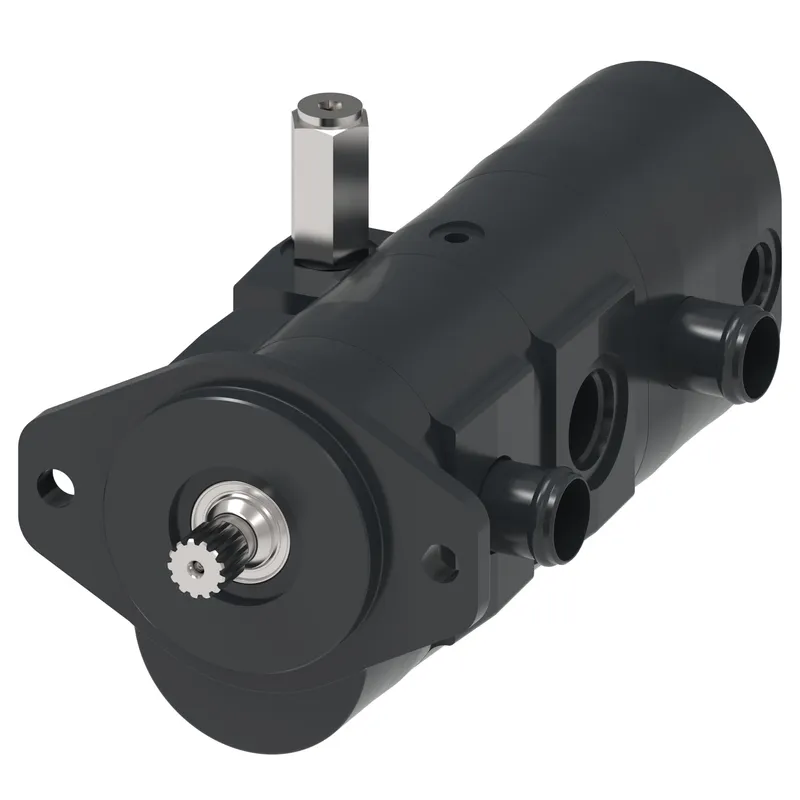

Danfoss 83006195

GEAR PUMP-LH, QUAD DISPL

MPN: 83006195
Category: Rugid cast iron gear pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 83006195?

Danfoss GEAR PUMP-LH, QUAD DISPL, manufacturer part number 83006195. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Product	D-series left-hand quadruple
Front displacement and input drive	25.4cc / splined shaft: SAE 13 tooth spline x 1.62 inch extension
Mounting flange	SAE B 2 bolt
Porting after first section	Bearing plate, 1 5/16-12 ORB inlet, 1 1/16-12 ORB outlet
Second section displacement	22.5 cc [1.37 CIR]
Porting after second section	(N)PORTS,1 5/16",1 1/16" ORB
Third section displacement	10: 9.5cc [0.58 CIR]
Porting prior to rear cover	Bearing plate, no inlet, 1 1/16-12 ORB outlet
Rear displacement	9.5cc [0.58 CIR]
Rear cover and porting	Cover, no inlet, 1 1/16-12 ORB outlet
Control setting	No controls
Relief valve pressure	No relief valve
Screws	BT: Screws
Nameplate	Standard nameplate
Special features	Standard black paint
Proposition 65	Cancer and Reproductive Harm

83006195: frequently asked questions

When can 83006195 be shipped?

83006195 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 83006195 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 83006195 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 83006195, subject to availability and destination.
