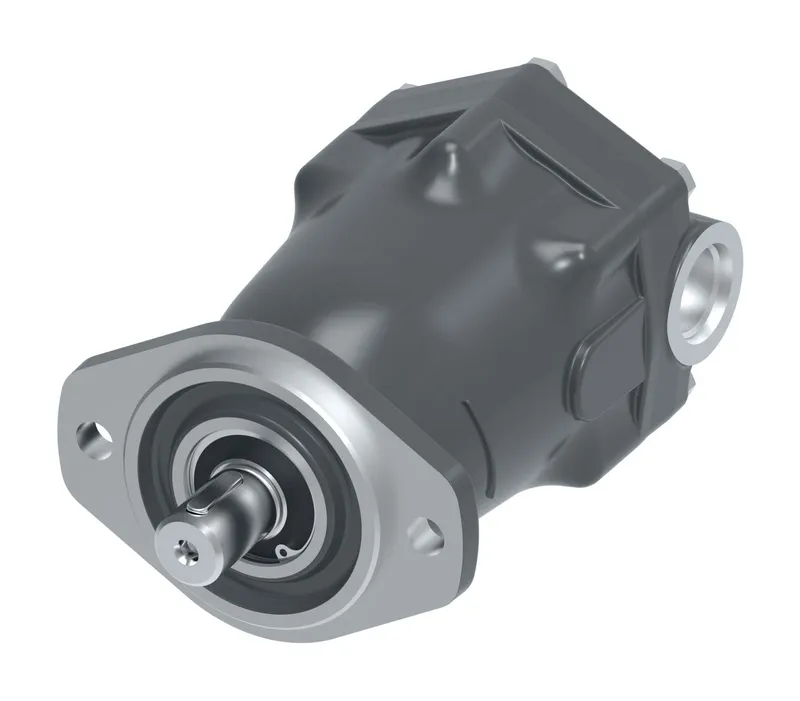

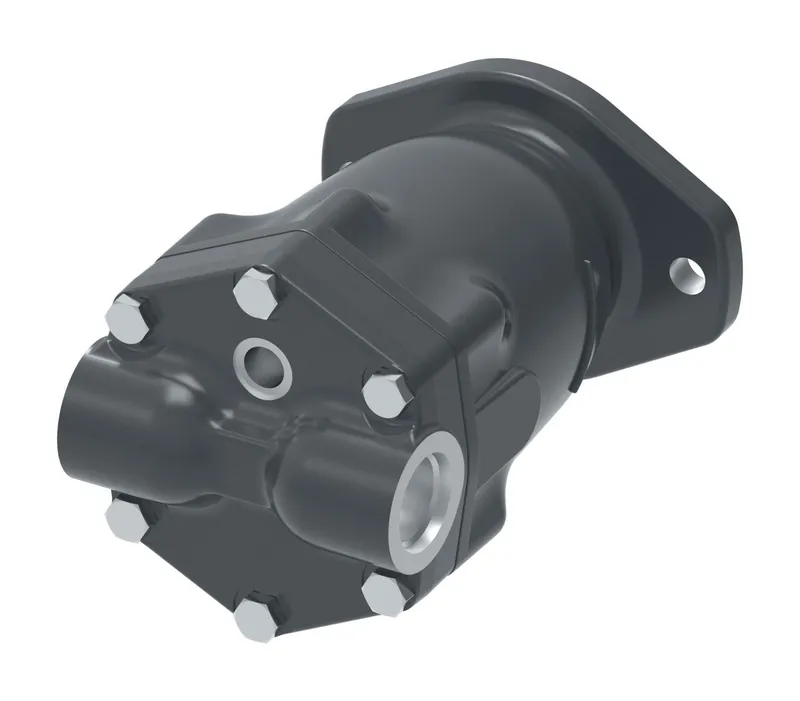

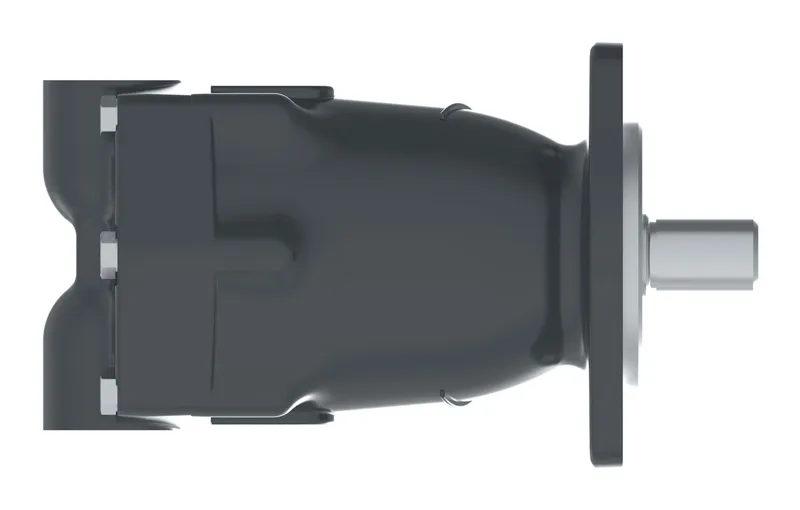

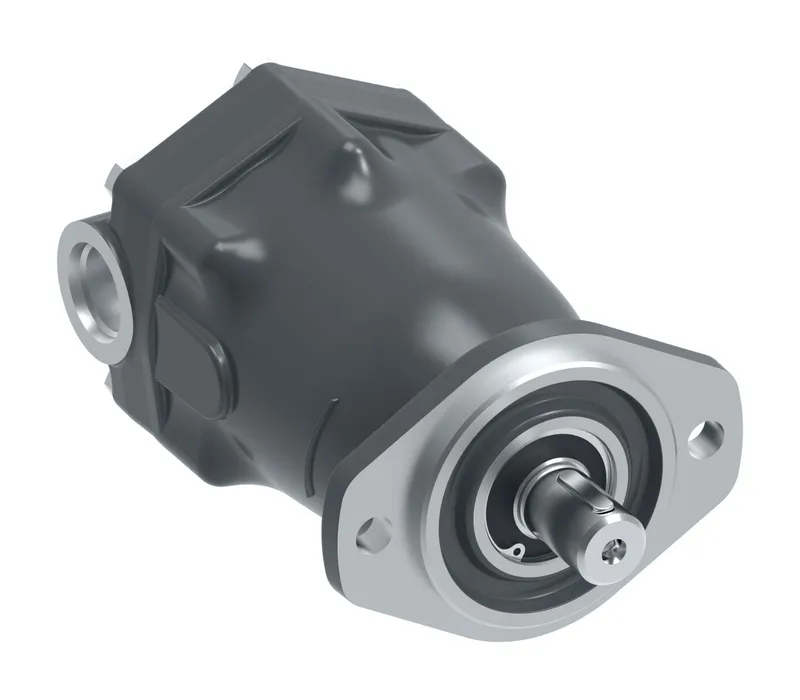

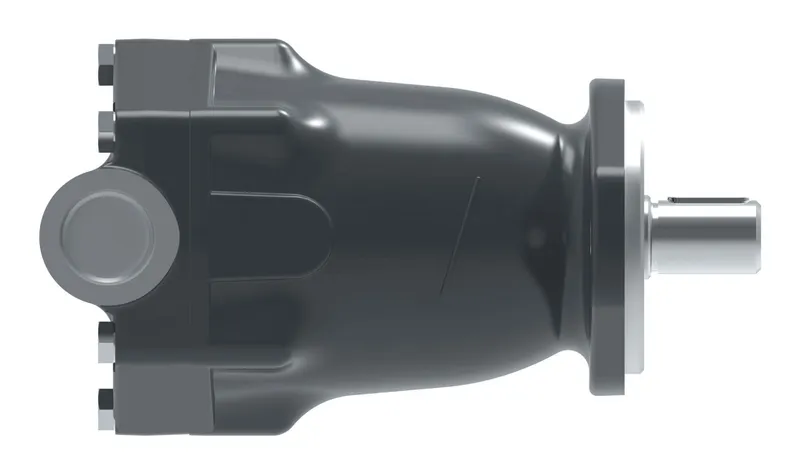

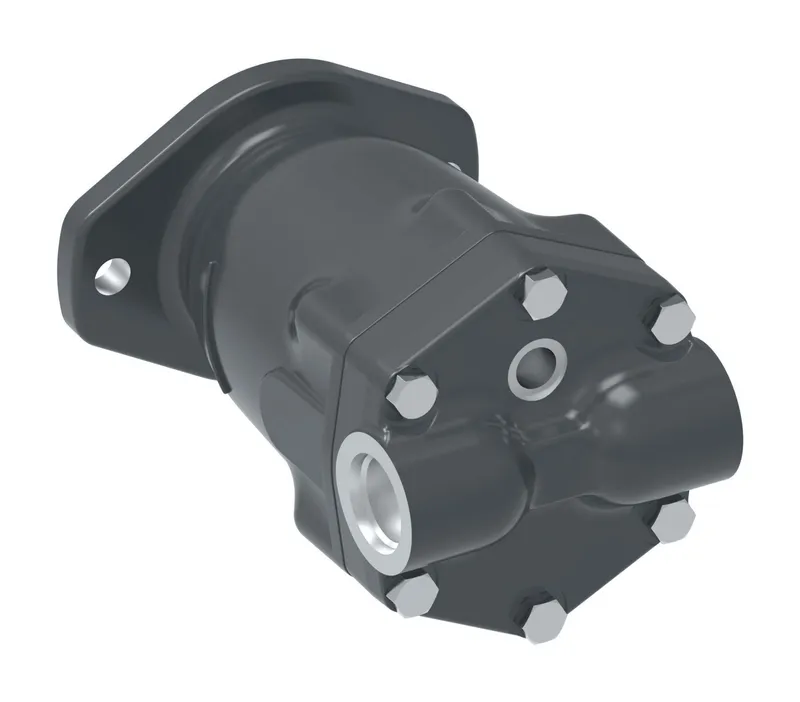

MOTOR-FIXED DISP, 741XX-10CC, AAVAHAB0C000B0B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Fixed displacement axial piston motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 74119-DAM-01 be shipped?
74119-DAM-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 74119-DAM-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 74119-DAM-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 74119-DAM-01, subject to availability and destination.
Danfoss MOTOR-FIXED DISP, 741XX-10CC, AAVAHAB0C000B0B, manufacturer part number 74119-DAM-01. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Aux mounting features rear | None |
| CODE TITLE | 20.3 cm3/r [1.24in3/r] fixed displacement piston motor |
| Design code | Valve plate |
| Displacement options | 9.8 cm3/r [.60 in3/r] destroked from 20.3 cm3/r [1.24 in3/r] |
| Drain ports size and location | .5625-18 UNF-2B SAE o-ring ports - lower rear (backplate) |
| Flow rate gpm | 11.7 |
| Flow rate lpm | 44.2 |
| Identification | Standard |
| Main ports size and location | 1.0625-12 UN-2B SAE o-ring ports - opposite sides |
| Maximum output speed | 4500 |
| Maximum temperature C | 107.00 |
| Maximum temperature F | 225.00 |
| Model Code 1 | AAVAHAB0C000B0B |
| Mounting Flange | 2-bolt-A |
| Output shaft | Diameter 22.3 [.88] taper .125:1, keyway 6.35 X 25.4 [.25 X 1.00], .625-18 UNF-2A, shaft extension 66.5 [2.62] (key included) |
| Output torque lbf-in2 | 484.7 |
| Output torque Nm | 54.8 |
| Paint | Black per spec 209-13B |
| Product height in | 4.720 |
| Product height mm | 119.888 |
| Product length in | 9.570 |
| Product length mm | 243.078 |
| Product width in | 5.120 |
| Product width mm | 130.048 |
| Special features | None |
| Working pressure bar | 350 |
| Working pressure psi | 5076 |
