Danfoss 74111-DAF-01

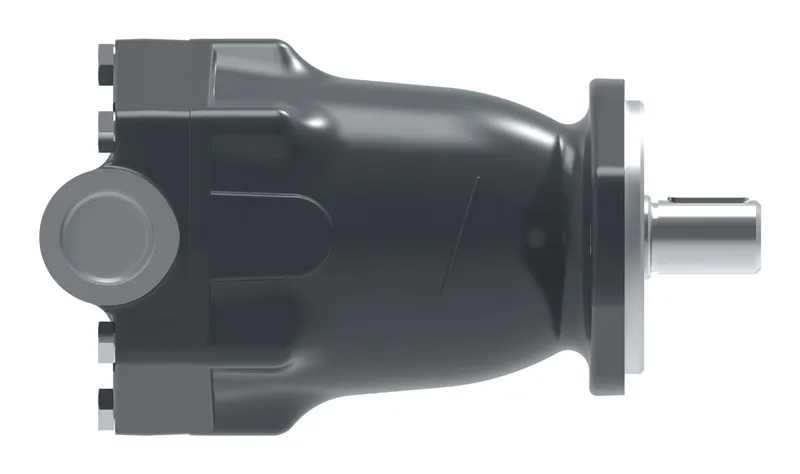

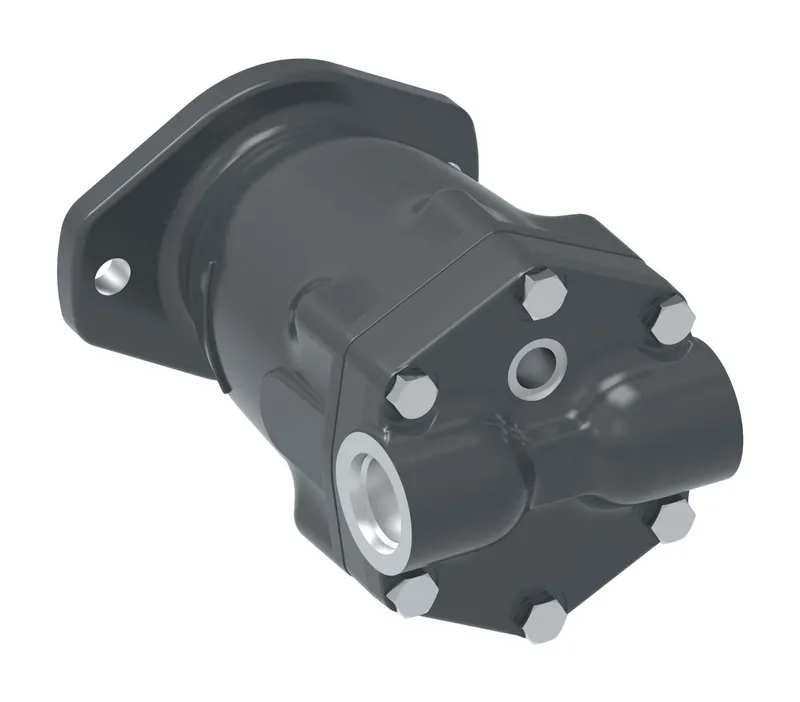

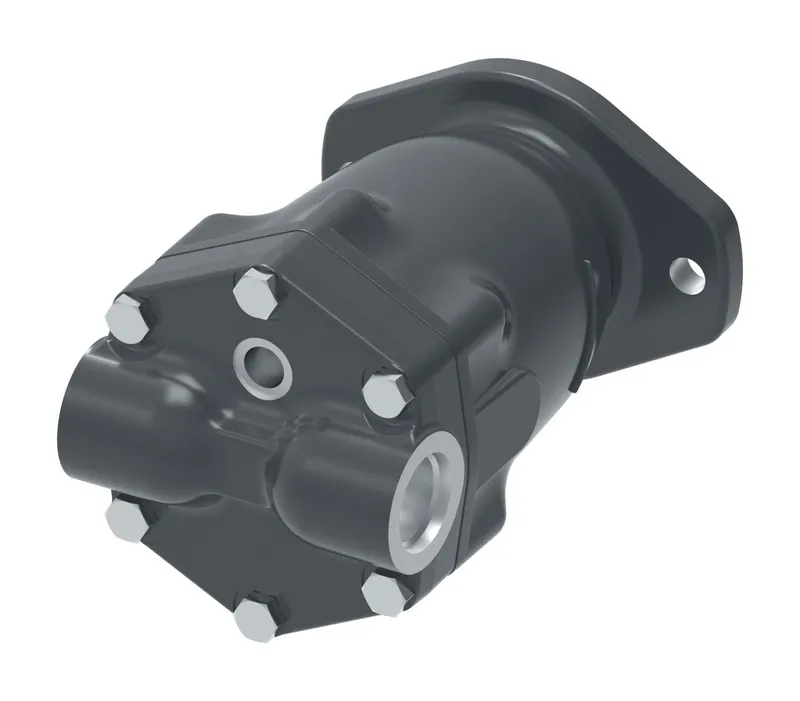

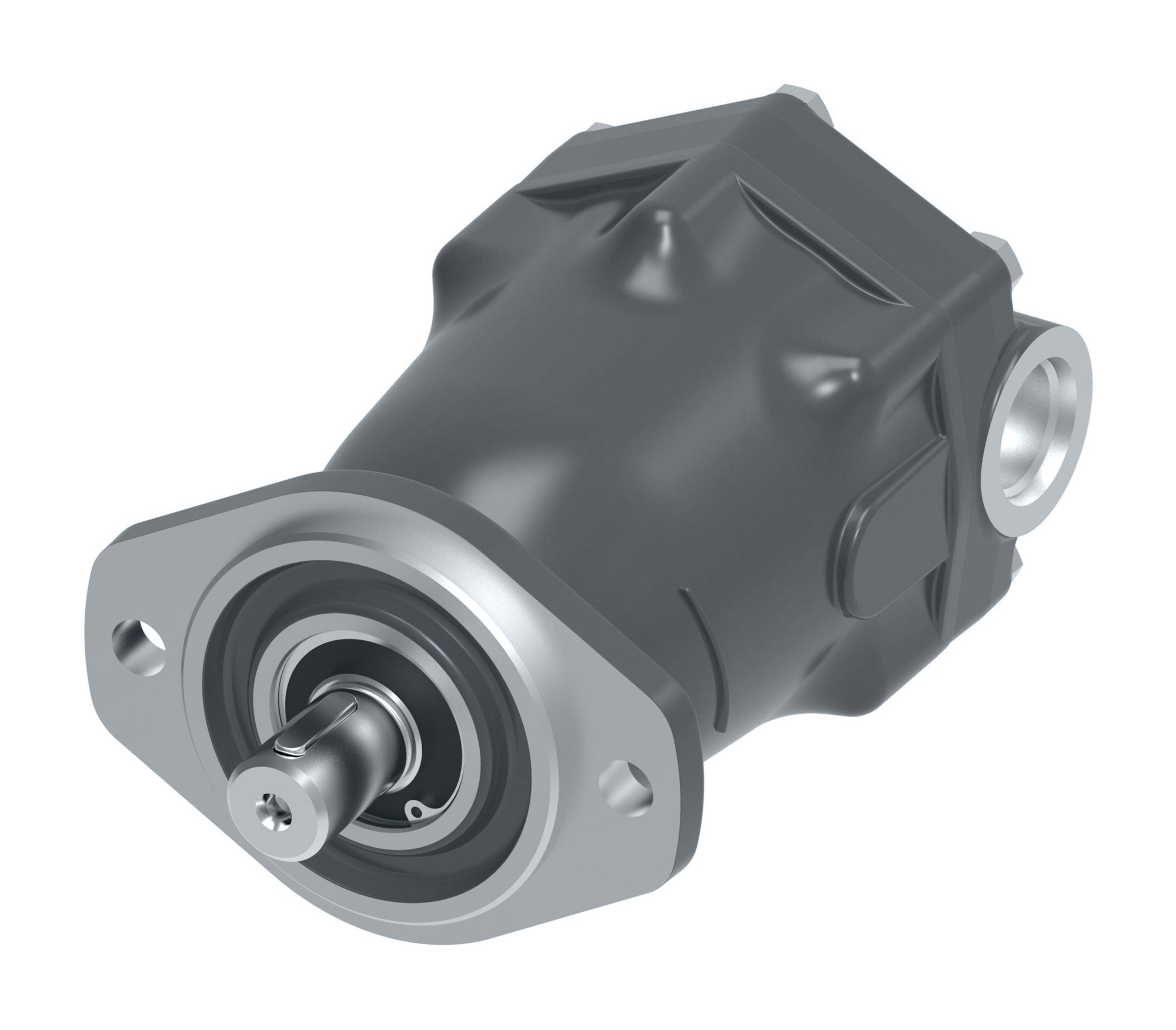

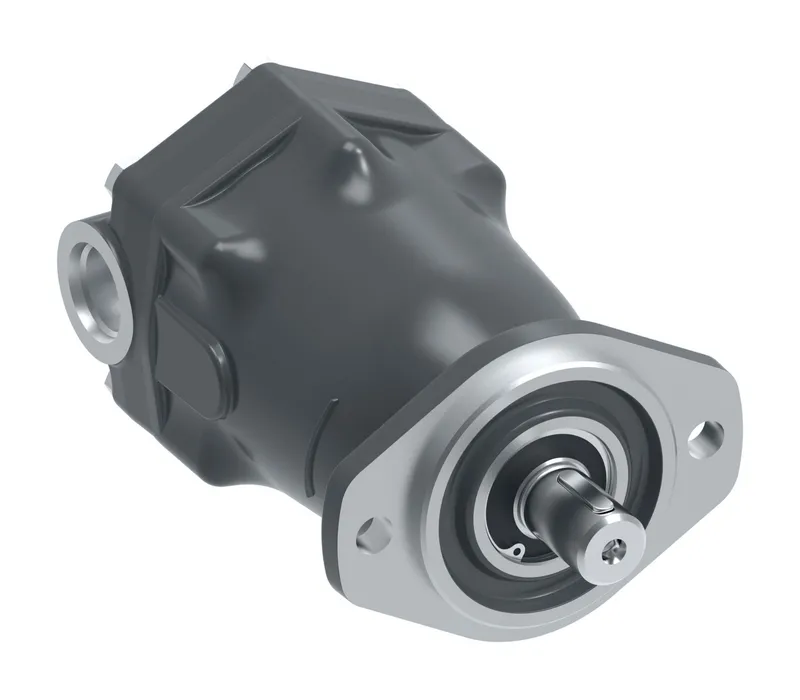

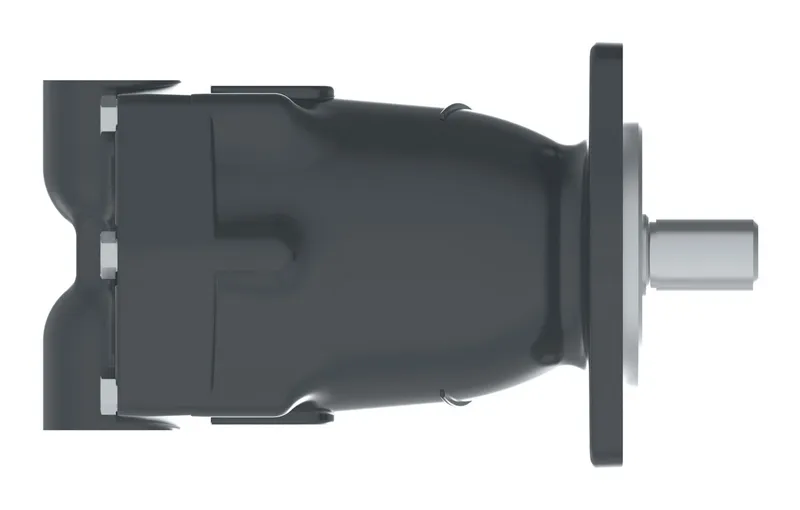

MOTOR-FIXED DISP, 741XX-12CC, AAVAEAA0B000A0B

MPN: 74111-DAF-01
Category: Fixed displacement axial piston motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 74111-DAF-01?

Danfoss MOTOR-FIXED DISP, 741XX-12CC, AAVAEAA0B000A0B, manufacturer part number 74111-DAF-01. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Aux mounting features rear	None
CODE TITLE	20.3 cm3/r [1.24in3/r] fixed displacement piston motor
Design code	Valve plate
Displacement options	12.3 cm3/r [.75 in3/r] destroked from 20.3 cm3/r [1.24 in3/r]
Drain ports size and location	.5625-18 UNF-2B SAE o-ring ports - upper rear (backplate)
Flow rate gpm	14.6
Flow rate lpm	55.3
Identification	Standard
Main ports size and location	1.0625-12 UN-2B SAE o-ring ports - opposite sides
Maximum output speed	4500
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	AAVAEAA0B000A0B
Mounting Flange	2-bolt-A
Output shaft	Straight shaft diameter 22.22 [.875], keyway 6.35 X 25.4 [.250 X 1.00], shaft extension 41.1 [1.62] (key included)
Output torque lbf-in2	605.9
Output torque Nm	68.5
Paint	Primer per spec 209-13A
Product height in	4.720
Product height mm	119.888
Product length in	8.570
Product length mm	217.678
Product width in	5.120
Product width mm	130.048
Special features	None
Working pressure bar	350
Working pressure psi	5076
