Danfoss 72400-TBD-04

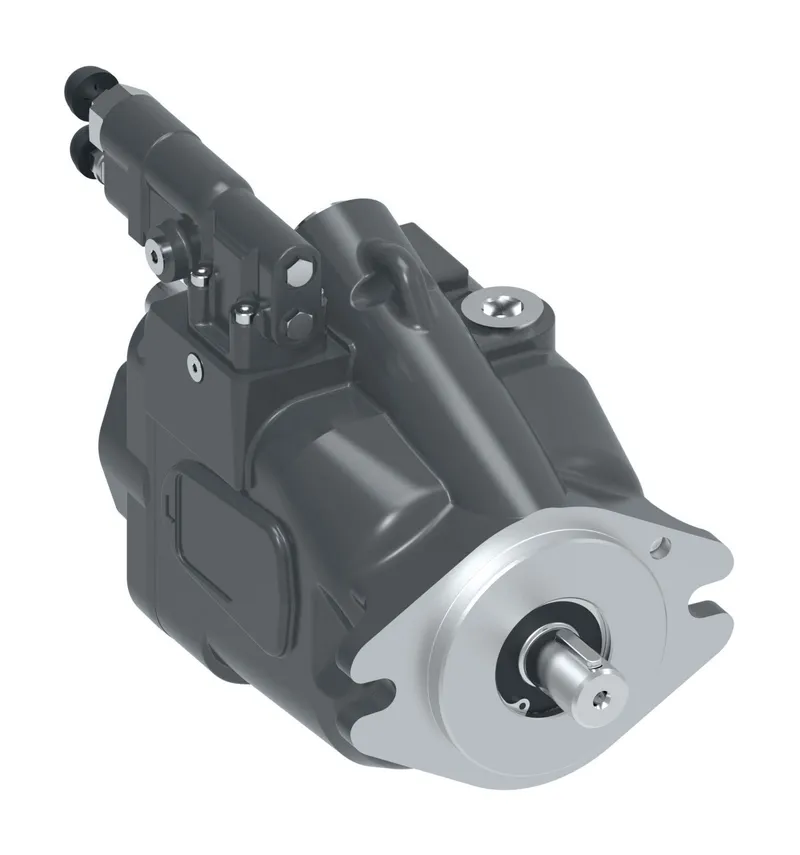

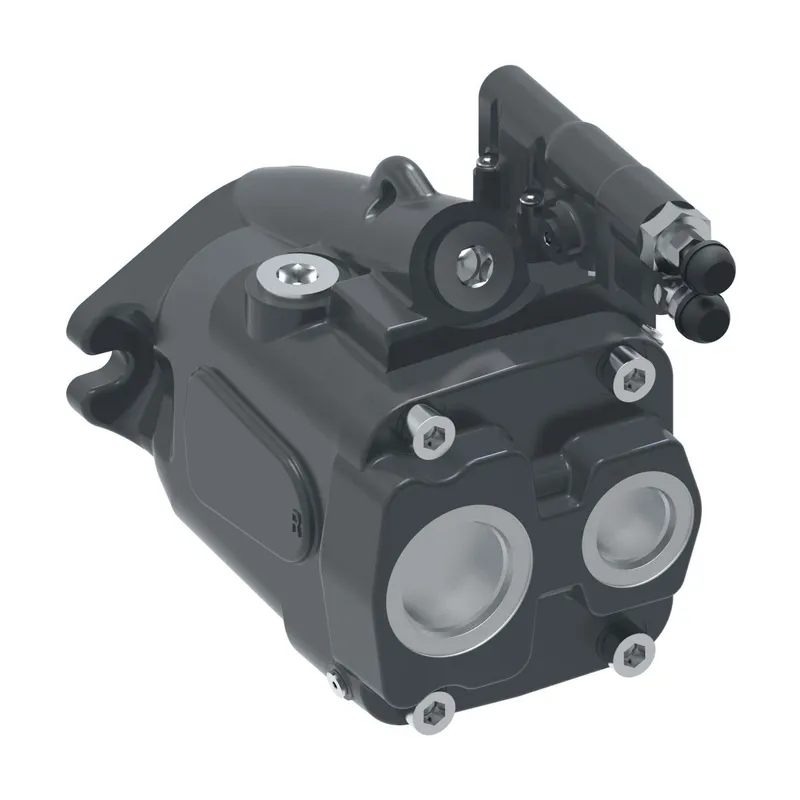

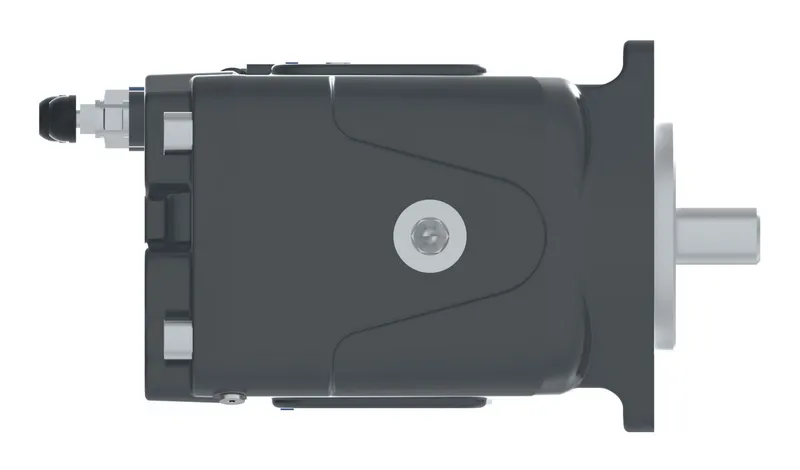

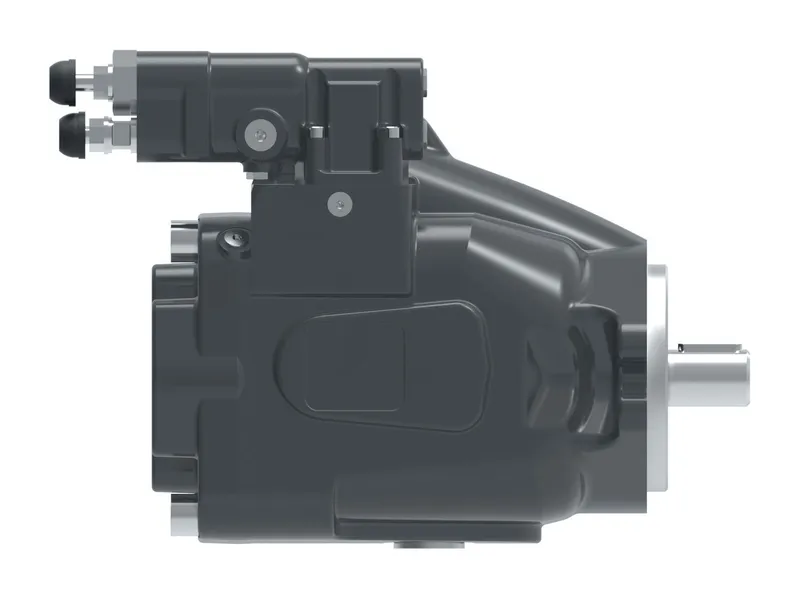

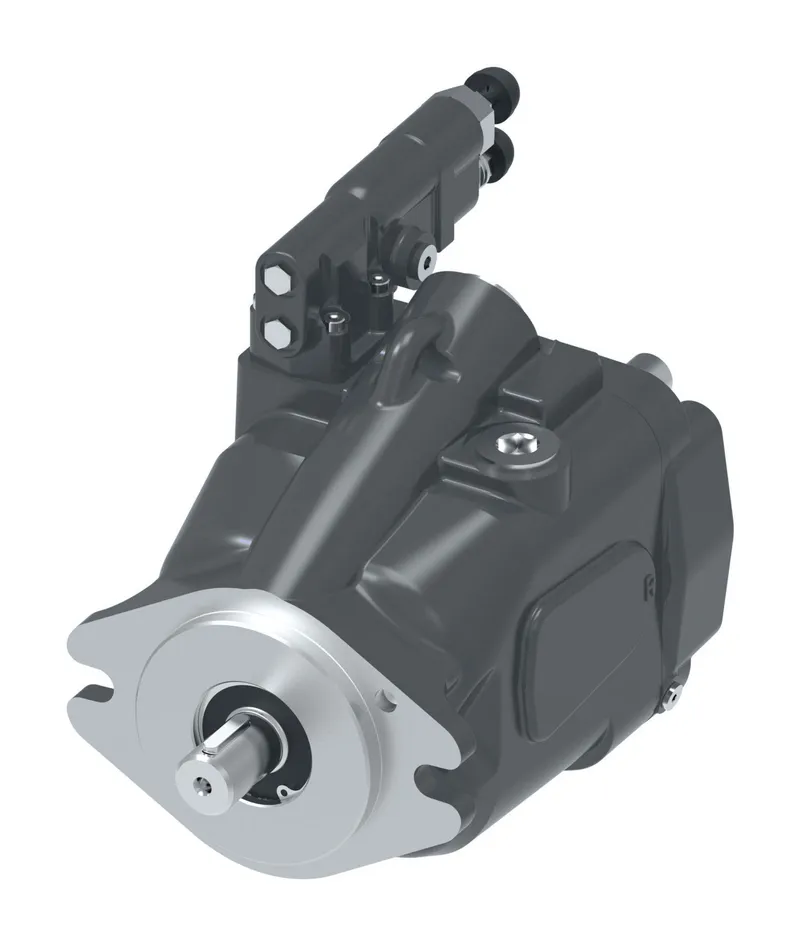

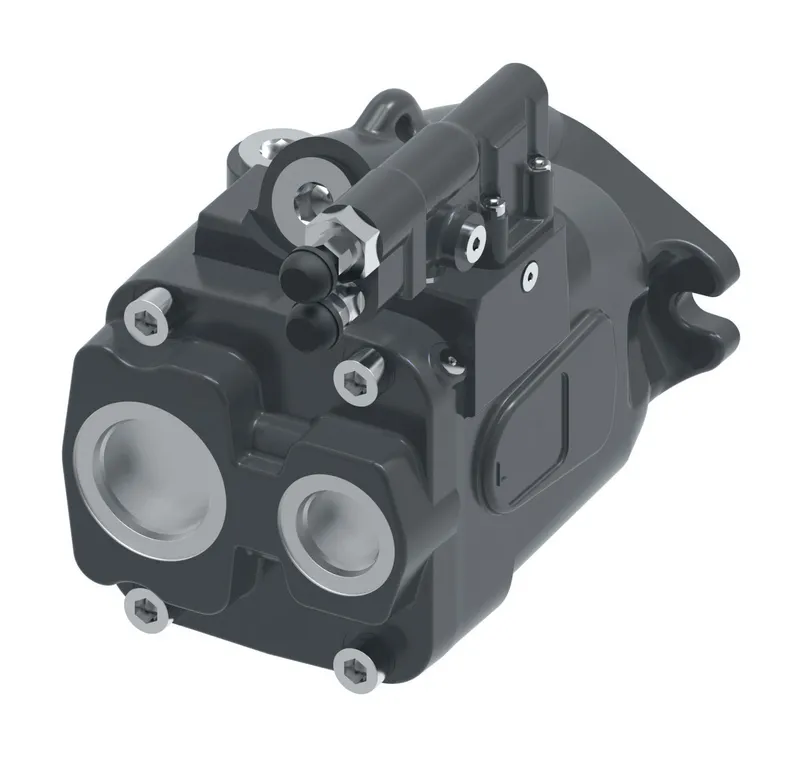

2.48 in3/r SERVO CONTROL, AADRALJ24EE2NNAM00C000A000D

MPN: 72400-TBD-04
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 72400-TBD-04?

Danfoss 2.48 in3/r SERVO CONTROL, AADRALJ24EE2NNAM00C000A000D, manufacturer part number 72400-TBD-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional functions	Bypass valve
Aux mounting features rear	[2-BOLT B] SAE flange series 101-2, with charge adaptor
Aux port size and location	.750-16 UNF-2B SAE o-ring port - left (C1) & right(C2) sides (housing), both sides plugged
Brand	Danfoss
Charge pump	13.8 cm3/r [.84 in3/r] with 1.3125-12 UN-2B SAE o-ring port for suction inlet (S)
CODE TITLE	40.6 cm3/r [2.48 in3/r] servo controlled variabledisplacement pump
Control assembly	Manual Control, no additional features
Control servo orf S1 and S2	No control servo orifice
Control supply orifice P	Diameter 0.91 [.036]
CPRV setting and routing	17.24-20.68 bar [250-300 lbf/in2] relieved to case; 1.3125-12 UN-2B SAE o-ring port for charge pressure discharge (C3) (to remotefilter), .875-14 UNF-2B SAE o-ring port for charge pressure inlet (C4) (return from filter)
Design code	D
Destroke valve	Not required
Drain port size and location	1.0625-12 UN-2B SAE o-ring port - left (D1) & right (D2) sides, left side plugged; thru drain into rear auxiliary flange (D3)
Flow rate gpm	38.6
Flow rate lpm	146.3
Identification	Standard
Input shaft	15 tooth 16/32 external, diameter 24.98 [.984], shaft extension 46 [1.81]
Input shaft rotation	Right hand rotation (ccw)
Main port size and location	1.3125-12 UN-2B SAE o-ring port (A & B) - left side
Maximum output speed	3600
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	AADRALJ24EE2NNAM00C000A000D
Mounting Flange	2-bolt-B
Output shaft	13 tooth 16/32 internal, diameter 21.81 [.858] accepts shaft extension 41.1 [1.62]
Output torque lbf-in2	1578.8
Output torque Nm	178.4
Paint	Primer per spec 209-13A
Product height in	7.360
Product height mm	186.944
Product length in	13.460
Product length mm	341.884
Product width in	8.430
Relief vlv set for main port A	275.8 bar [4000 lbf/in2]
Relief vlv set for main port B	275.8 bar [4000 lbf/in2]
Special control options	No special control options
Special features	No special features
Working pressure bar	276
Working pressure psi	4000
