Home / Danfoss (Drives) / PUMP-VAR DISP, 72400PV41 CW, AADRAAA13EE1LLAM00A000A000D

Available on request

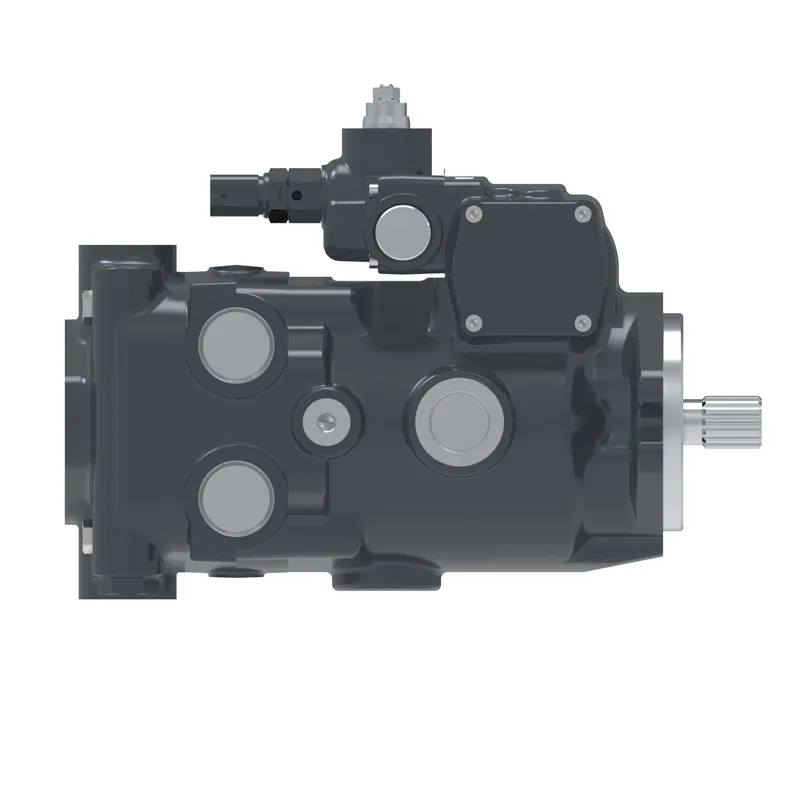

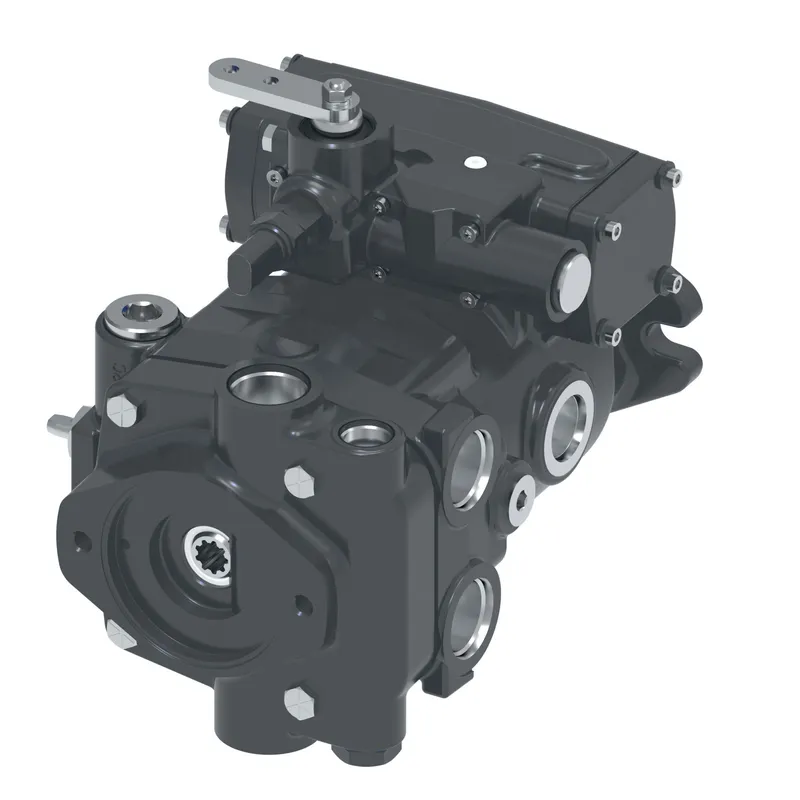

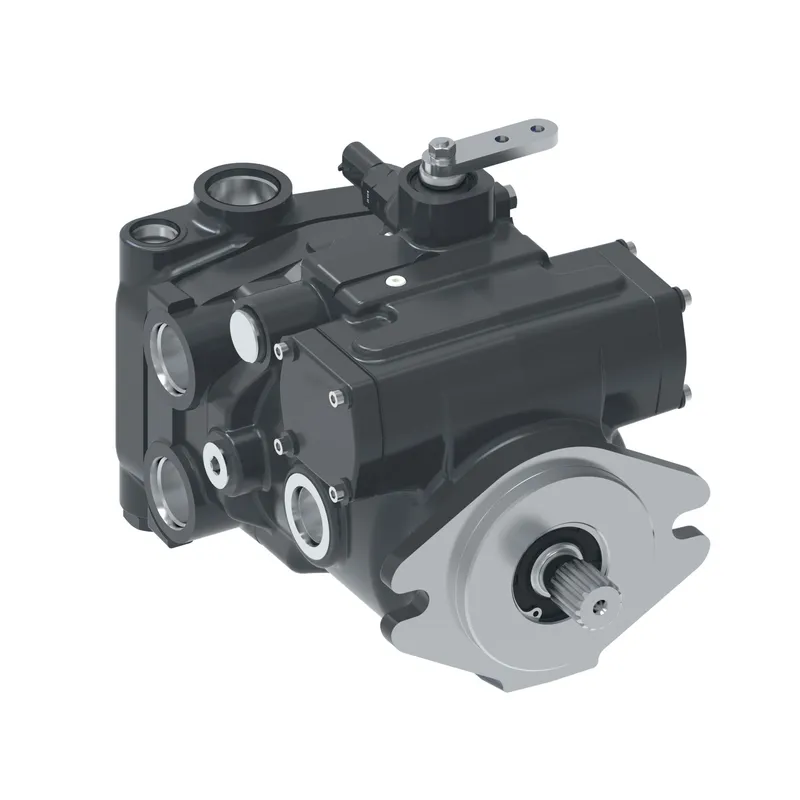

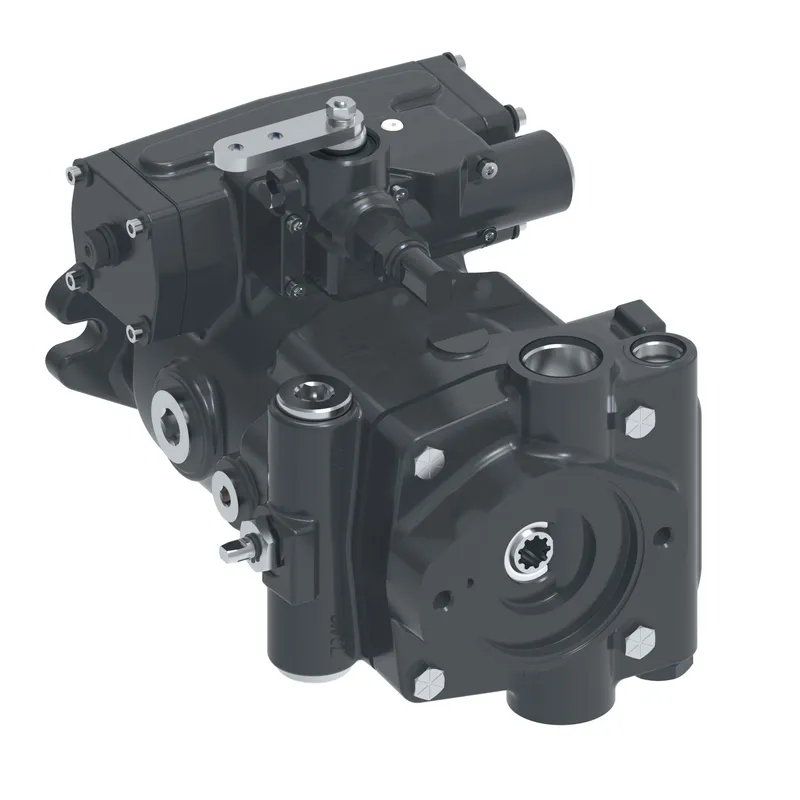

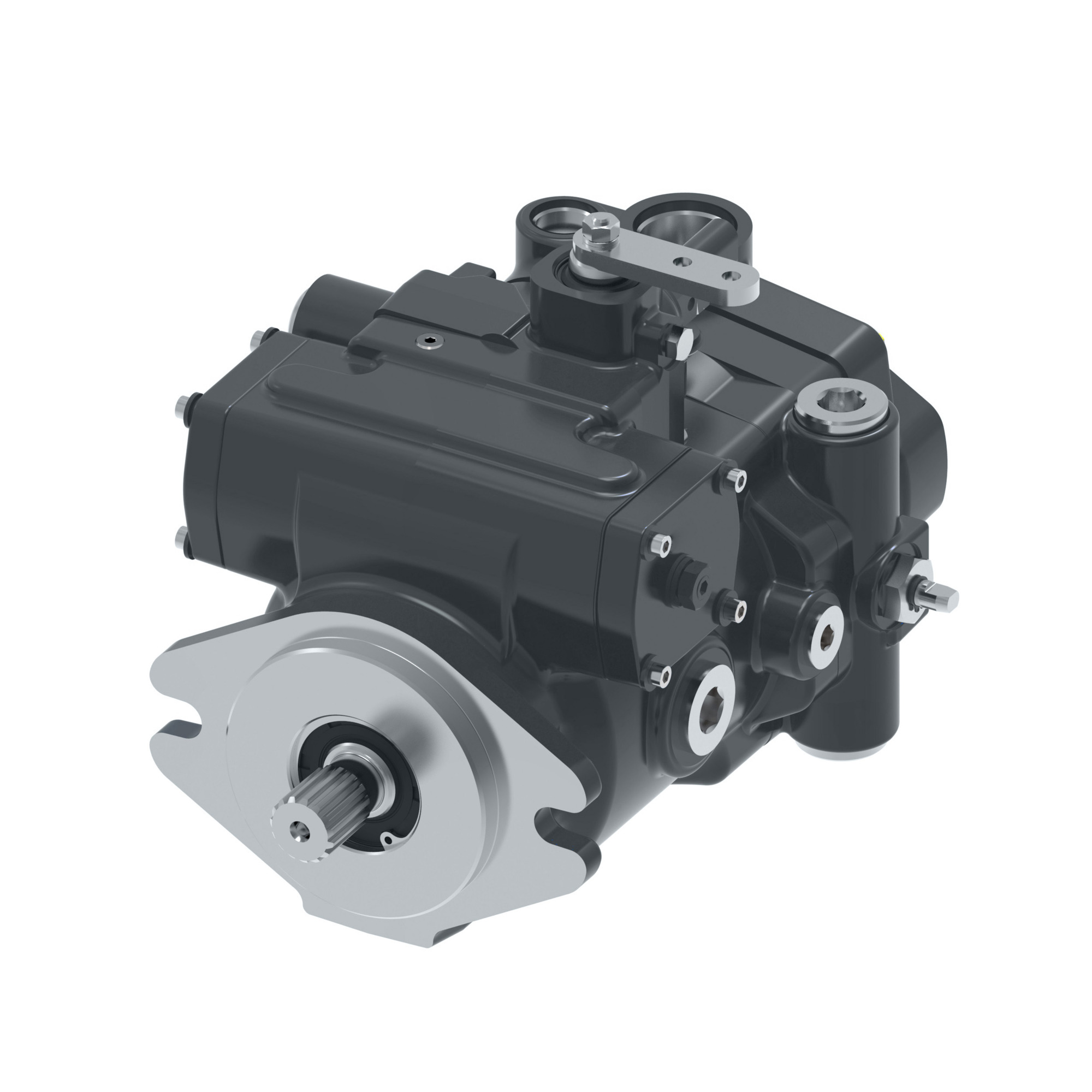

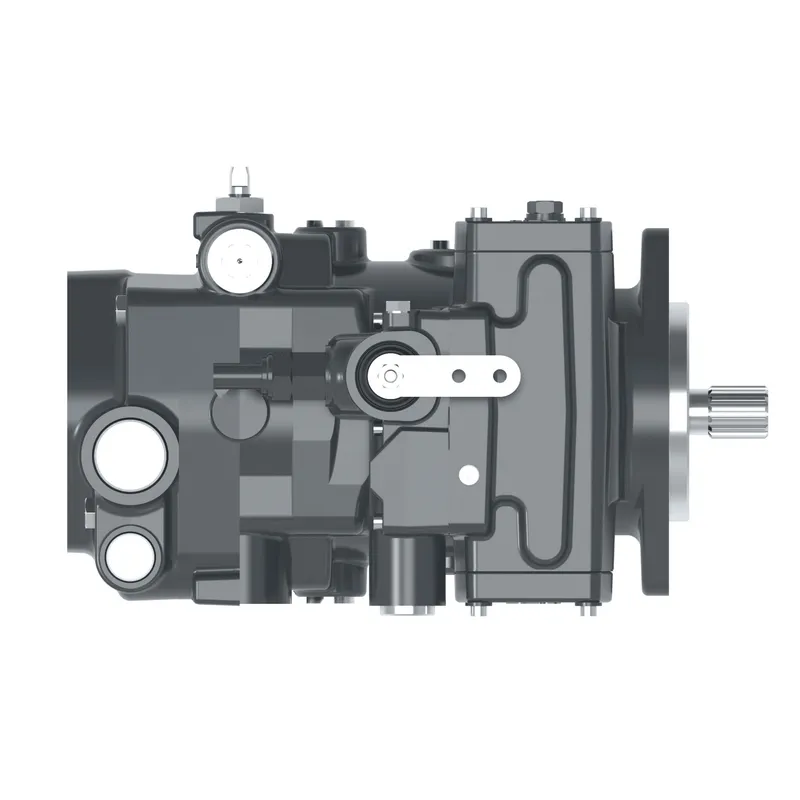

PUMP-VAR DISP, 72400PV41 CW, AADRAAA13EE1LLAM00A000A000D

Name: Danfoss 72400-RMP-04 – PUMP-VAR DISP, 72400PV41 CW, AADRAAA13EE1LLAM00A000A000D
Brand: Danfoss (Drives)
SKU: 72400-RMP-04

MPN: 72400-RMP-04 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mobile closed-circuit piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 72400-RMP-04 be shipped?

72400-RMP-04 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 72400-RMP-04 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 72400-RMP-04 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72400-RMP-04, subject to availability and destination.

Danfoss PUMP-VAR DISP, 72400PV41 CW, AADRAAA13EE1LLAM00A000A000D, manufacturer part number 72400-RMP-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional functions	Bypass valve
Aux mounting features rear	[2-BOLT A] SAE flange series 82-2
Aux port size and location	.750-16 UNF-2B SAE o-ring port - left (C1) & right(C2) sides (housing), both sides plugged
Brand	Danfoss
Charge pump	6.9 cm3/r [.42 in3/r] with 1.3125-12 UN-2B SAE o-ring port for suction inlet (S)
CODE TITLE	40.6 cm3/r [2.48 in3/r] servo controlled variabledisplacement pump
Control assembly	Manual Control, no additional features
Control servo orf S1 and S2	No control servo orifice
Control supply orifice P	Diameter 0.71 [.028]
CPRV setting and routing	17.24-20.68 bar [250-300 lbf/in2] relieved to case
Design code	D
Destroke valve	Not required
Drain port size and location	1.0625-12 UN-2B SAE o-ring port - left (D1) & right (D2) sides, left side plugged; thru drain into rear auxiliary flange (D3)
Flow rate gpm	38.6
Flow rate lpm	146.3
Identification	Standard
Input shaft	15 tooth 16/32 external, diameter 24.98 [.984], shaft extension 46 [1.81]
Input shaft rotation	Right hand rotation (ccw)
Main port size and location	1.3125-12 UN-2B SAE o-ring port (A & B) - right side
Maximum output speed	3600
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	AADRAAA13EE1LLAM00A000A000D
Mounting Flange	2-bolt-B
Output shaft	9 tooth 16/32 internal, diameter 15.88 [.625], accepts shaft extension 31.8 [1.25]
Output torque lbf-in2	1381.5
Output torque Nm	156.1
Paint	Primer per spec 209-13A
Product height in	8.850
Product height mm	224.790
Product length in	12.630
Product length mm	320.802
Product width in	8.530
Relief vlv set for main port A	241.3 bar [3500 lbf/in2]
Relief vlv set for main port B	241.3 bar [3500 lbf/in2]
Special control options	No special control options
Special features	No special features
Working pressure bar	241
Working pressure psi	3500
