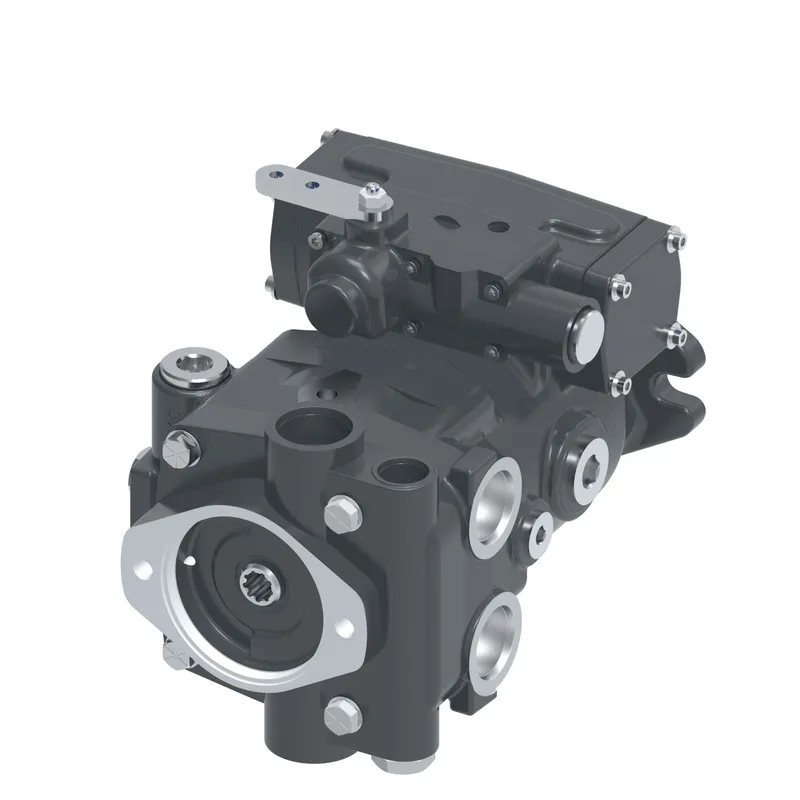

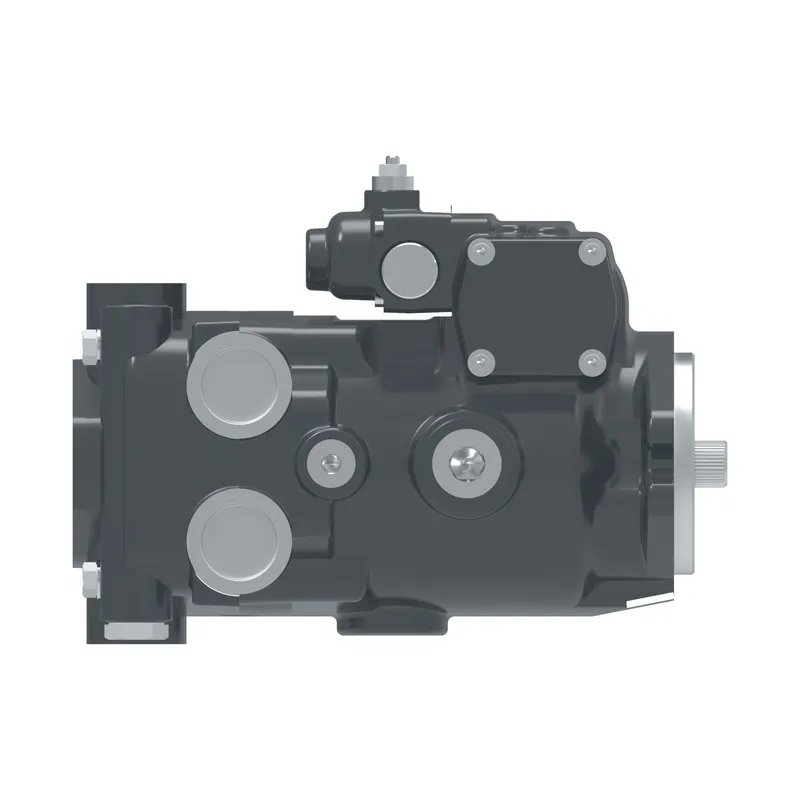

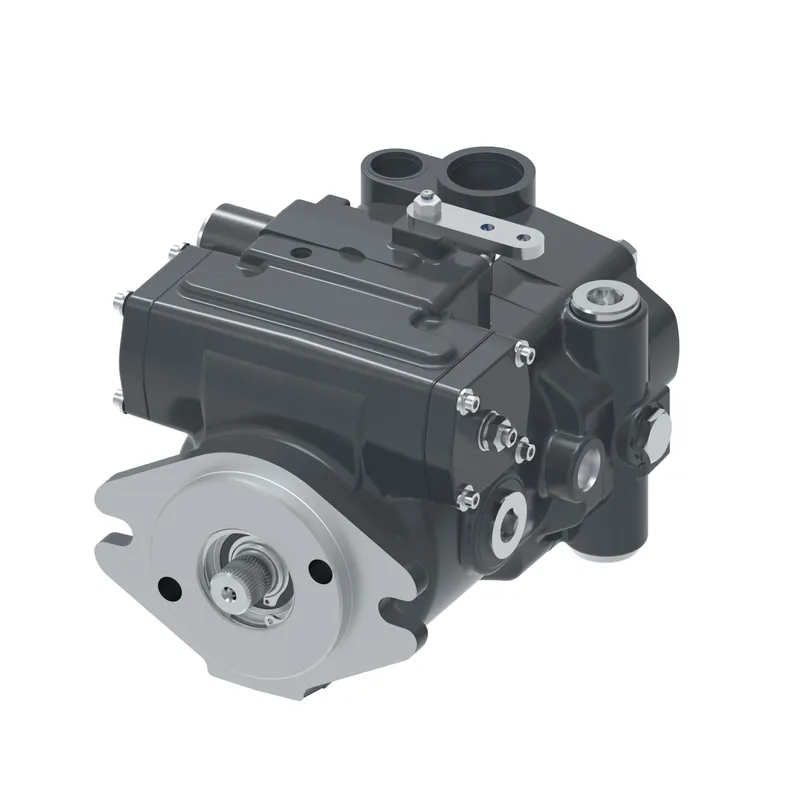

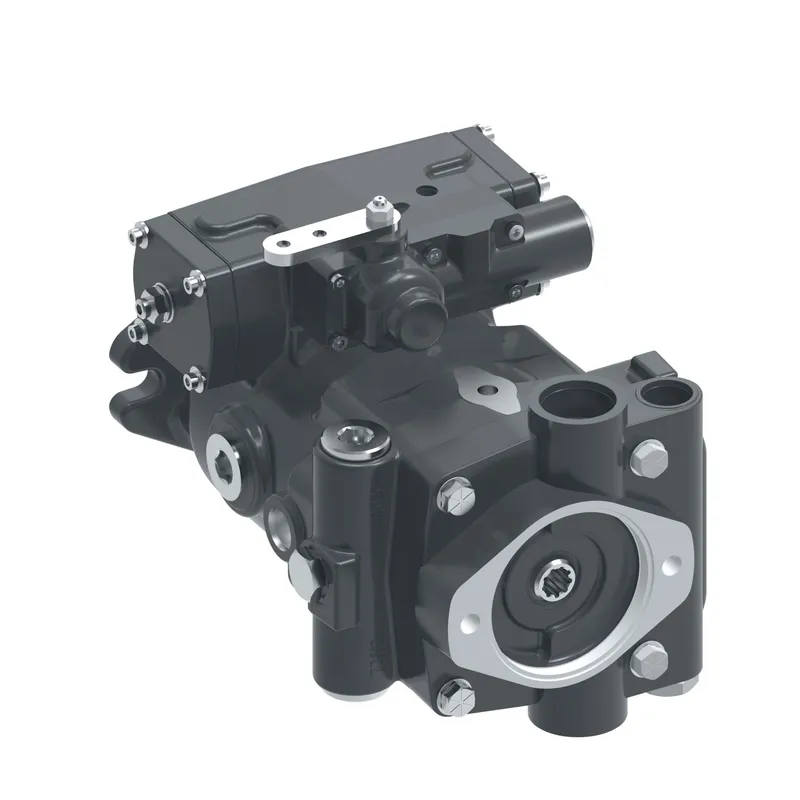

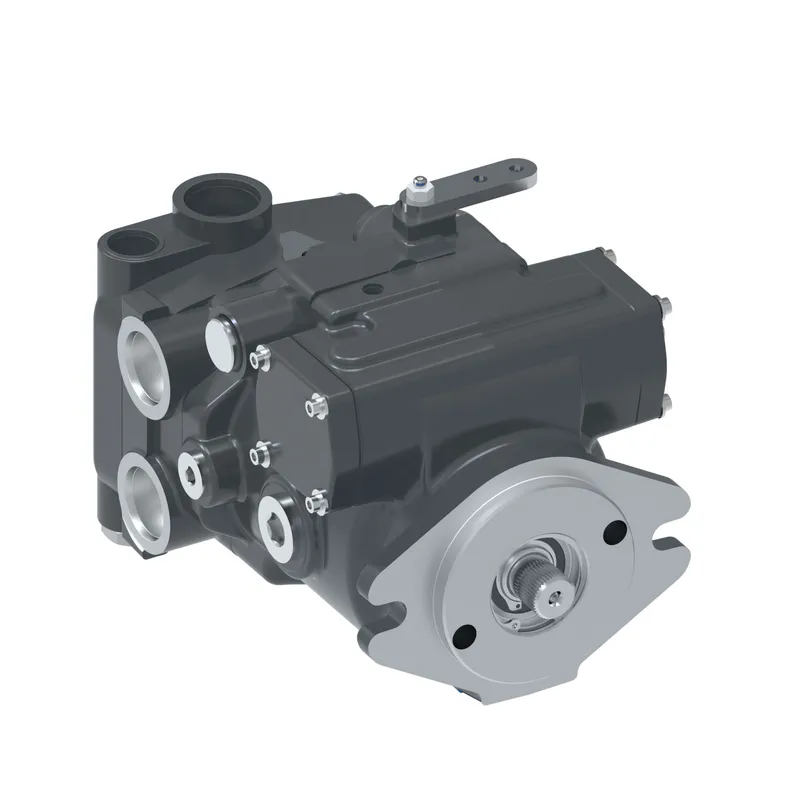

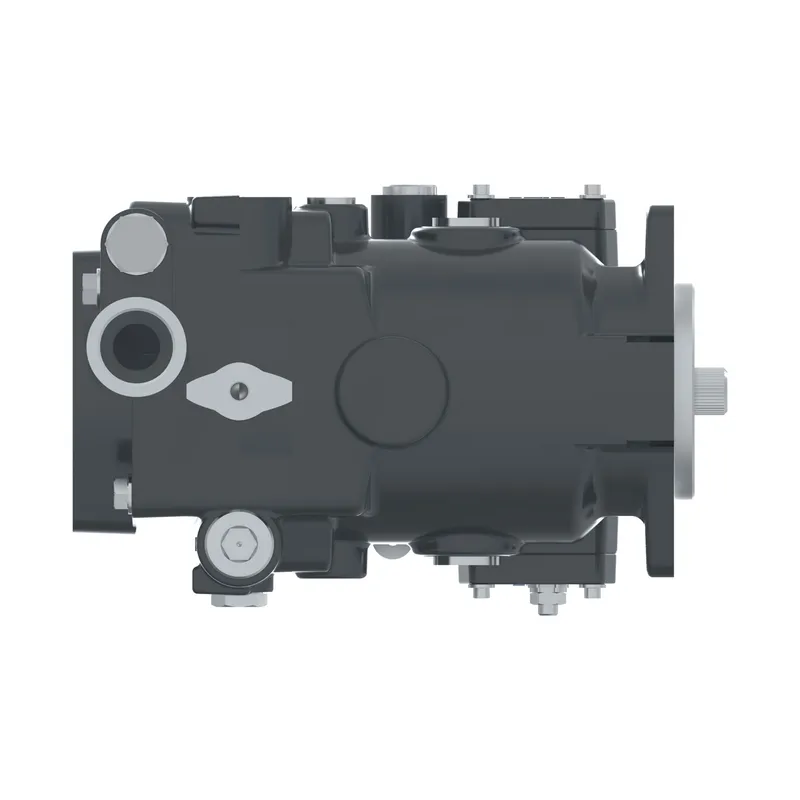

Danfoss 72400-RFC-04

2.48 CID Servo Controlle, AAFRBFE23DS2TT0MA0C000V000D

MPN: 72400-RFC-04
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 72400-RFC-04?

Danfoss 2.48 CID Servo Controlle, AAFRBFE23DS2TT0MA0C000V000D, manufacturer part number 72400-RFC-04. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional functions	No additional functions
Aux mount features (rear)	[2-bolt A] SAE flange series 82-2, with mounting holes
Auxiliary port size & location	.750-16 UNF-2B SAE o-ring port - left (C1) & right (C2) sides (housing), left side plugged
Brand	Danfoss
Charge pump	13.8 cm3/r [.84 in3/r] with 1.3125-12 UN-2B SAE o-ring port for suction inlet (S)
CODE TITLE	40.6 cm3/r [2.48 in3/r] servo controlled variable displacement pump (rear tandem)
Control assembly	Manual control, wide band neutral, neutral lockout switch
Control servo orifice S1 & S2	No control supply orifice
Control supply orifice (P)	Dia 0.91 [.036]
CPRV setting & routing	17.24-20.68 bar [250-300 lbf/in2] relieved to case
Design code	D
Destroke valve	Not required
Drain port size & location	1.0625-12 UN-2B SAE o-ring port - left (D1) & right (D2) sides, right & left sides plugged, thru drain into front mount (D4)
Flow rate gpm	38.6
Flow rate lpm	146.3
Identification	Standard
Input shaft	41 tooth 48/96 ext, dia 22.22 [.875], shaft ext 24.4 [.96]
Input shaft rotation	Right hand rotation (cw)
Main ports size & location	1.3125-12 UN-2B SAE o-ring port (A & B) - left side
Maximum output speed	3600
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	AAFRBFE23DS2TT0MA0C000V000D
Mounting flange	2-bolt-B
Note	For more info, contact Danfoss
Output shaft	11 tooth 16/32 internal dia 19.33 [.761], accepts shaft ext 31.8 [1.25]
Output torque lbf-in2	1973.5
Output torque Nm	223.0
Paint	Red per spec 209-13V
Product height in	8.850
Product height mm	224.790
Product length in	11.780
Product length mm	299.212
Product width in	8.020
Relief valve setting port A	344.7 bar [5000 lbf/in2]
Relief valve setting port B	344.7 bar [5000 lbf/in2]
Special control options	No special control options
Special features	No special features
Working pressure bar	345
Working pressure psi	5000
