Danfoss 71X3

ADPT COMP TEE BRASS ASSY-3Tx1/8MPx-3T

MPN: 71X3
Category: Adapters and swivel joints

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

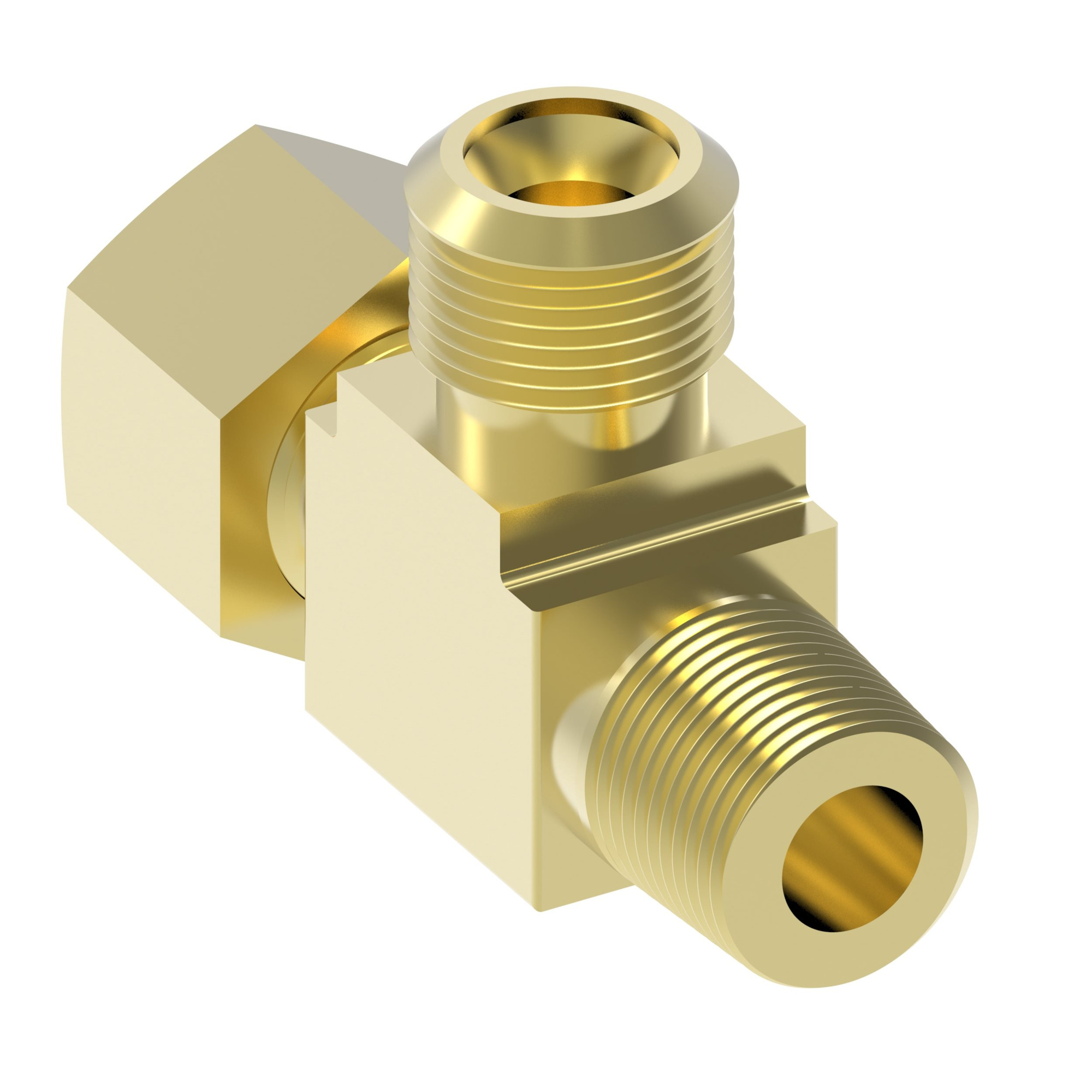

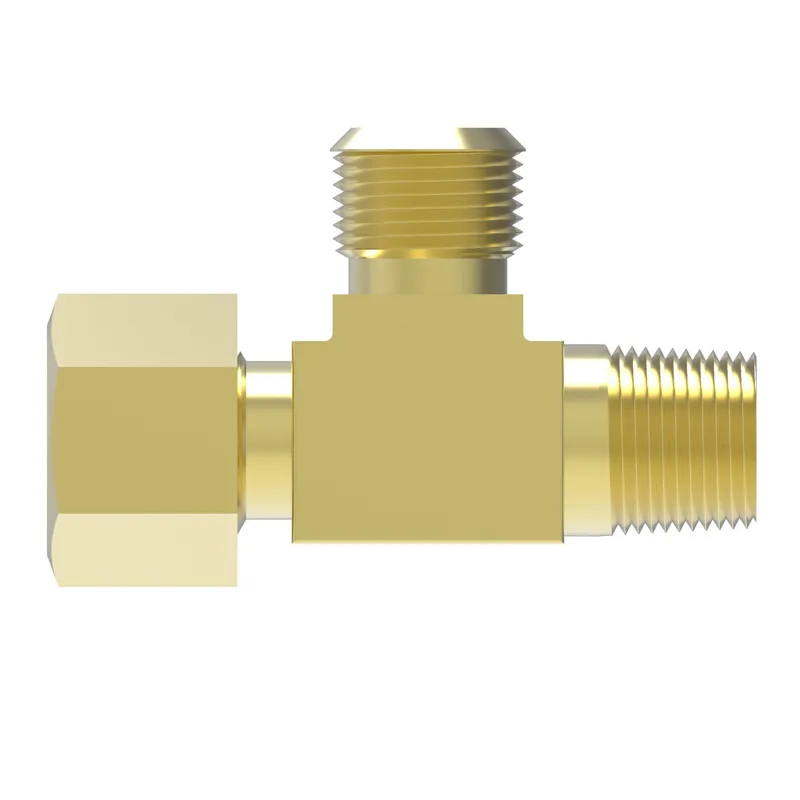

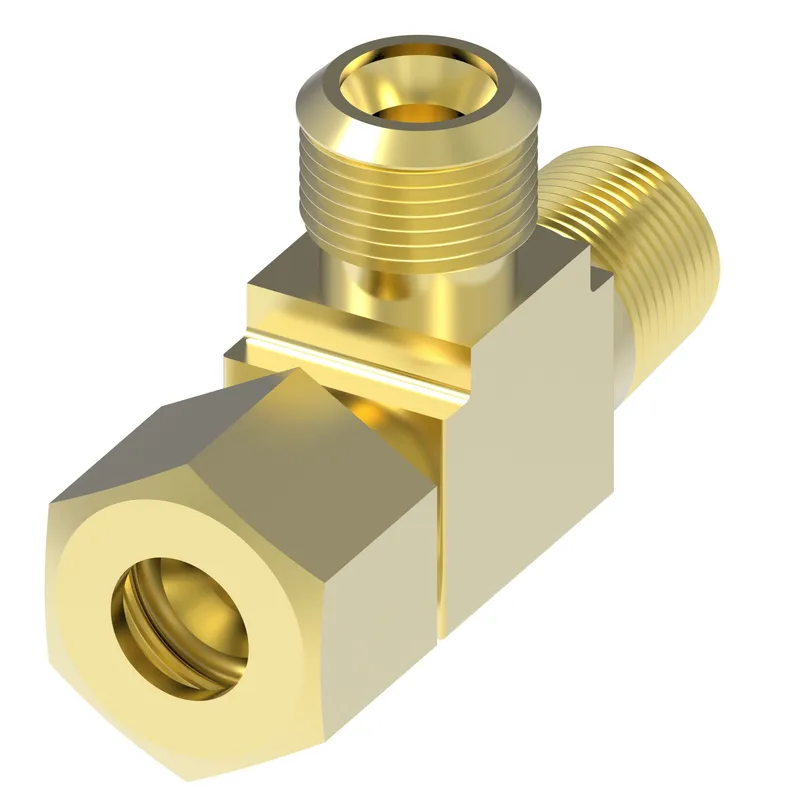

What is the Danfoss 71X3?

Danfoss ADPT COMP TEE BRASS ASSY-3Tx1/8MPx-3T, manufacturer part number 71X3. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	725975730065
Brand	Danfoss
End Type 1	Line/hose/tube
End Type 2	Line/hose/tube
End type 3	Male pipe (NPTF)
Finish plating	Nickel plating
Hex size 2 IN	0.500
Hex size 2 MM	12.700
Item type	Adapter-tee
Product material	Brass
Thread sealant	No
Tube outside diameter 1 IN	0.190
Tube outside diameter 1 MM	4.8
Tube outside diameter 2 IN	0.210
Tube outside diameter 2 MM	5.3
Tube outside diameter 3 IN	0.190
Tube outside diameter 3 MM	4.8
Working temp max C	121
Working temp max F	250
Working temp min C	-54
Working temp min F	-65

71X3: frequently asked questions

When can 71X3 be shipped?

71X3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 71X3 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 71X3 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 71X3, subject to availability and destination.
