Danfoss 71011-14-08Z

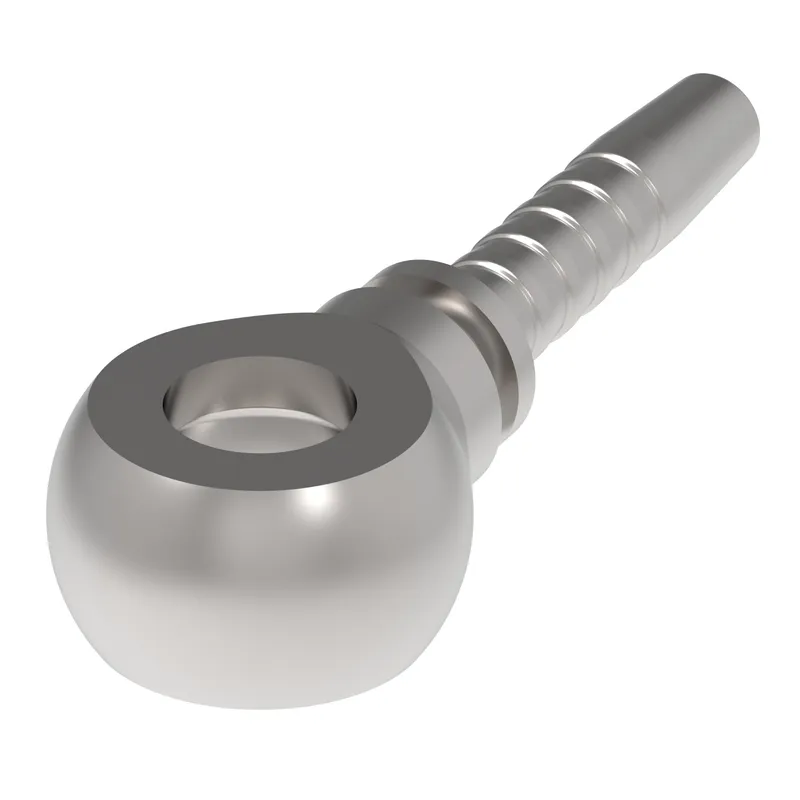

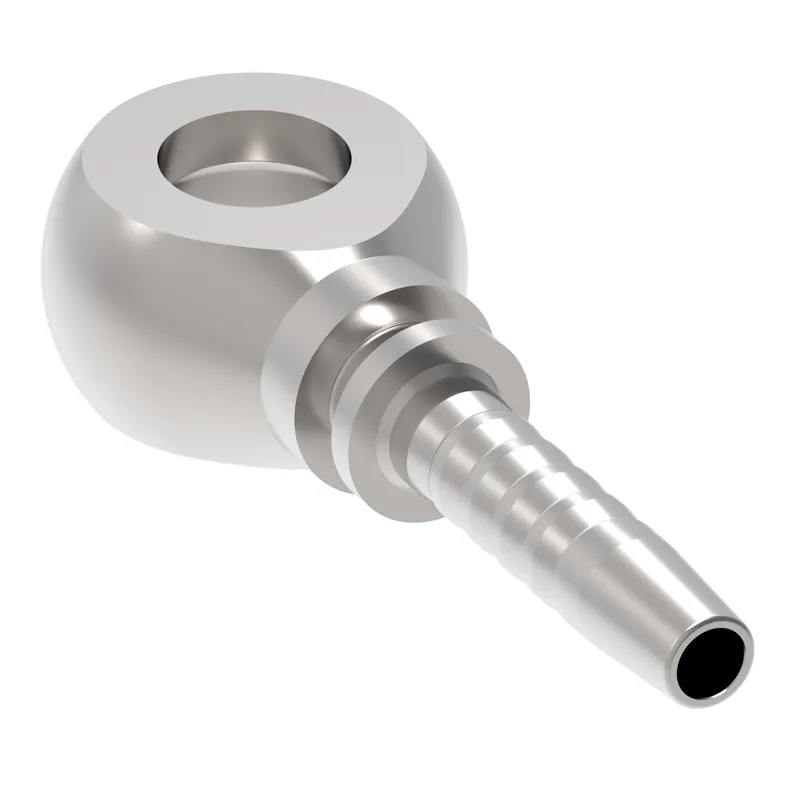

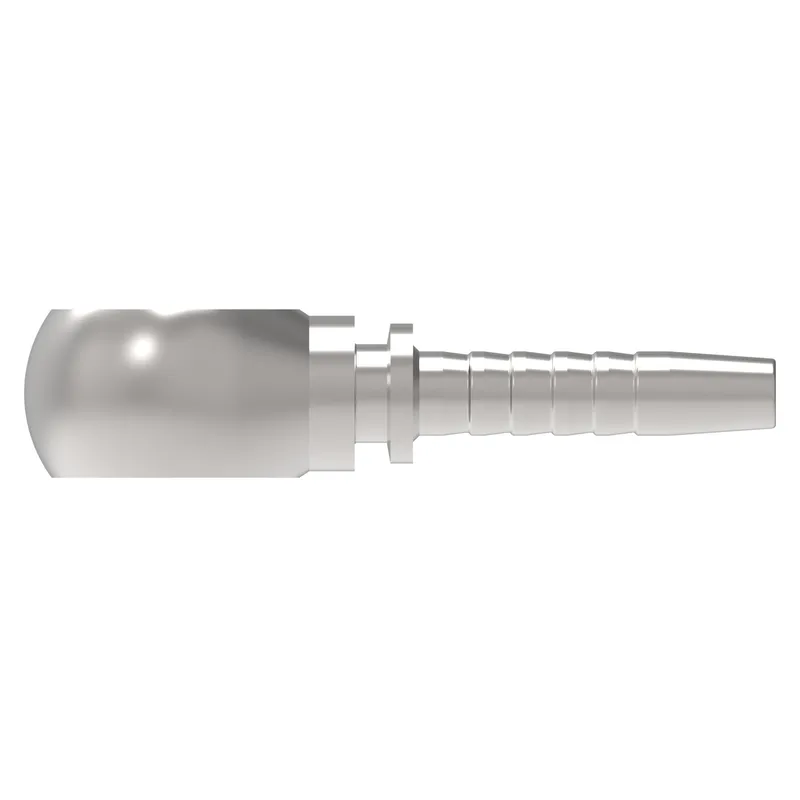

HOSE NIPPLE ASSY,2P/08,BANJO/14,CS,STR

MPN
71011-14-08Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 71011-14-08Z?

Danfoss HOSE NIPPLE ASSY,2P/08,BANJO/14,CS,STR, manufacturer part number 71011-14-08Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.125
A dimension MM54.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.500
Compatible hose ID MM12.700
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
End size 1-10
End size 2-8
End Type 1Banjo DIN 7642 Form B, L.D.
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN0.885
Hose cut off factor MM22.500
Hose size-8
Inside diameter IN0.393
Inside diameter MM10.000
Product height in0.709
Product height mm18.001
Product length in2.126
Product length mm54.000
Product materialCarbon steel
Product width in1.102
Product width mm28.001
Thread sealantNo
Thread size 1M14x1.5
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

71011-14-08Z: frequently asked questions

When can 71011-14-08Z be shipped?

71011-14-08Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 71011-14-08Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 71011-14-08Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 71011-14-08Z, subject to availability and destination.
