Danfoss 702603

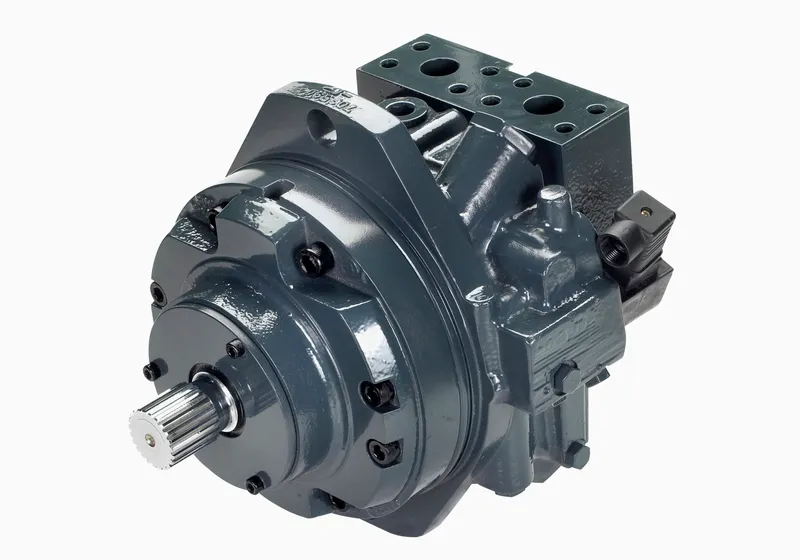

PUMP-VAR-DISPL CCW 90PV130

MPN: 702603
Category: Mobile closed-circuit piston pumps

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 702603?

Danfoss PUMP-VAR-DISPL CCW 90PV130, manufacturer part number 702603. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

F: DISPLACEMENT LIMITATION	No Limiters
G: ENDCAP PORTS	twin ports
H: CHARGING SYSTEM	26 cc/rev
J: AUXILARY MOUNTING PAD	SAE-C with 14 T coupling, 4 bolt adapter,(2) ½-13 UNC tapped holes for support of pump
K: CHARGE PRESSURE SETTING	24 bar
L: INPUT SHAFT	13T 8/16 Pitch
M: CONTROL	weather-pack connector,standard. porting, dual coil (14 - 85 mA)
M: CONTROLS	weather-pack connector,standard. porting, dual coil (14 - 85 mA)
N: FILTRATION	Remote filtration
P: HIGH PRESSURE REGULATION	Port A & B: low overshoot PL, 420 to 520 bar settings
Proposition 65	Cancer and Reproductive Harm
SERIES 90 PUMP TYPE	Series 90 130cc/rev counter-clockwise rotation
T: CONTROL ORIFICES	EDC 1 & 3, EFPC (P) 0,81 (TA) 1,3* (TB) 1,3* (A) none (B) none
W: SPECIAL HARDWARE FEATURES	CP15 +0.5 VALVE PLATE
Y: HIGH PRESSURE SETTING A	350 Bar
Z: HIGH PRESSURE SETTING B	450 Bar
