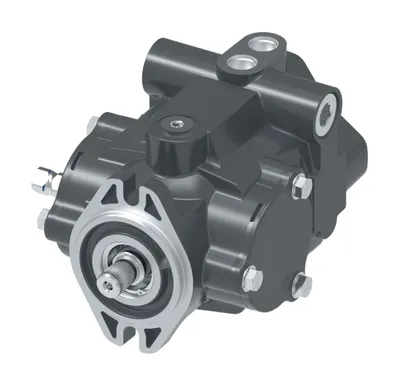

PUMP-VAR DISP, 70160PV20 CCW, ADB12L2FLA11EE1A0AAA020A00000B0C

Name: Danfoss 70160-LCU-03 – PUMP-VAR DISP, 70160PV20 CCW, ADB12L2FLA11EE1A0AAA020A00000B0C
Brand: Danfoss (Drives)
SKU: 70160-LCU-03

MPN: 70160-LCU-03 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mobile closed-circuit piston pumps
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 70160-LCU-03 be shipped?

70160-LCU-03 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 70160-LCU-03 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 70160-LCU-03 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 70160-LCU-03, subject to availability and destination.

Danfoss PUMP-VAR DISP, 70160PV20 CCW, ADB12L2FLA11EE1A0AAA020A00000B0C, manufacturer part number 70160-LCU-03. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional functions	No additional functions
Aux mount and output shaft	With integral charge: horizontal SAE J744 flange 82-2 and output shaft (2 bolt A); 9 tooth internal 16/32 pitch spline with 31.7[1.25] shaft extension
Aux port side C4 or C5 CHG	No auxiliary port
Aux port top front C1 or BPV	No auxiliary port or bypass valve
Auxiliary port top-rear C2	.750-16 UNF-2B SAE o-ring port plugged
Brand	Danfoss
Case drain D1 and D2	.750-16 UNF-2B SAE o-ring port D1-top (D2- bottom plugged)
Charge disp and suction port S	6.9 cm3/r [.42 in3/r]; (.750-16 UNF-2B SAE o-ring port for suction inlet - right side ccw, left side cw)
Charge special feature	No special charge feature
CODE TITLE	Medium duty manually variable displacement axial piston pump with SAE J744 flange 82-2 (2 bolt A)
Control shaft	With thru cross hole diameter 6.35 [.250], arm diameter 17.32 [.682]; 113 [4.45] from unit centerline to control shaft end
Control shaft location	Left side
CPRV setting and routing	6.89-10.34 bar [100-150 lbf/in2] relieved to case
Design code	Design code C
Displacement	20.3 cm3/r [1.24 in3/r]
Flow rate gpm	19.3
Flow rate lpm	73.2
Identification	Eaton identification label
Input shaft	Straight, 22.212 [.8745] diameter, 6.35 [.250] W X 25.9 [1.02] L key (key included); 41.3 [1.62] shaft extension
Input shaft rotation	Lefthand rotation (ccw)
Main port location A and B	Opposite sides
Main port size A and B	1.0625-12 UN-2B SAE o-ring ports
Maximum output speed	3600
Maximum temperature C	107.00
Maximum temperature F	225.00
Model Code 1	ADB12L2FLA11EE1A0AAA020A00000B
Model Code 2	0C
Mounting Flange	2-bolt-A
Note	For additional application details contact Danfoss Representative
Output torque lbf*in	493.4
Output torque n*m	55.7
Paint	Black per spec 209-13B
Product height in	6.290
Product height mm	159.766
Product length in	10.080
Product length mm	256.032
Product width in	8.900
Rel_valve_set_main_port_A	RVS A, 2500 psi (172.4 bar)
Rel_valve_set_main_port_B	RVS B, 2500 psi (172.4 bar)
Special features	No special features
Special features aux mounting	Supply cover plate for SAE J744 flange 82-2 (2 bolt A)
Thru drain front D4	No thru drain (d4)-front
Valve plate	Valve plate - type 2
Working pressure bar	172
Working pressure psi	2500
