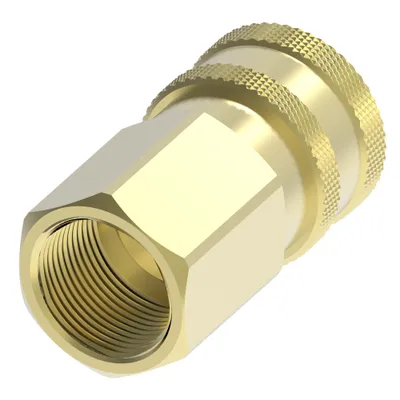

Danfoss 6S31BS

COUPLING,ST,F,3/4,B,-12BSP,NBR

MPN: 6S31BS
Category: Danfoss Hansen® quick disconnect couplings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 6S31BS?

Danfoss COUPLING,ST,F,3/4,B,-12BSP,NBR, manufacturer part number 6S31BS. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146104816
Angle shape	Straight
Application	Chemical, Fluid transfer, Food and beverage, Injection moulding, Marine, Medical, Pressure washing, Steam cleaning
Body size	3/4
Burst pressure min psi	6800
Connection style	Manual connect
End size 1	-12
End type 1	Female BSPP port washer seal.
Flow rate GPM	66.00
Fluid compatibility	Versatile fluid
Hex size 1 IN	1.440
Item type	Female half
Latch type	Push to connect
Product length in	2.060
Product material	Brass
Safety locking mechanism	None
Seal material	Nitrile (NBR)
Thread size 1	G 3/4
Valve type	Straight thru
Working pressure max psi	1700
Working temperature max F	250
Working temperature min F	-40
